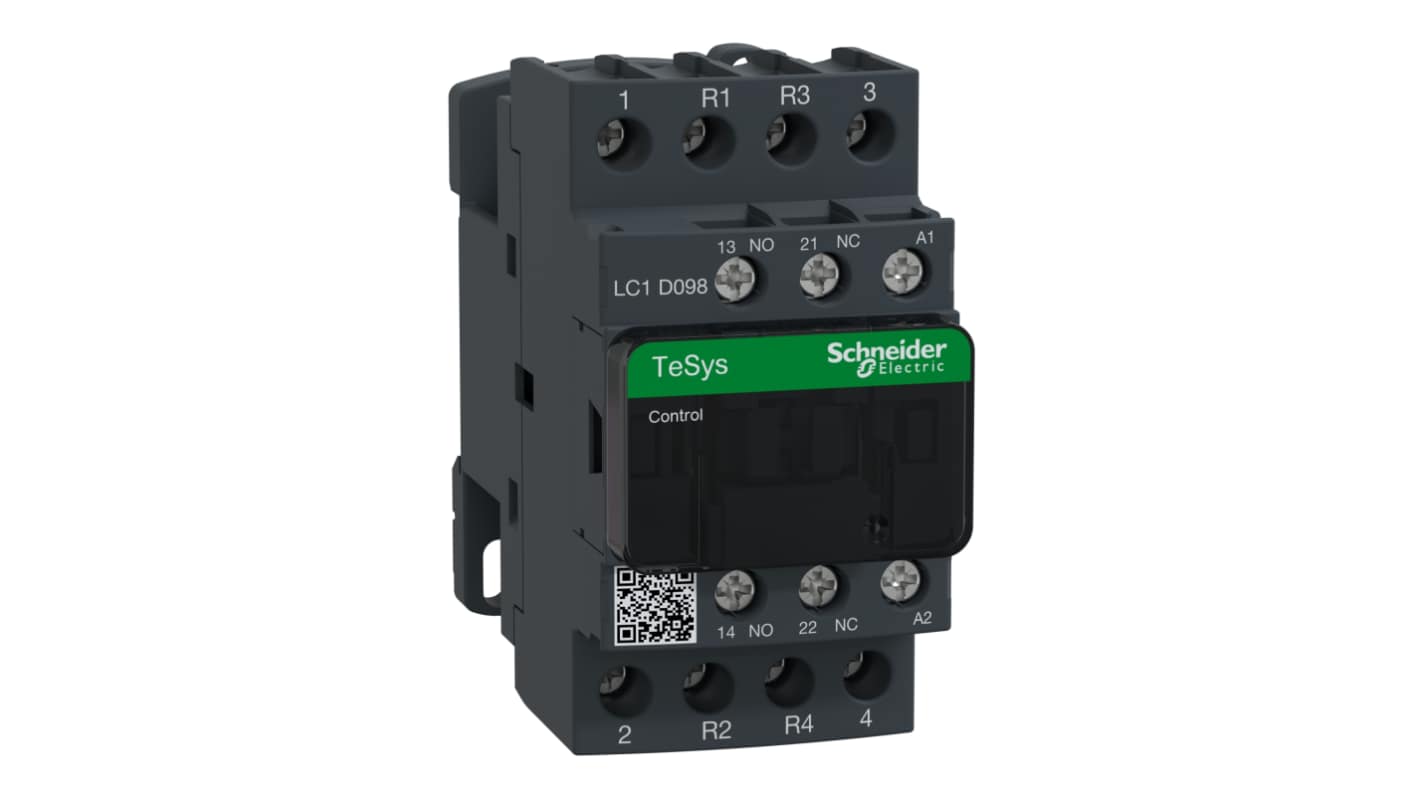

Schneider Electric Tesys D LC1D 4 Pole Contactor, 2NO/2NC, 20 A, 230 V ac Coil

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

4 Pole Contactors AC Controlled

Utilisation category AC1
Auxiliary contact configuration one N/O, one N/C
Width of LC1D contactors is 45mm
Closing time of LC1D series is 12-22ms, opening time is 4-19ms
These contactors must not be used with TeSys overload relays, interconnection units or GV2 circuit breakers

Approvals

UL and CSA

Specifications
Attribute Value
Coil Voltage 230 V ac
Number of Poles 4
Contact Current Rating 20 A
Range TeSys D
Series LC1D
Normal State Configuration 2NO/2NC
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 2
Terminal Type Screw
Width 45mm
Minimum Operating Temperature -5°C
Depth 90mm
Maximum Operating Temperature +60°C
Length 85mm
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 223.52
units
Per unit
1 +
MYR223.52
