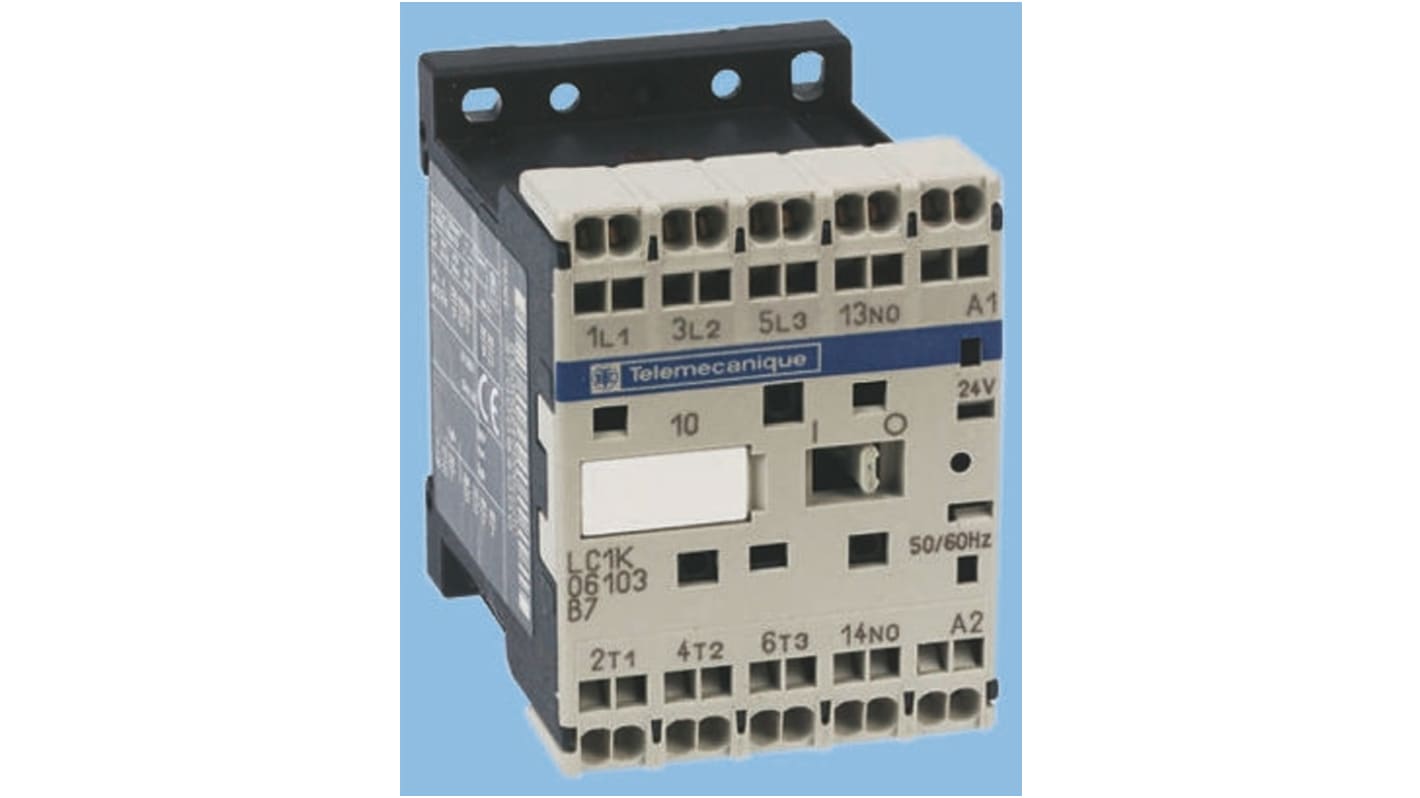

Schneider Electric TeSys K LC1K 3 Pole Contactor, 3NO, 9 A, 4 kW, 230 V ac Coil

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Mini-Contactors Series LC1K and LP1K with Spring Terminals

Mini-contactors 6, 9 and 12A, three-pole + 1 N/O, K series with spring terminal connection.
The electrical characteristics are identical to the LC1K and LP1K mini-contactors with screw terminal connection.
Easy to wire using a simple screwdriver.
Improved resistance to vibrations and temperature changes.
DIN rail or 4mm diameter screw fitting.
Can be used with GV-2 series motor circuit breakers.

Approvals

IEC947-4, EN60947-4-1

Specifications
Attribute Value
Coil Voltage 230 V ac
Number of Poles 3
Contact Current Rating 9 A
Power Rating 4 kW
Range TeSys K
Series LC1K
Normal State Configuration 3NO
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 1
Terminal Type Cage Clamp
Maximum Operating Temperature +50°C
Width 45mm
Length 58mm
Depth 57mm
Minimum Operating Temperature -25°C
1 Within 4 working day(s) (Global stock)
1 Within 4 working day(s) (Global stock)
Price Each
MYR 184.84
units
Per unit
1 +
MYR184.84
