Schneider Electric GC40 Series Contactor, 230 V ac Coil, 4-Pole, 40 A, 4NO, 415 V ac
- RS Stock No.:
- 243-9860
- Mfr. Part No.:
- GC4040M5
- Manufacturer:
- Schneider Electric
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR566.38
You pay
MYR538.06
| Units | Per Unit |
| 1 + | MYR538.06 |
- RS Stock No.:
- 243-9860
- Mfr. Part No.:
- GC4040M5
- Manufacturer:
- Schneider Electric
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

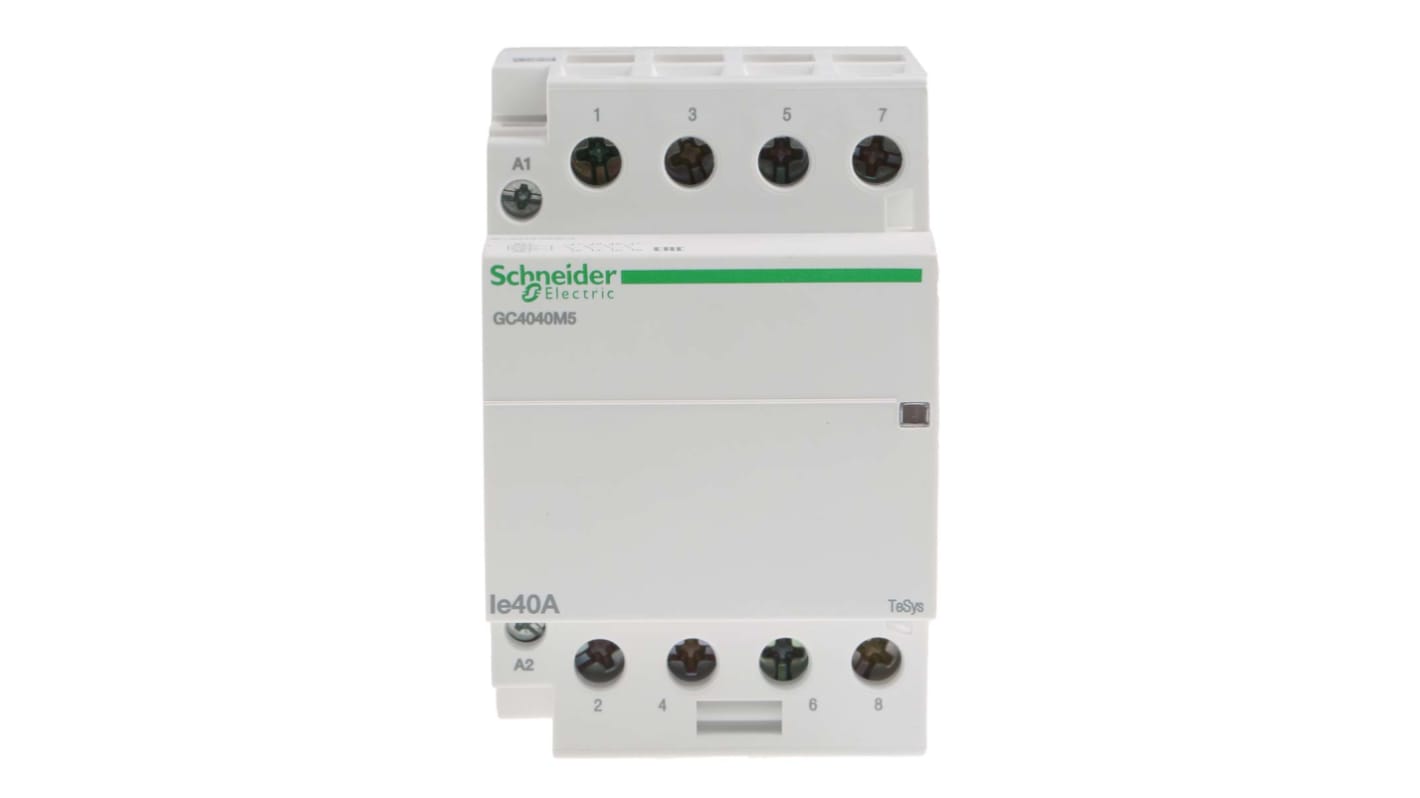

Schneider Electric GC4040M5 Miniature Contactor
The GC4040M5 is a miniature 4 pole contactor featuring a 240 V ac operating coil and an AC-3 full load current of 40 A.
Features & Benefits
• 4kV rated to handle sudden power surges
• Wide operating temperature range of -5°C to +55°C for use in demanding environments
• Remote-control compatible for convenient operation
• Mechanical service life of 1,000,000 cycles for long-term performance
• Ingress protection rating of IP40 to withstand dust and objects larger than 1mm
• Wide operating temperature range of -5°C to +55°C for use in demanding environments
• Remote-control compatible for convenient operation
• Mechanical service life of 1,000,000 cycles for long-term performance
• Ingress protection rating of IP40 to withstand dust and objects larger than 1mm
Applications
• Domestic appliances
• Mixers
• Pumps
• Mixers
• Pumps
What's an AC-7A duty contactor?
An AC-7A (alternating current) duty contactor like this one is designed to handle small household inductive loads such as televisions and vacuum cleaners.
Schneider Electric Modular Contactors
Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Voltage Rating | 415 V ac |
| Contact Current Rating | 40 A |
| Series | GC40 |
| Range | TeSys GC |
| Normal State Configuration | 4NO |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 52.5mm |
| Length | 81mm |
| Depth | 65mm |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +50°C |
