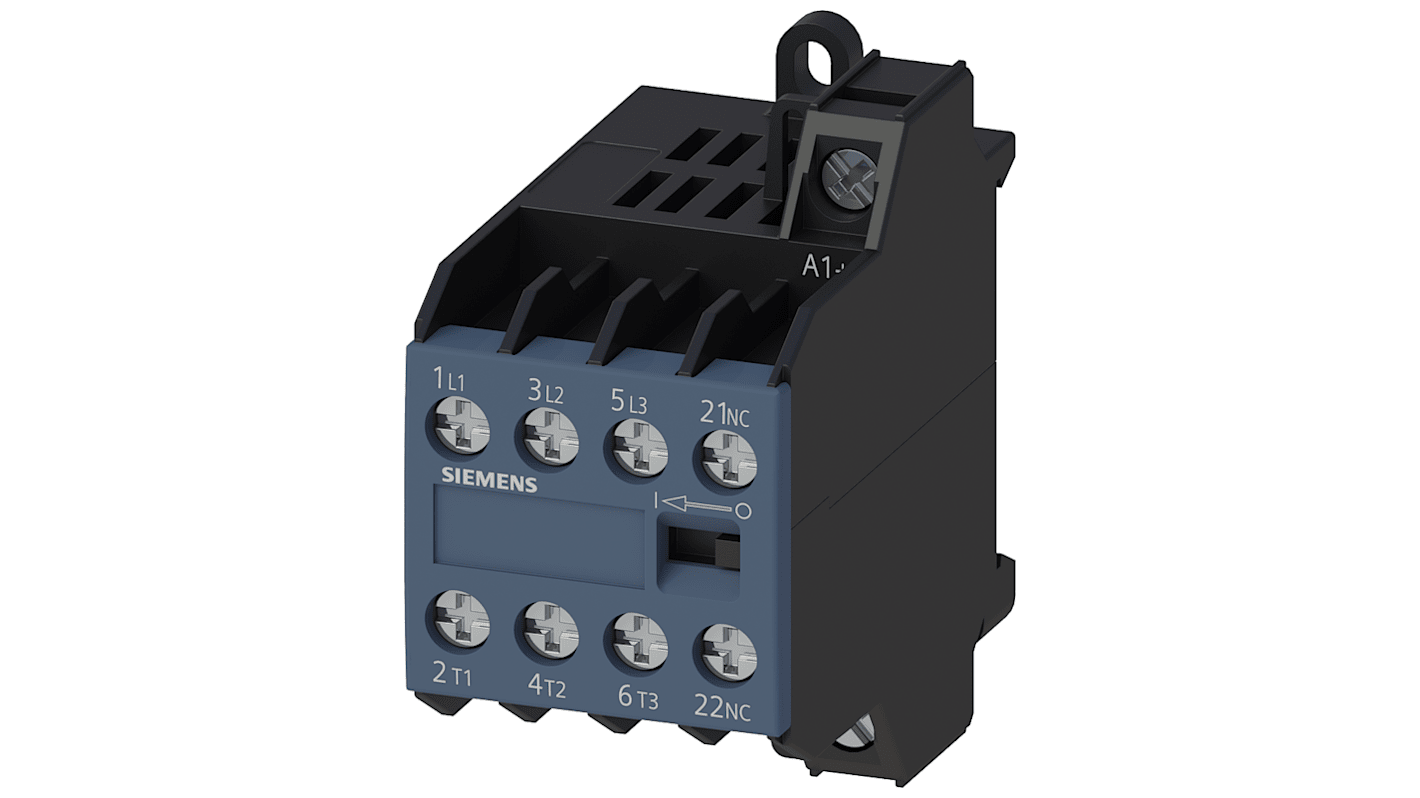

Siemens 4 Pole Contactor - 20 A, 230 V ac Coil, SIRIUS Innovation, 3NO/1NC, 4 kW

  • RS Stock No. 211-2458
  • Mfr. Part No. 3TG1001-0AL2
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TR
Product Details

Four-Pole Contactors - AC/DC Operation

Four main contacts and screw terminals, safe from touch access to VDE 0106 Part 100
Maximum switching current 20A @ 4kW ac/dc AC1 (20A), AC3 (8.4A)
Operating temperature range –25 to +55 °C
Hum-free construction
Compact design (62 x 36 x 59mm) (H x W x D) for DIN rail or surface mounting

Suitable for use in domestic appliances and for distribution in offices and residential buildings, can also be used in areas where space is restricted
Integrated surge protection device
Complete with coils rated at 230V 4W dc and 230V 4.4VA ac (hum free)

Standards

IEC947-4-1, DIN VDE 0660

Specifications
Attribute Value
Coil Voltage 230 V ac
Number of Poles 4
Contact Current Rating 20 A
Power Rating 4 kW
Range SIRIUS Innovation
Series 3TG1
Normal State Configuration 3NO/1NC
Contact Voltage Rating 400 V ac
Terminal Type Screw
Maximum Operating Temperature +55°C
Depth 60mm
Width 36mm
Length 62mm
Minimum Operating Temperature -25°C
33 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR162.64
MYR 160.95
units
Per unit
1 - 5
MYR160.95
6 - 11
MYR157.54
12 +
MYR153.76
