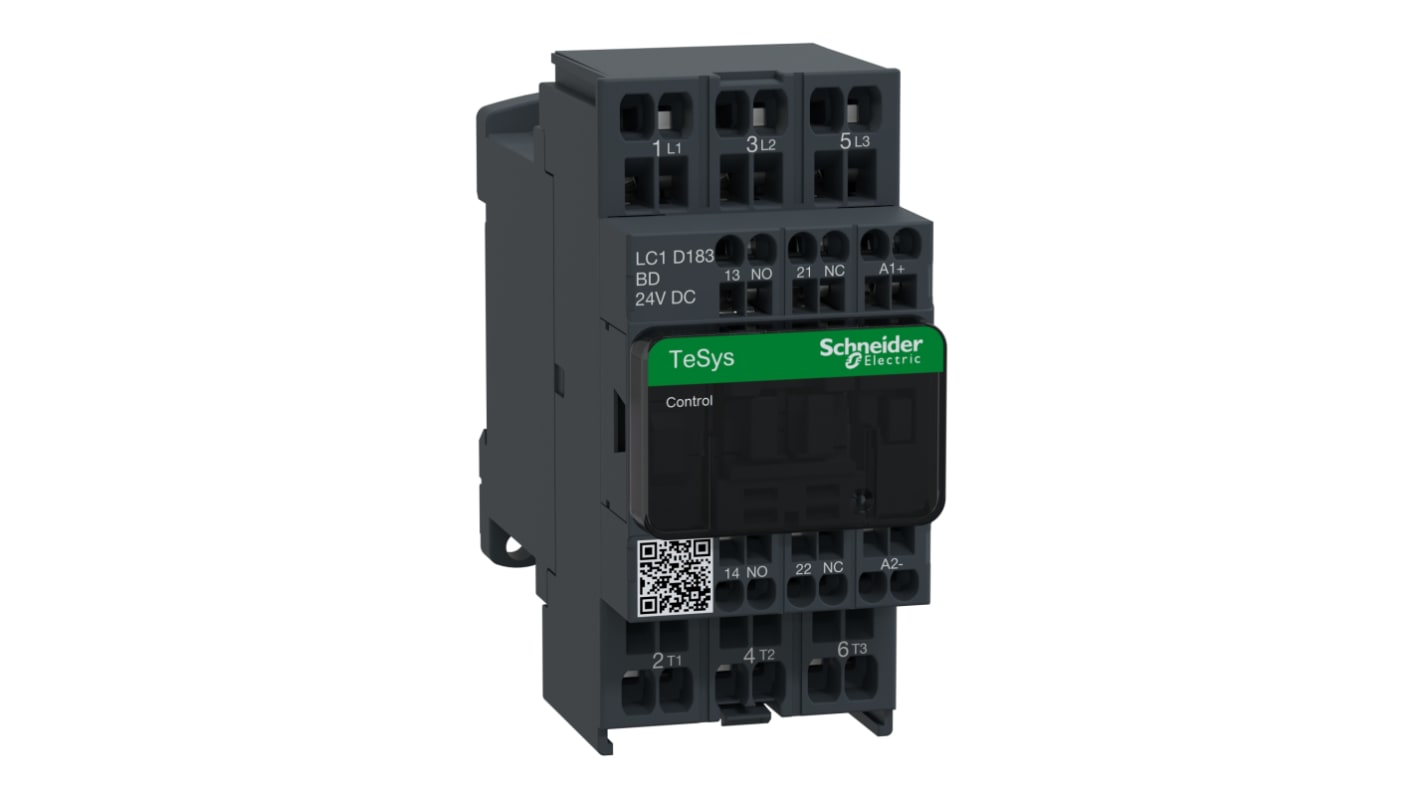

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 18 A, 7.5 kW, 24 V dc Coil

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): ID
Product Details

3 Pole Contactors, DC Controlled

Built-in coil suppression
3 N/O poles
Auxiliary contact configuration one N/O, one N/C
Operating time closing 12 to 22 ms
Operating time opening 4 to 19 ms

Note

Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts.

Approvals

UL and CSA

Specifications
Attribute Value
Coil Voltage 24 Vdc
Number of Poles 3
Contact Current Rating 25 A
Power Rating 7.5 kW
Range TeSys D
Series LC1D
Normal State Configuration 3 N/O
Contact Voltage Rating 690 Vac
Number Of Auxiliary Contacts 2
Terminal Type Cage Clamp
Maximum Operating Temperature +60°C
Length 99mm
Width 45mm
Minimum Operating Temperature -5°C
Depth 99mm
8 Within 4 working day(s) (Global stock)
2 Within 4 working day(s) (Global stock)
Price Each
MYR 459.90
units
Per unit
1 - 4
MYR459.90
5 - 9
MYR450.24
10 +
MYR445.82
