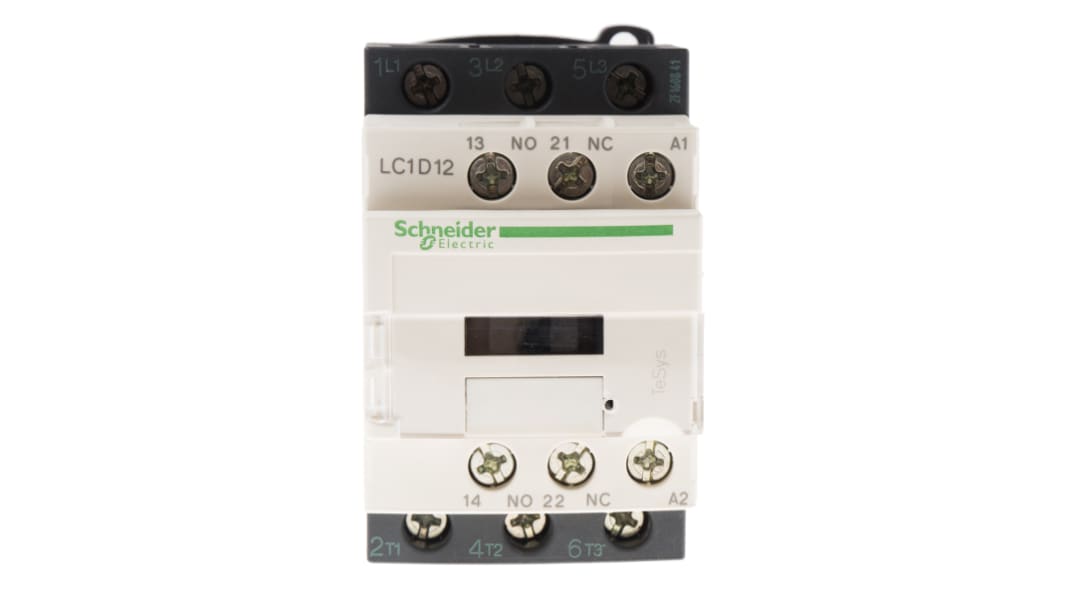

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 12 A, 5.5 kW, 400 V ac Coil

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

3 Pole Contactors, DC Controlled

Built-in coil suppression
3 N/O poles
Auxiliary contact configuration one N/O, one N/C
Operating time closing 12 to 22 ms
Operating time opening 4 to 19 ms

Note

Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts.

Approvals

UL and CSA

Specifications
Attribute Value
Coil Voltage 400 V ac
Number of Poles 3
Contact Current Rating 12 A
Power Rating 5.5 kW
Range TeSys D
Series LC1D
Normal State Configuration 3NO
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 2
Terminal Type Screw
Width 45mm
Length 77mm
Maximum Operating Temperature +60°C
Depth 84mm
Minimum Operating Temperature -5°C
6 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 180.52
units
Per unit
1 +
MYR180.52
