Flexicon Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black

RS Stock No.:: 880-8262
Mfr. Part No.:: FSU20B-50M
Manufacturer:: Flexicon

Flexicon Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black

8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price 1 Reel of 50 Metre(s)

MYR1,590.65

Reel(s)	Per Reel	Per Metre*
1 - 14	MYR1,590.65	MYR31.813
15 +	MYR1,557.25	MYR31.145
*price indicative

RS Stock No.:: 880-8262
Mfr. Part No.:: FSU20B-50M
Manufacturer:: Flexicon

Technical data sheets

Galvanised Steel Flexible Conduit Data Sheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

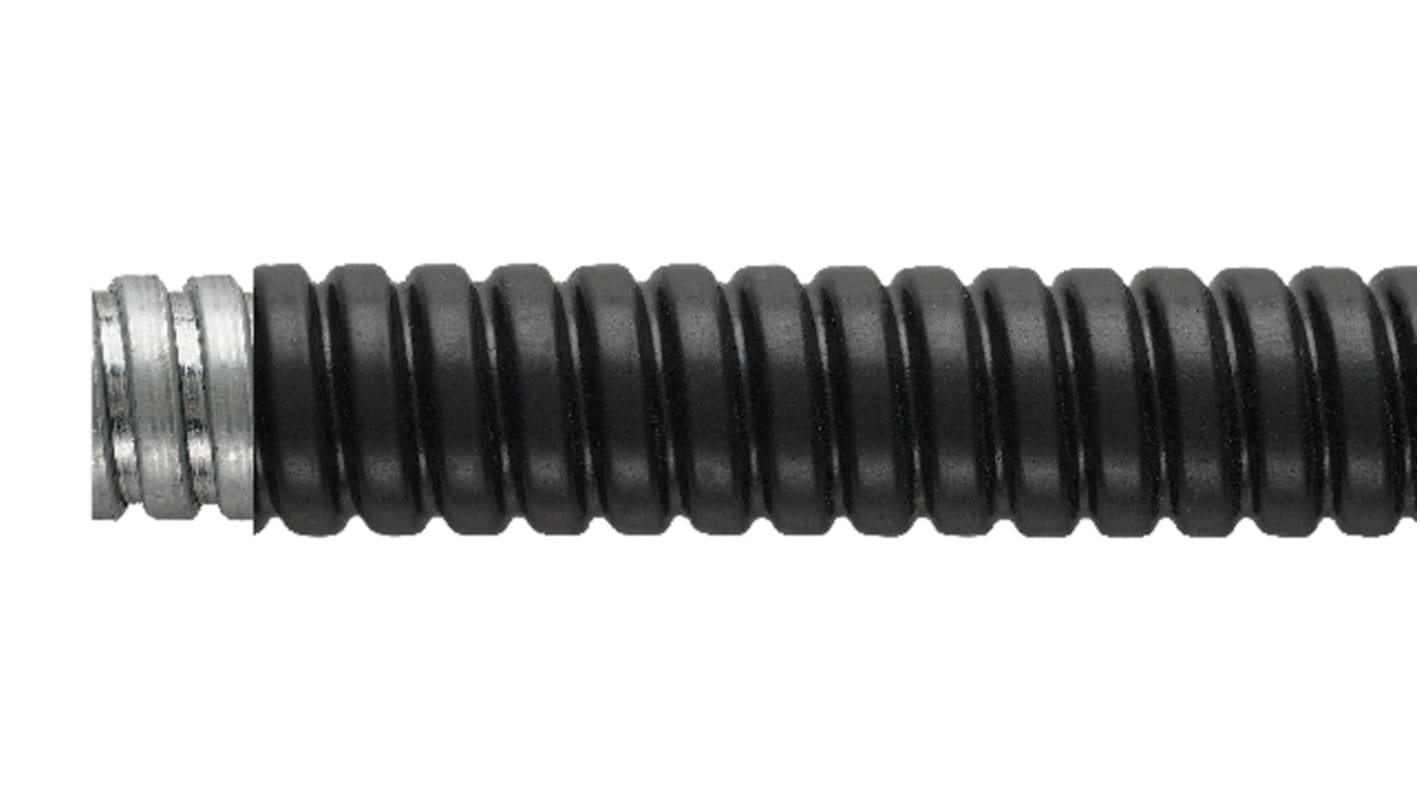

FSU Flexible Conduit, Galvanised Steel with Black PVC Coating

Flexicon FSU flexible conduit. Galvanised steel, helically wound with black PVC coating. Typical applications include general factory wiring and connections to machines.

PVC coated galvanised steel
IP Rating: IP54 with standard fittings and IP65 with FSU Type C compression fittings
Compression strength (20mm nominal size): 350kg/100mm
Pull off strength (20mm nominal size): 120kg
Minimum bend radius (for 20mm nominal size conduit): 45mm
High fatigue life
Temperature range: -15°C to +70°C
Self extinguishing
High UV resistance, suitable for outdoor use

Approvals

CE
BS EN IEC 61386
REACh
RoHS

Flexicon Flexible Conduit

Specifications

Attribute	Value
Nominal Diameter	20mm
Material	Galvanised Steel
Conduit Type	Flexible
Outer Diameter	21.5mm
Colour	Black
Interior Diameter	16.9mm
Length	50m
IP Rating	IP54
Coating Material	PVC
Maximum Operating Temperature	+70°C
Series	FSU
Minimum Bend Radius	45 mm
Minimum Operating Temperature	-15°C
Standards Met	CE Compliant, RoHS Compliant
