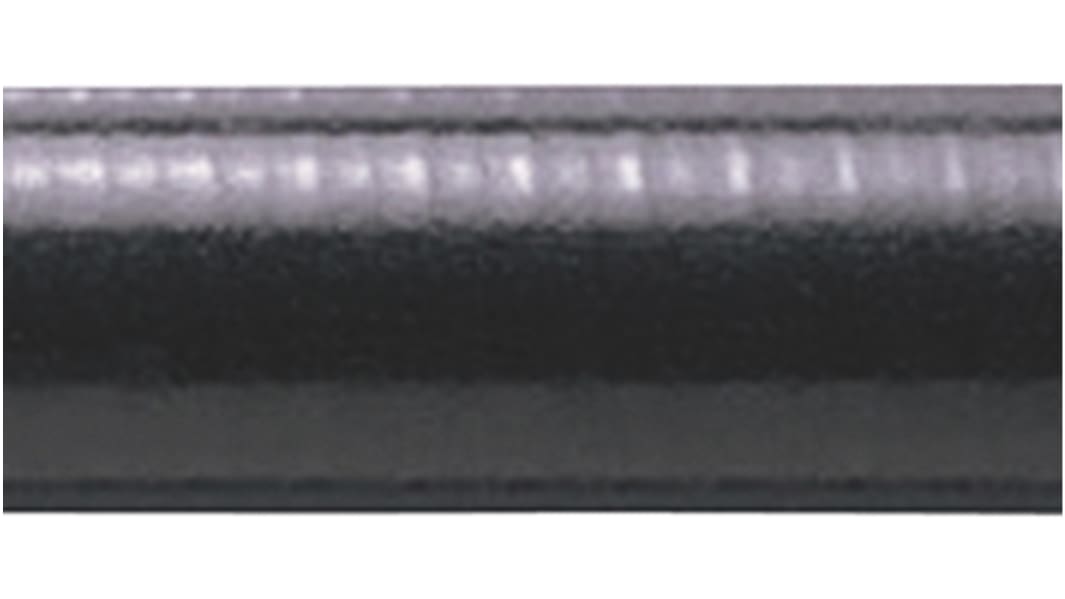

Adaptaflex SPL PVC Coated Galvanised Steel Liquid Tight Conduit Black 20mm x 50m

  • RS Stock No. 829-0270
  • Mfr. Part No. SPL20/50M
  • Manufacturer Adaptaflex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Liquid Tight Conduit

Liquid tight is a smooth covered flexible, waterproof, galvanised steel conduit with a heavy duty oil resistant PVC cover. UL recognised and Lloyd's registered approved, its typically found in Machining, Processing or Handling environments requiring high mechanical strength, oil resistance, IP67 ingress protection and where high temperatures are present.,A selection of straight swivel or 90° screw in nickel plated brass fittings with integral face seal provide a IP67 rating. The swivel fittings swivel independently of conduit until tightened to assist installation.

IP67 (with Fittings)
-20°C to +105°C operating temperature
Non Flame propagating to EN50086
UV resistant
Compression strength 2500N/50mm
1600N Tensile Strength

Specifications
Attribute Value
Nominal Diameter 20mm
Material Galvanised Steel
Conduit Type Liquid Tight
Colour Black
Outer Diameter 21.1mm
Interior Diameter 15.9mm
Length 50m
IP Rating B, IP66, IP67, IP68, IP69K
Coating Material PVC
Series SPL
Maximum Operating Temperature +105°C
Minimum Operating Temperature -20 °C, -5 °C
Minimum Bend Radius 80 mm
10 In Global stock for delivery within 4 - 6 working days
Price 1 Reel of 50 Metre(s)
MYR 3,114.56
Reel(s)
Per Reel
Per Metre*
1 - 4
MYR3,114.56
MYR62.291
5 +
MYR3,003.86
MYR60.077
*price indicative
