COAX Connectors 75Ω Straight Cable Mount 1.0/2.3 ConnectorBulkhead Fitting, Plug

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

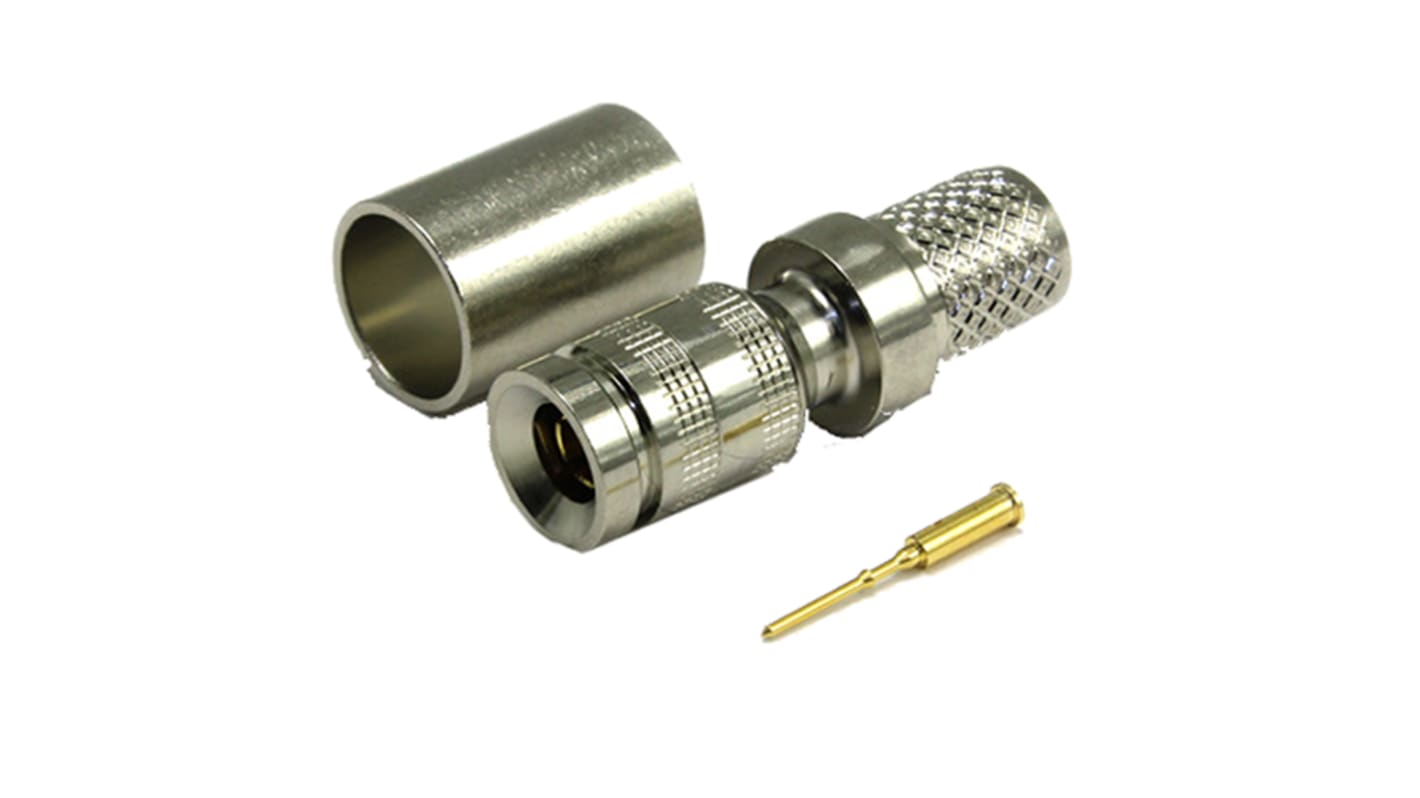

1.0/2.3 Straight Crimp Plugs

A series of superior quality 75 Ω machined 1.0/2.3 crimp plugs from Coax Connectors. These micro-miniature connectors have nickel plated brass bodies and gold plated phosphor bronze contacts. The connectors feature a push-pull coupling allowing for quick and secure mating with jacks. Removal is easy, simply slide back the coupling sleeve with fingers or a removal tool can be used when the connectors are in a restricted space. The 1.0/2.3 connectors would typically be used in the broadcast and machine vision markets. Tested to comply with SMPTE 292M 424M and ST2081-1 standards.

Coax Connectors 1.0/2.3 Range

Specifications
Attribute Value
Gender Male
Coaxial Connector Type 1.0/2.3 Connector
Mounting Type Cable Mount
Impedance 75Ω
Termination Method Crimp
Body Orientation Straight
Cable Type BELDEN 1694A, BELDEN 1694F, Bryant BD SD11, Conducfil 13653, Draka 1.0/4.8A/F, Image 1000, Percon VK7, VK77
Size Miniature
Bulkhead Yes
Operating Frequency 3GHz
Body Plating Nickel
Contact Material Beryllium Copper (Outer), Phosphor Bronze (Centre)
Contact Plating Gold
3 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR30.87
MYR 30.55
units
Per unit
1 - 4
MYR30.55
5 - 9
MYR29.27
10 - 24
MYR27.86
25 - 49
MYR26.64
50 +
MYR24.99
