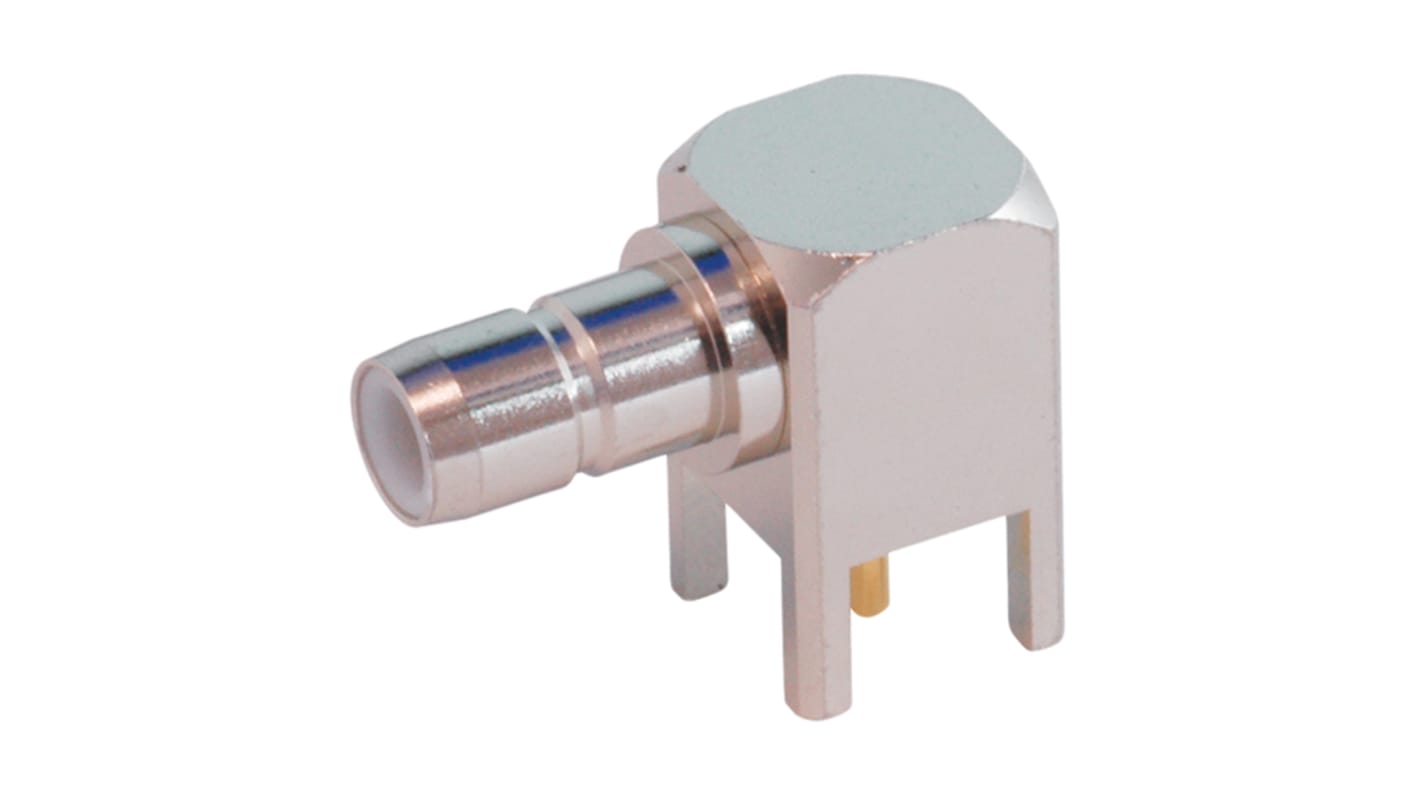

Yuetsu, jack Through Hole SMB Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 906-0711
- Mfr. Part No.:
- 080-0050
- Manufacturer:
- Yuetsu
Temporarily out of stock - back order for despatch 14/05/2024, delivery within 6 working days from despatch date
Added
Price Each
MYR30.46
| Units | Per Unit |
| 1 - 4 | MYR30.46 |
| 5 - 9 | MYR29.60 |
| 10 - 24 | MYR28.39 |
| 25 + | MYR27.59 |
- RS Stock No.:
- 906-0711
- Mfr. Part No.:
- 080-0050
- Manufacturer:
- Yuetsu
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Yuetsu SMB PCB Receptacles
A series of 50 Ohm SMB connectors, with nickel plated brass bodies and gold plated phosphor bronze contacts. These female SMB connectors also feature a snap on coupling mechanism for easy mating. The RF coaxial connectors come in both straight and right angled versions. They operate within a frequency range of 0-4GHz and are typically used for antennas, radio boards, PC/LAN and GPS systems applications.
Yuetsu - SMB Series
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMB Connector |
| Gender | Female |
| Mounting Type | Through Hole |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Right Angle |
| Size | Standard |
| Operating Frequency | 0 to 4GHz |
| Body Plating | Nickel |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
