Huber+Suhner, Plug Cable Mount QN Connector, 50Ω, Solder Termination, Right Angle Body

RS Stock No.:: 612-6940
Mfr. Part No.:: 16_QN-50-7-1_/133_NE
Manufacturer:: Huber+Suhner

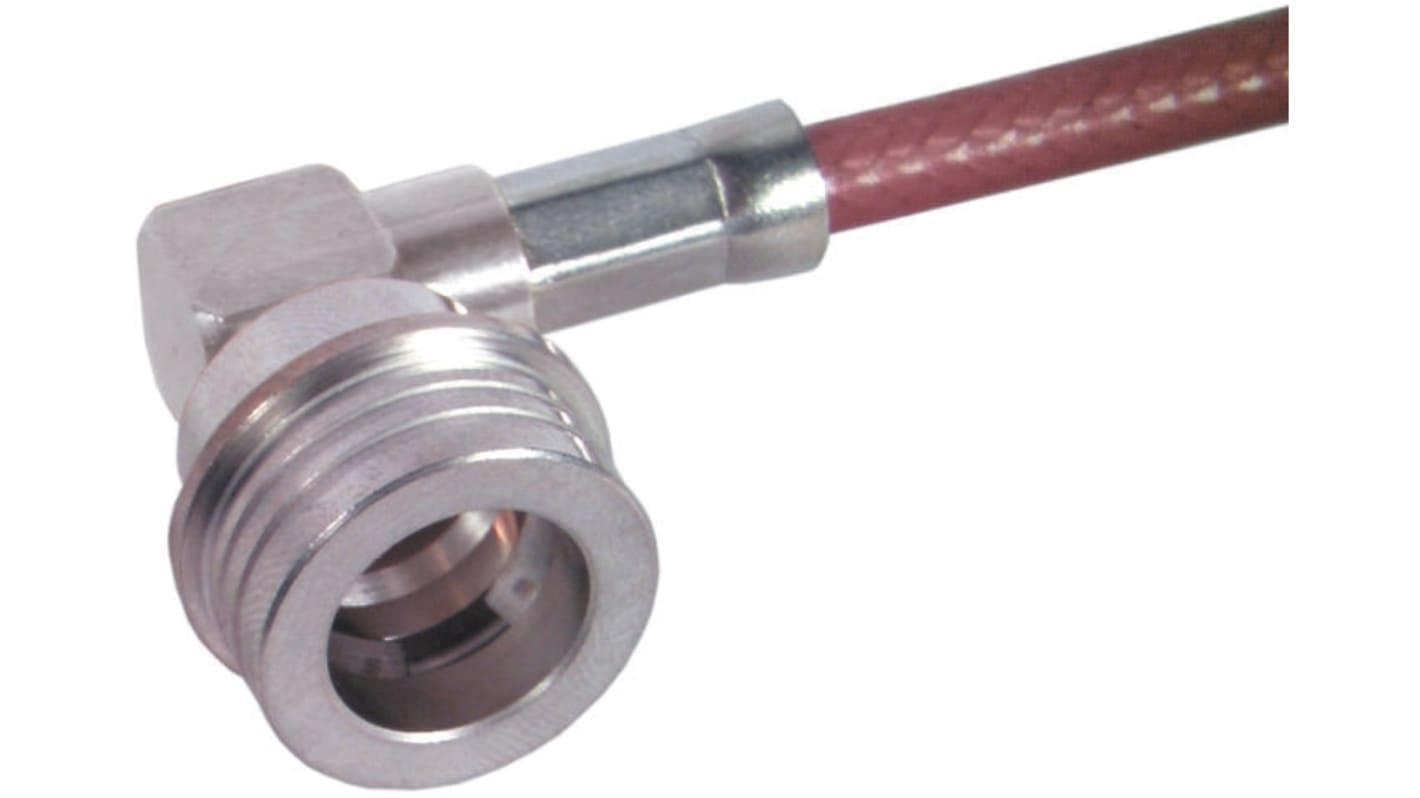

Huber+Suhner, Plug Cable Mount QN Connector, 50Ω, Solder Termination, Right Angle Body

This image is representative of the product range

Temporarily out of stock - back order for despatch 29/07/2024, delivery within 4 working days from despatch date

Added

Price Each

MYR192.41

Units	Per Unit
1 - 14	MYR192.41
15 - 49	MYR188.38
50 - 99	MYR182.73
100 - 249	MYR178.24
250 +	MYR174.33

RS Stock No.:: 612-6940
Mfr. Part No.:: 16_QN-50-7-1_/133_NE
Manufacturer:: Huber+Suhner

Technical data sheets

16_QN-50-7-1/133_N Connector Data Sheet

Legislation and Compliance

COO (Country of Origin):: CH

Product Details

90° Cable Plug

HUBER+SUHNER QN Series

The QN series is based on the inner dimensions and performance of the N connector; however, instead of a threaded coupling mechanism, a SNAP-ON mechanism is used, offering a time-saving and fail-safe mounting. The QN series also allows increased packaging density compared to N connectors due to the fact that no torque spanner is required to fasten the coupling nut. Additionally, the outer dimensions of QN are smaller than N, offering the advantage that TNC-sized flanges can be used on QN connectors.

50Ω impedance
Frequency range up to 11GHz, although most connectors are return-loss optimised for up to 6GHz
Similar performance to N but much easier to mate
User-friendly, fast and secure
Time saving thanks to SNAP-ON mating
No additional space for a torque wrench is needed between connectors

Specifications

Attribute	Value
Coaxial Connector Type	QN Connector
Gender	Male
Mounting Type	Cable Mount
Impedance	50Ω
Termination Method	Solder
Body Orientation	Right Angle
Cable Type	RG214/U, RG363/U
Operating Frequency	0 to 11GHz
Body Plating	White Bronze
Contact Material	Brass
Contact Plating	Gold over Enickel
