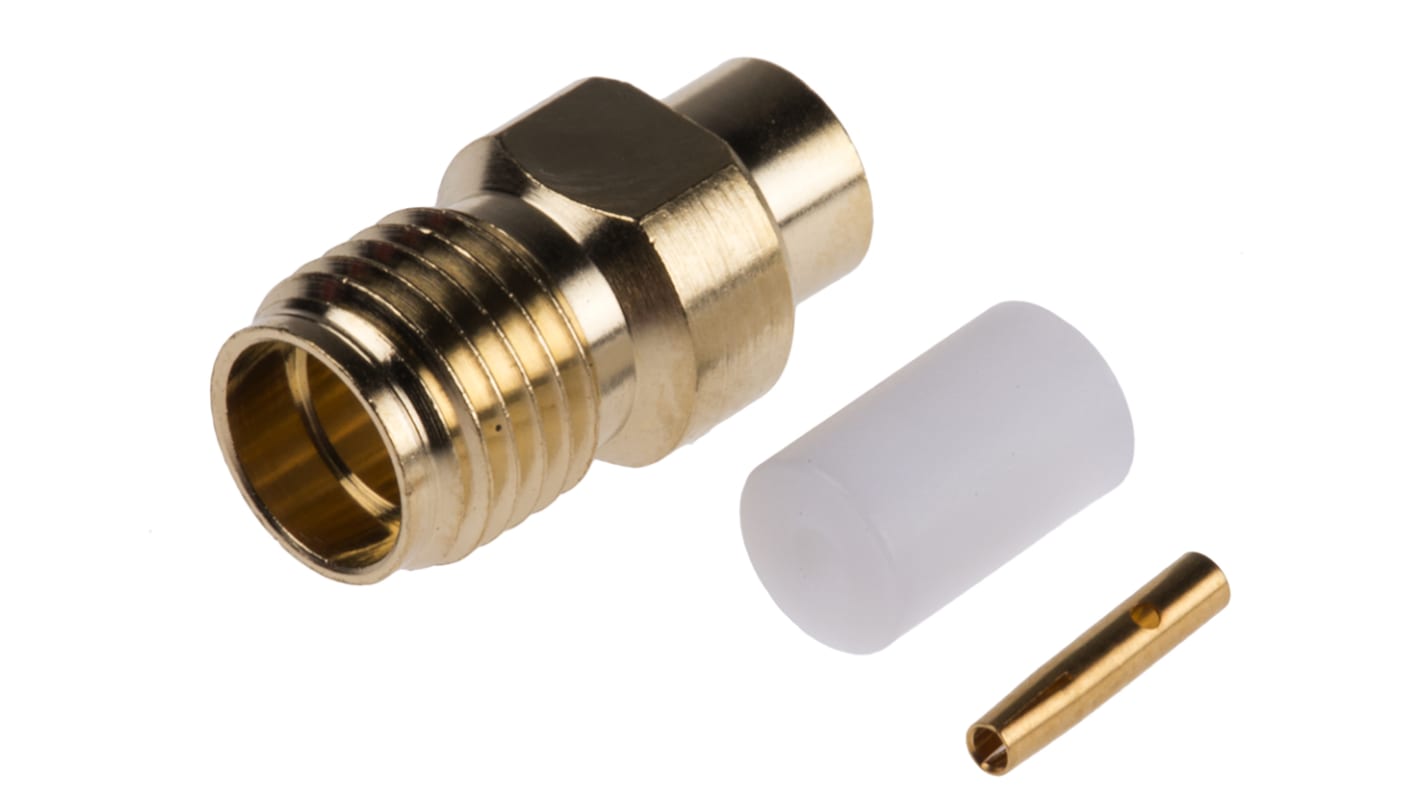

RS PRO Straight Cable Mount SMA Connector, jack, RG402


865 In stock for delivery within 4 working days
Add to Basket

Price Each

MYR12.34

units

Added

RS Stock No.:
546-3125
Manufacturer:
RS PRO
COO (Country of Origin):
TW
unitsPer unit
1 - 14MYR12.34
15 - 49MYR11.93
50 - 99MYR11.63
100 - 249MYR11.33
250 +MYR11.14

Cable jack


Approvals

-

Gold Plated - RS

SMA Connectors for semi-rigid and flexible cables.,

SMA Solder (Semi-rigid cable)

For use with semi-rigid coaxial cable
Designed to provide high frequency performance at high power ratings in small diameters
Stud contact types are provided in both captive and non-captive forms
Connectors available for the two most commonly used microwave cables, RG402/U and RG405/U

SMA Crimp (Flexible cable)

Used with a variety of flexible RF cables
Suitable for design and development work and where large quantity usage requires repeatability in performance
Available in non-captive contact form for optimum electrical performance
Assembly is acheived by soldering the centre contact and crimping braid and outer sleeve

SMA Clamp (Flexible cable)

Pressure sleeve clamp versions for use with flexible cables
Captive contacts ensure correct positioning and mating
Ideal for field service applications

AttributeValue
Coaxial Connector TypeSMA Connector
GenderFemale
Mounting TypeCable Mount
Termination MethodCrimp
Body OrientationStraight
Cable TypeRG402
SizeSubminiature
BulkheadNo
Operating Frequency0 to 12.4 GHz, 0 to 18GHz
Body PlatingGold
PolarityNormal
Contact MaterialBeryllium Copper
Contact PlatingGold
