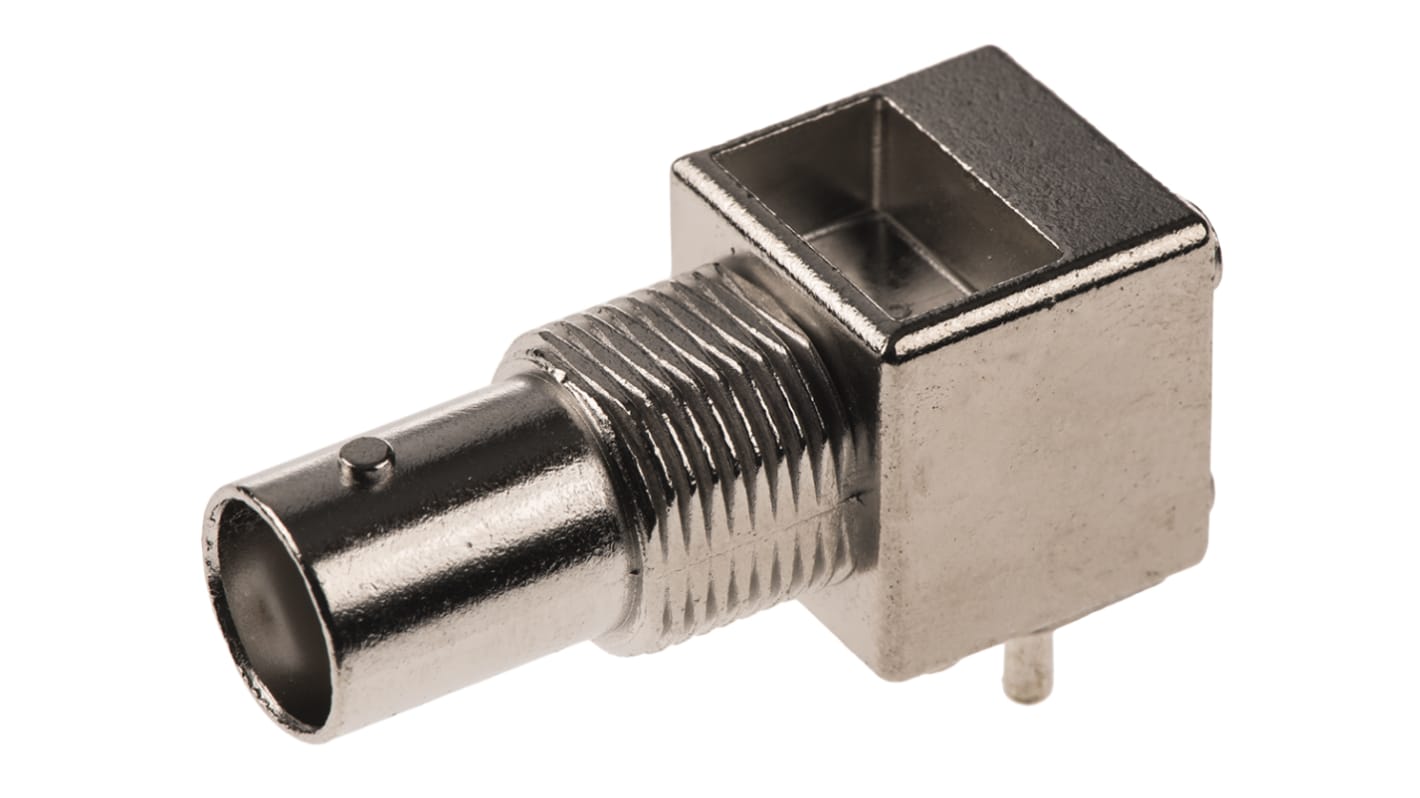

TE Connectivity, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Right Angle Body
- RS Stock No.:
- 512-1253
- Mfr. Part No.:
- 1-1337494-0
- Manufacturer:
- TE Connectivity
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR17.56
| Units | Per Unit |
| 1 - 14 | MYR17.56 |
| 15 - 49 | MYR16.68 |
| 50 - 99 | MYR15.85 |
| 100 - 249 | MYR15.06 |
| 250 + | MYR14.27 |
- RS Stock No.:
- 512-1253
- Mfr. Part No.:
- 1-1337494-0
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
TE Connectivity 50 Ohm ZDC/BNC Shielded PCB Sockets
50 Ohm ZDC/BNC shielded right angle/elbow mount PCB socket with solder terminal, polyethylene dielectric and nickel plated zinc body. This 50 Ohm ZDC/BNC shielded right angle/elbow mount PCB jack is rear panel mounting with bulkhead, hex nut retention and requires a panel cut-out of 12 x 12.9mm.
TE Connectivity BNC RF Coaxial Connectors
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | PCB Mount |
| Impedance | 50Ω |
| Termination Method | Through Hole |
| Body Orientation | Right Angle |
| Bulkhead | Yes |
| Operating Frequency | 0 to 4GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel over Copper |
