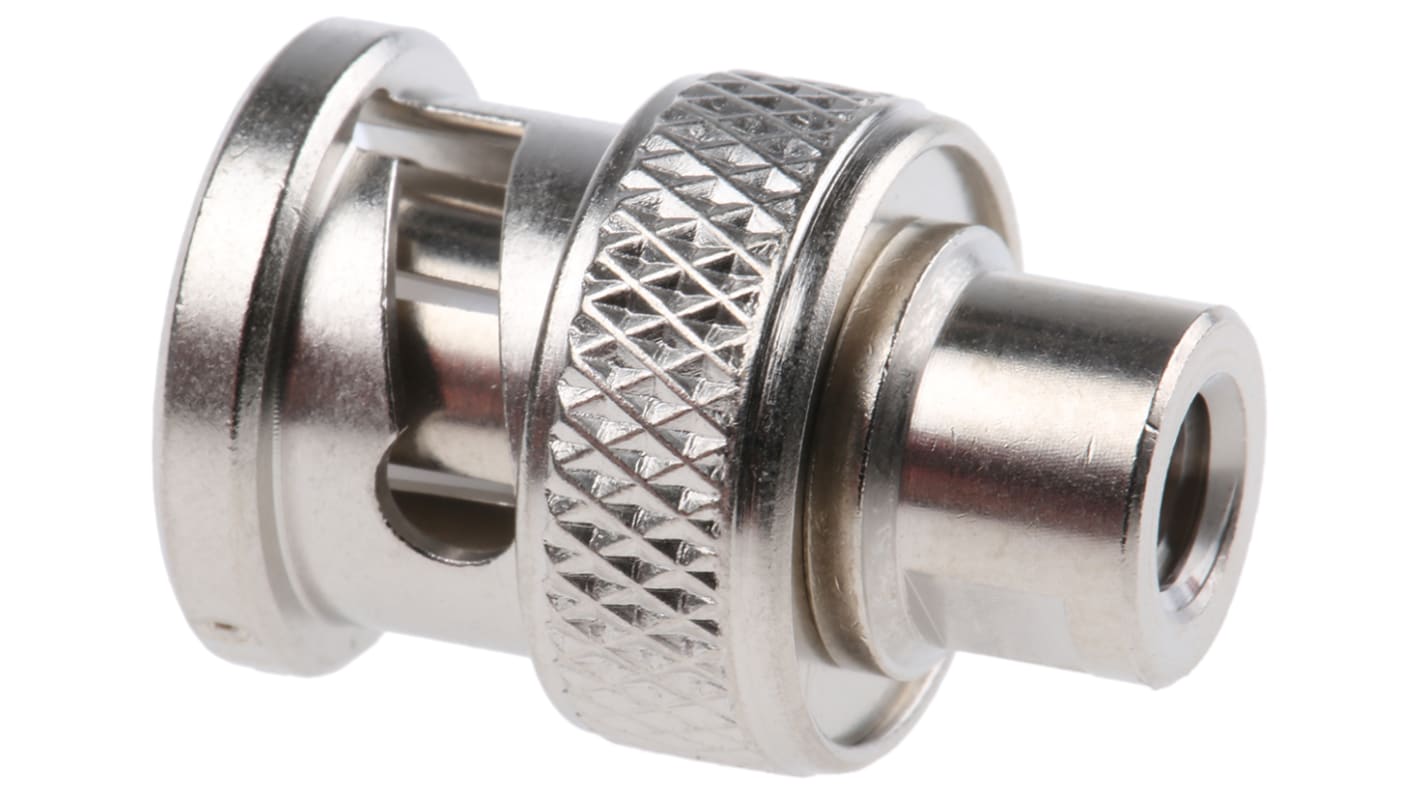

Radiall Straight 75Ω Cable Mount BNC Connector, Plug, Nickel, Clamp Termination, RG179, RG187

  • RS Stock No. 295-7481
  • Mfr. Part No. R142004000W
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Straight clamp plug

Approvals

7777

Radiall BNC RF Coaxial Connectors

Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.

Specifications
Attribute Value
Gender Male
Mounting Type Cable Mount
Impedance 75Ω
Termination Method Clamp
Body Orientation Straight
Cable Type RG179, RG187
Bulkhead No
Operating Frequency 0 → 1GHz
Minimum Operating Temperature -65°C
Body Plating Nickel
Maximum Operating Temperature +165°C
Contact Material Brass
Contact Plating Gold
58 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 55.50
units
Per unit
1 - 9
MYR55.50
10 - 24
MYR52.41
25 - 49
MYR44.06
50 - 99
MYR38.47
100 +
MYR33.72
