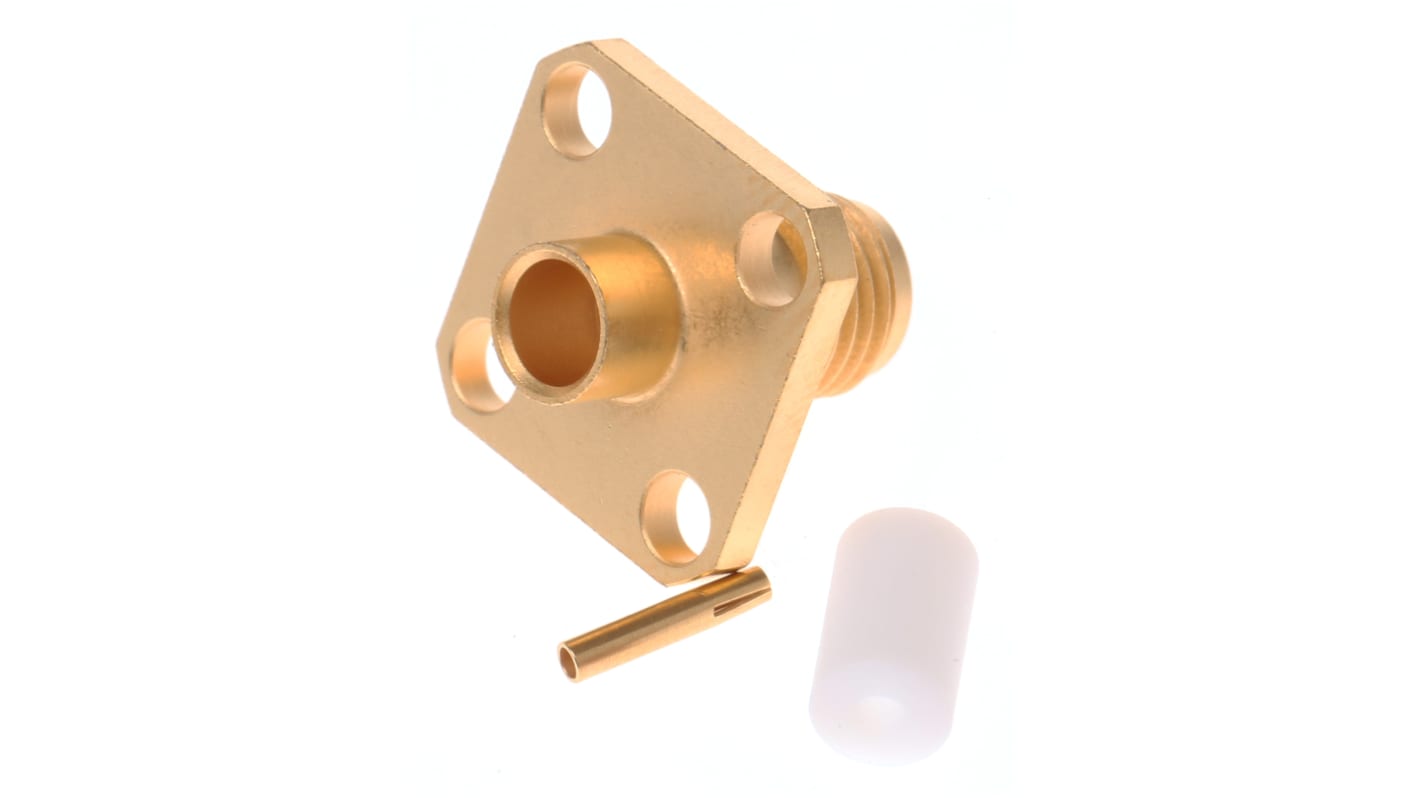

Radiall 50Ω Straight Flange Mount SMA Connector, jack, RG402

  • RS Stock No. 295-5918
  • Mfr. Part No. R125255000W
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Panel Jack Solder

Approvals

N/A

Radiall SMA Gold Plated Stainless Steel

SMA connectors to MIL-C-39012 and BS 9210 N006 standards for high performance RF applications. Connectors have gold plated stainless steel bodies in a variety of popular semi-rigid and flexible cable applications.

Specifications
Attribute Value
Coaxial Connector Type SMA Connector
Gender Female
Mounting Type Flange Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG402
Bulkhead No
Operating Frequency 0 to 18GHz
Minimum Operating Temperature -65°C
Body Plating Gold
Maximum Operating Temperature +105°C
Contact Material Beryllium Copper
Contact Plating Gold over Nickel
50 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 147.12
units
Per unit
1 - 14
MYR147.12
15 - 49
MYR144.91
50 - 99
MYR142.26
100 - 249
MYR140.36
250 +
MYR126.97
