Radiall Cable Mount MCX Connector Plug, 50Ω Impedance, Crimp Termination, 0 → 6GHz

  • RS Stock No. 245-5036
  • Mfr. Part No. R113082000W
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Radiall 50 Ohm MCX RF Coaxial Crimp Plug Connectors

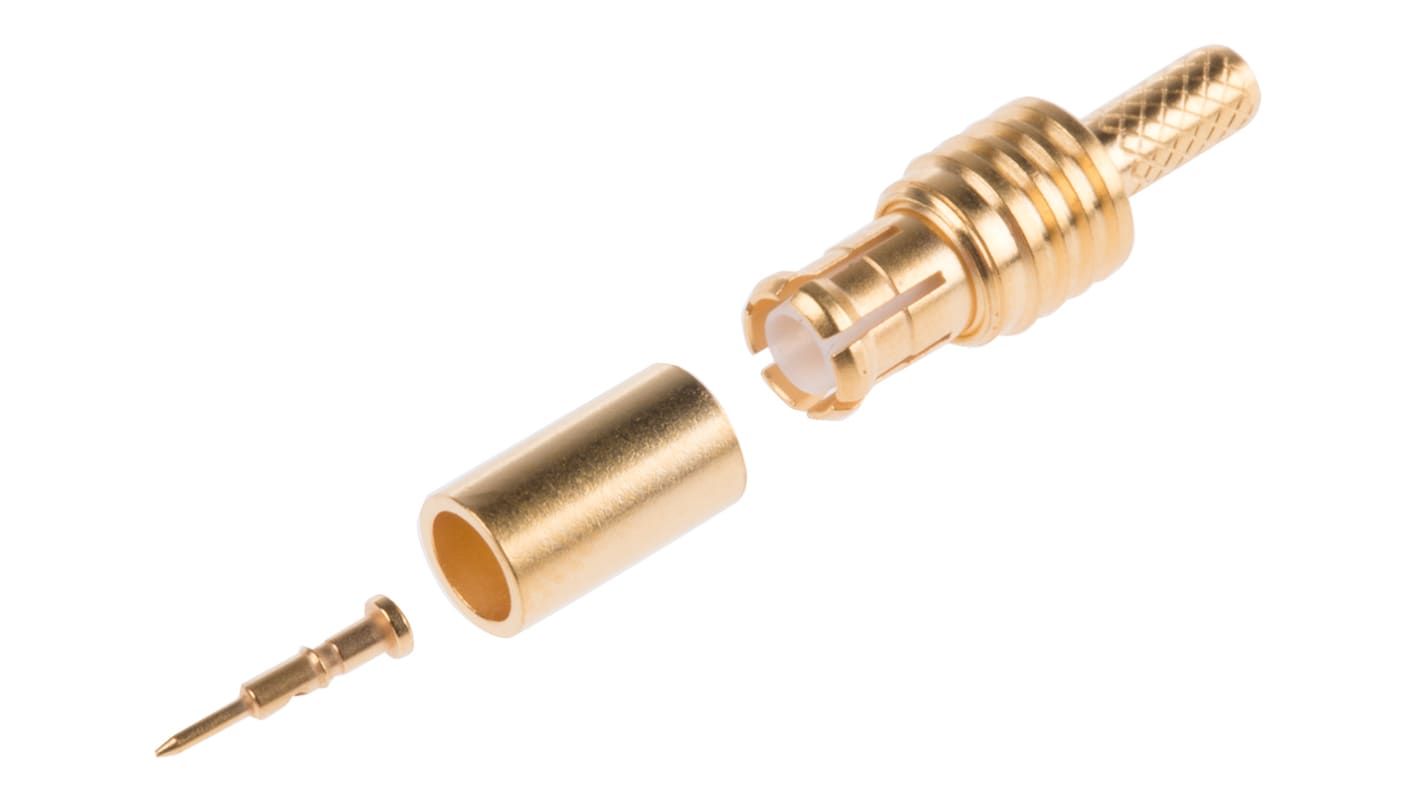

50 Ohm MCX RF coaxial crimp plug connectors with snap-on mating and a crimp termination. These 50 Ohm MCX straight RF coax crimp cable plugs have a thermoplastic dielectric, a gold over nickel plated body (apart from stock number 257-8397 which is nickel plated), gold plated centre contact and are for use with a variety of RF coaxial cable types including RG174, RG188, RG316, RG178 and RG196

Note

Tooling not supplied by Radiall.

Approvals

-

Radiall MCX

Microminiature coaxial connectors suitable for industrial and military communication applications
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version

MCX 50Ω

Specifications
Attribute Value
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG174, RG188, RG316
Operating Frequency 0 → 6GHz
Body Plating Gold over Nickel
Minimum Operating Temperature -55°C
Maximum Operating Temperature 155°C
Contact Material Brass
Contact Plating Gold over Nickel
