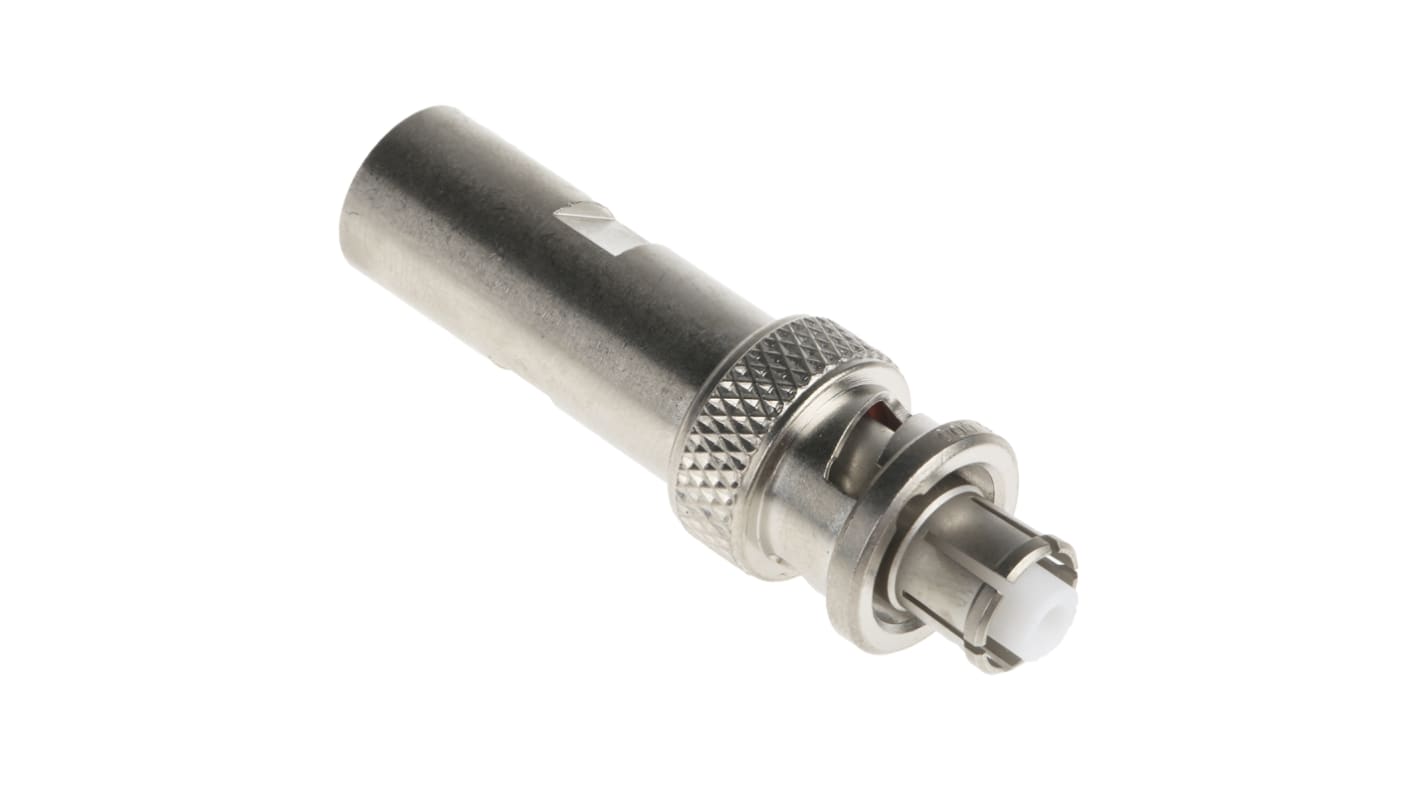

Radiall SHV Series, Plug Cable Mount BNC Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 212-7416
- Mfr. Part No.:
- R317005000
- Manufacturer:
- Radiall
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
144 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR253.67
| Units | Per Unit |
| 1 - 9 | MYR253.67 |
| 10 - 49 | MYR248.38 |
| 50 - 99 | MYR240.93 |
| 100 - 499 | MYR234.99 |
| 500 + | MYR193.38 |
- RS Stock No.:
- 212-7416
- Mfr. Part No.:
- R317005000
- Manufacturer:
- Radiall
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Radiall 50 Ohm SHV RF Coaxial Cable Clamp Plug Connectors
50 Ohm SHV safe high voltage RF coaxial straight cable plugs with bayonet fixing, cable clamp termination, nickel plated brass body and gold plated center contact. These 50 Ohm SHV RF coax cable plugs have a test voltage of 10000 Vdc when unmated and a test voltage of 12000 Vdc when mated. The following RF coaxial cables can be used with these 50 Ohm SHV RF coaxial plugs: RG142 and RG58.
These plugs are not intermateable with the BNC or BNC.HT series
These plugs are not intermateable with the BNC or BNC.HT series
Radiall SHV RF Coaxial Connectors
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | BNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Clamp |
| Body Orientation | Straight |
| Cable Type | RG142, RG58 |
| Bulkhead | No |
| Operating Frequency | 0 to 2GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +165°C |
| Series | SHV |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
