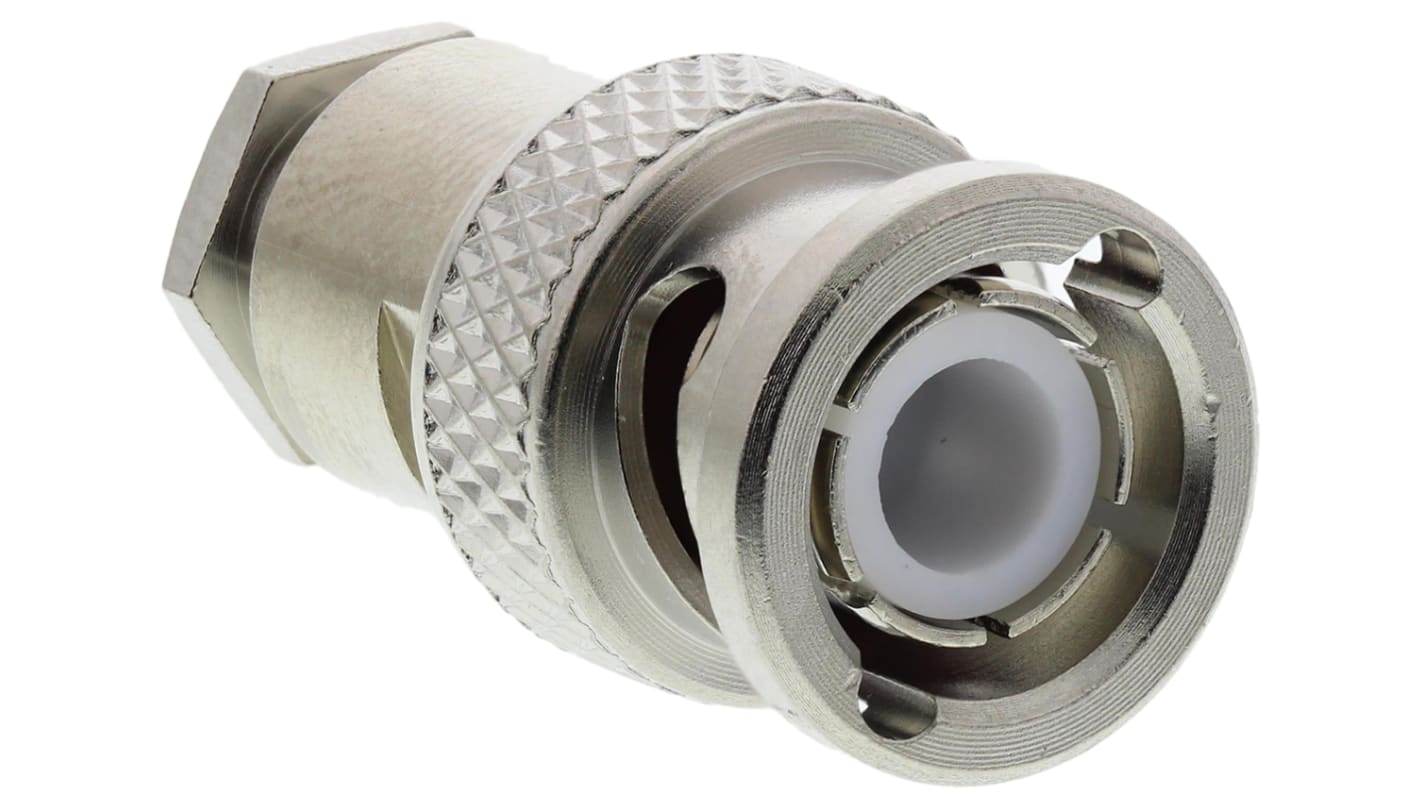

Radiall Straight 50Ω Cable Mount BNC Connector, Plug, Nickel, Clamp Termination, 50 PPD

  • RS Stock No. 170-2475
  • Mfr. Part No. R141005000
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Straight male BNC plugs with cable gland

Straight male BNC plugs with cable gland.
This range of connectors covers a large number of applications including military and civil radio and telecommunications equipment.
Tough, strong connectors with excellent HF performance.

Radiall BNC RF Coaxial Connectors

Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.

Specifications
Attribute Value
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Clamp
Body Orientation Straight
Cable Type 50 PPD
Bulkhead No
Operating Frequency 0 → 4GHz
Body Plating Nickel
Minimum Operating Temperature -65°C
Maximum Operating Temperature +165°C
Contact Plating Gold over Nickel
500 In Global stock for delivery within 4 - 6 working days
Price Each (In a Box of 100)
MYR 68.605
units
Per unit
Per Box*
100 +
MYR68.605
MYR6,860.50
*price indicative
