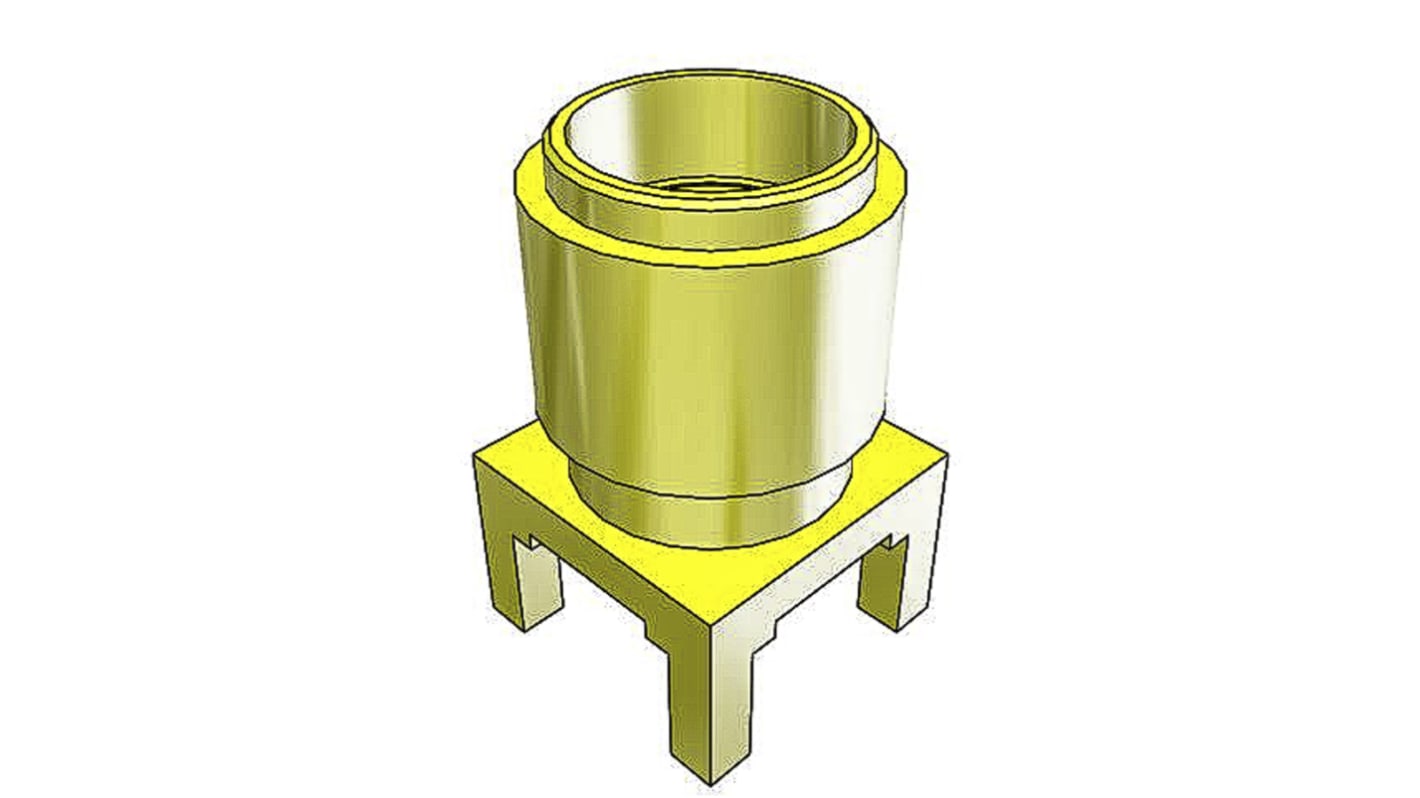

Samtec SMA Series, jack Surface Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 159-2309
- Mfr. Part No.:
- SMA-J-P-H-ST-MT1
- Manufacturer:
- Samtec
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR39.76
| Units | Per Unit |
| 1 - 9 | MYR39.76 |
| 10 - 49 | MYR38.91 |
| 50 - 99 | MYR37.74 |
| 100 - 499 | MYR36.61 |
| 500 + | MYR35.50 |
- RS Stock No.:
- 159-2309
- Mfr. Part No.:
- SMA-J-P-H-ST-MT1
- Manufacturer:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details
50 Ohm SMA Jack, Through-hole
Through-hole termination
Vertical or right-angle
50 ohm impedance
Performance up to 20 GHz / 40 Gbps
Vertical or right-angle
50 ohm impedance
Performance up to 20 GHz / 40 Gbps
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMA Connector |
| Gender | Female |
| Mounting Type | Surface Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Standard |
| Bulkhead | No |
| Operating Frequency | 0 to 20GHz |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +125°C |
| Series | SMA |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Mating Type | Threaded |
