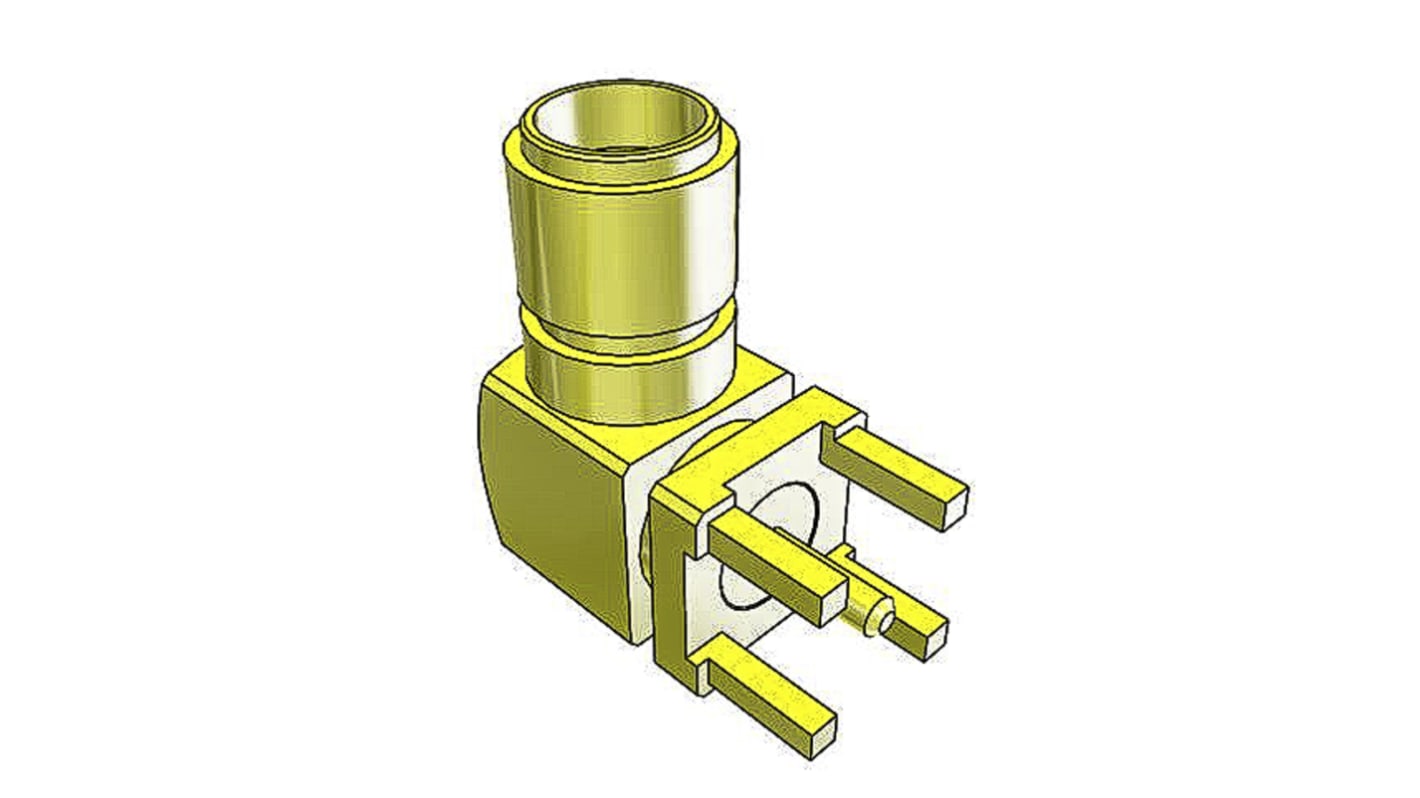

Samtec Right Angle 50Ω PCB Mount SMA Jack, Solder Termination

  • RS Stock No. 159-2297
  • Mfr. Part No. SMA-J-P-H-RA-TH1
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

50 Ohm SMA Jack, Through-hole

Through-hole termination
Vertical or right-angle
50 ohm impedance
Performance up to 20 GHz / 40 Gbps

Specifications
Attribute Value
Gender Female
Mounting Type PCB Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Right Angle
Size Standard
Bulkhead No
Operating Frequency 0 → 20GHz
Minimum Operating Temperature -65°C
Maximum Operating Temperature 125°C
Series SMA
Contact Material Beryllium Copper
Contact Plating Gold
181 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 26.29
units
Per unit
1 - 9
MYR26.29
10 - 49
MYR25.45
50 - 99
MYR24.06
100 - 499
MYR22.79
500 +
MYR22.17
