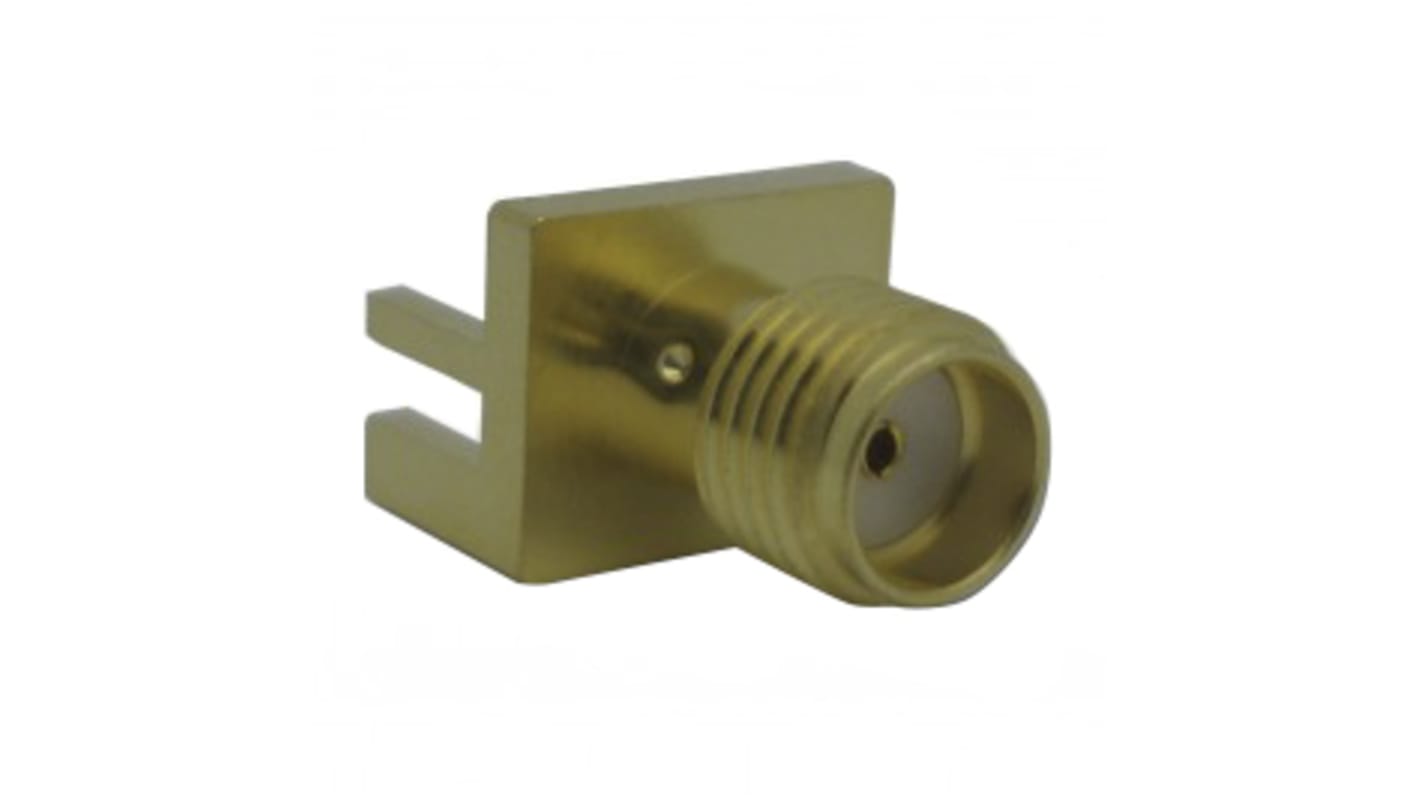

Amphenol Socapex Straight 50Ω Edge Mount SMA Connector, Solder Termination

  • RS Stock No. 144-0949
  • Mfr. Part No. 132357-11
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and 1/4 - 36 threaded coupling, which offers high performance in a compact design

Light weight, compact and vibration proof design
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

RF Connector, SMA End Launch Jack for 0.062 inch PCB, 50 Ohm, Flat Tab Contact

Specifications
Attribute Value
Gender Female
Coaxial Connector Type SMA Connector
Mounting Type Edge Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Size Standard
Bulkhead No
Operating Frequency 18GHz
Minimum Operating Temperature -65°C
Body Plating Gold
Polarity Normal
Maximum Operating Temperature 165°C
Contact Material Beryllium Copper
Contact Plating Gold
187 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 34.71
units
Per unit
1 - 9
MYR34.71
10 - 19
MYR33.43
20 - 49
MYR32.75
50 - 99
MYR32.19
100 +
MYR31.70
