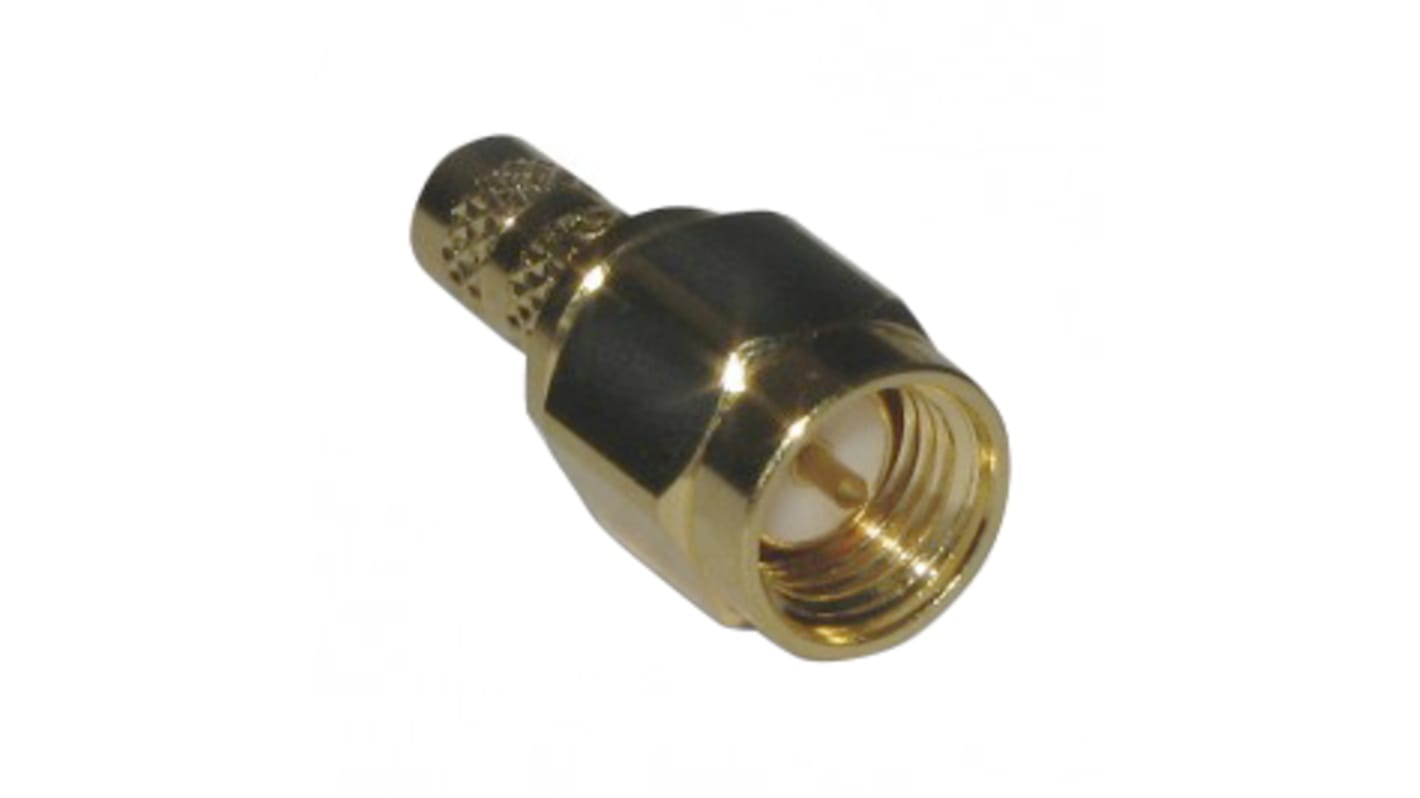

Amphenol Socapex Straight 50Ω Cable Mount SMA Connector, Crimp Termination RG142, RG223, RG400, RG55

  • RS Stock No. 144-0909
  • Mfr. Part No. 132195
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Connex SMA connectors are semi-precision, sub-miniature, high-frequency connectors which offer reliable broadband performance DC to 18GHz with low reflection and constant 50 ohm impedance. The main features are high mechanical strength, high durability and low VSWR. Matured design principles, careful manufacturing at all stages and a thorough quality assurance organization are the bases for the well-known quality of Connex SMA connectors.

Light weight, compact and vibration proof design
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

RF Connector, SMA Straight Crimp Plug for RG-55, RG-142, RG-223, 50 Ohm

Specifications
Attribute Value
Coaxial Connector Type SMA Connector
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG142, RG223, RG400, RG55
Size Standard
Bulkhead No
Operating Frequency 12.4GHz
Minimum Operating Temperature -65°C
Body Plating Gold
Maximum Operating Temperature 165°C
Polarity Normal
Contact Material Brass
Contact Plating Gold
245 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR22.58
MYR 21.19
units
Per unit
1 - 9
MYR21.19
10 - 19
MYR20.43
20 - 49
MYR19.65
50 - 99
MYR19.18
100 +
MYR18.75
