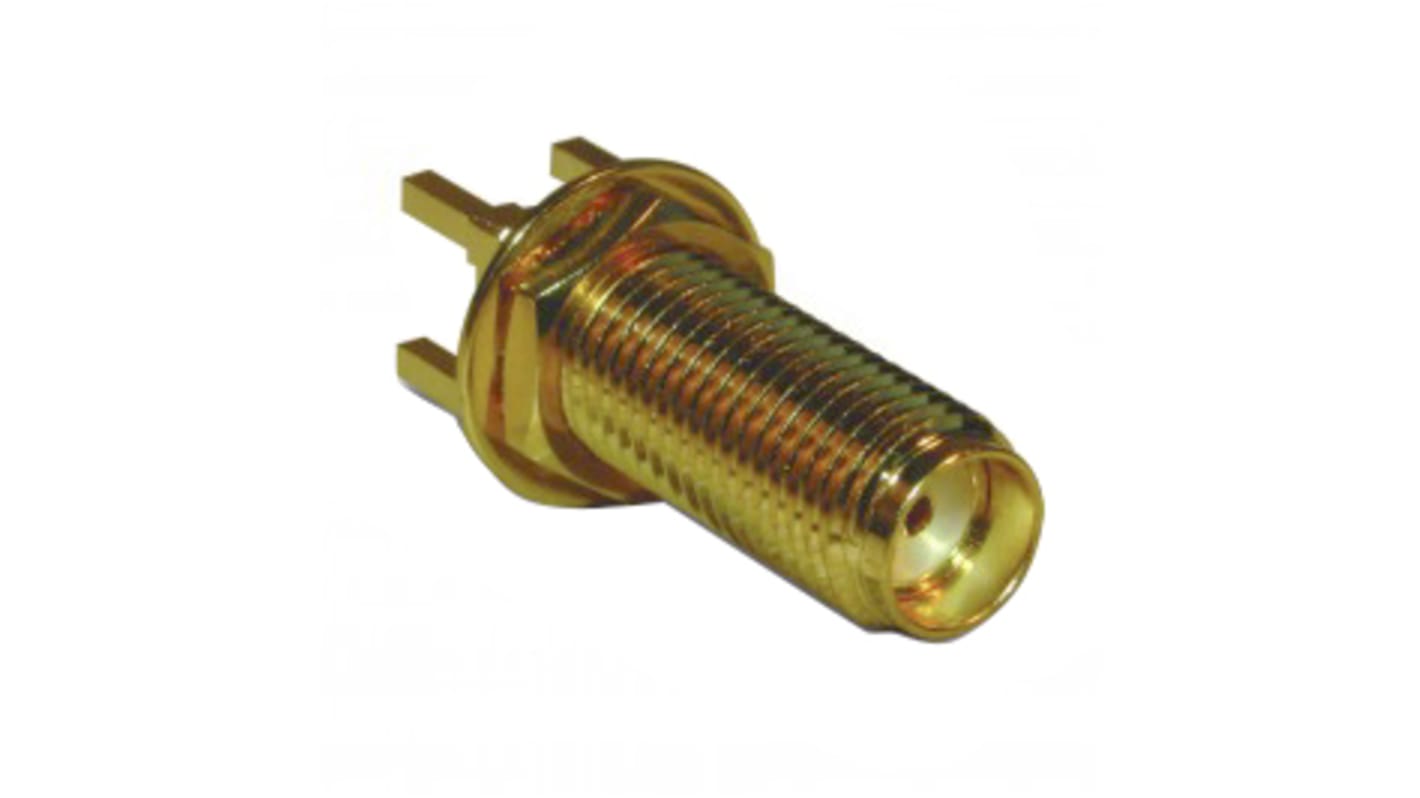

Amphenol RF, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body

RS Stock No.:: 144-0907
Mfr. Part No.:: 132291
Manufacturer:: Amphenol RF

Amphenol RF, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

25 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR47.25

Units	Per Unit
1 - 9	MYR47.25
10 - 19	MYR46.30
20 - 49	MYR45.37
50 - 99	MYR44.45
100 +	MYR43.55

RS Stock No.:: 144-0907
Mfr. Part No.:: 132291
Manufacturer:: Amphenol RF

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

The Connex SMA connectors are semi-precision, sub-miniature, high-frequency connectors which offer reliable broadband performance DC to 18GHz with low reflection and constant 50 ohm impedance. The main features are high mechanical strength, high durability and low VSWR. Matured design principles, careful manufacturing at all stages and a thorough quality assurance organization are the bases for the well-known quality of Connex SMA connectors.

Light weight, compact and vibration proof design
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

RF Connector, SMA Straight PCB Jack, Through Hole, 50 Ohm, Bulkhead

Specifications

Attribute	Value
Coaxial Connector Type	SMA Connector
Gender	Female
Mounting Type	PCB Mount
Impedance	50Ω
Termination Method	Solder
Body Orientation	Straight
Size	Standard
Bulkhead	Yes
Operating Frequency	18GHz
Body Plating	Gold
Minimum Operating Temperature	-65°C
Polarity	Normal
Maximum Operating Temperature	+165°C
Contact Material	Beryllium Copper
Contact Plating	Gold
Mating Type	Threaded
