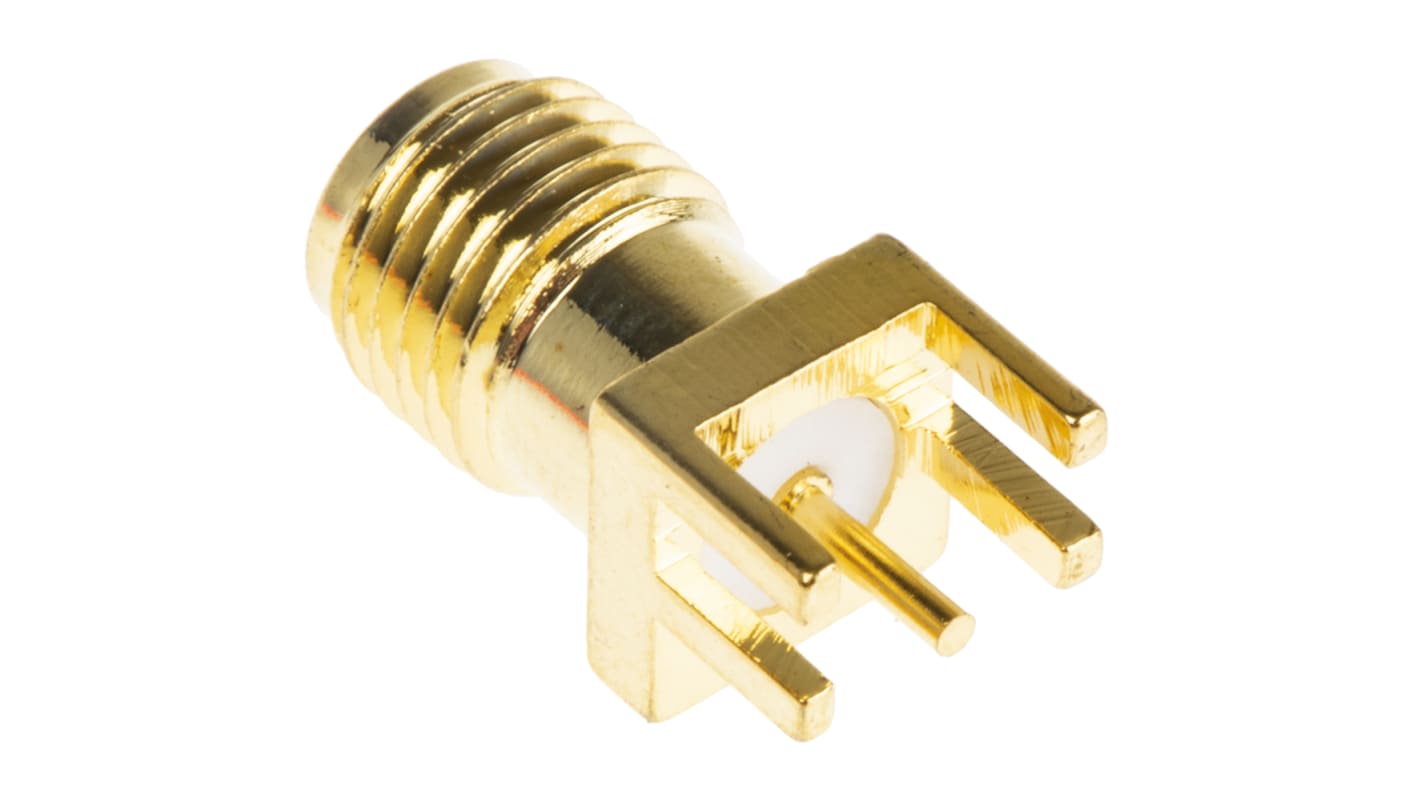

RF Solutions CON Series, jack SMA Connector, Solder Termination, Straight Body

RS Stock No.:: 125-8192
Mfr. Part No.:: CON-SMA-EDGE-SRP
Manufacturer:: RF Solutions

RF Solutions CON Series, jack SMA Connector, Solder Termination, Straight Body

10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

340 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR14.01

Units	Per Unit
1 - 4	MYR14.01
5 +	MYR12.62

RS Stock No.:: 125-8192
Mfr. Part No.:: CON-SMA-EDGE-SRP
Manufacturer:: RF Solutions

Technical data sheets

CON-SMA-EDGE-SRP Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

PCB Edge Mount SMA Connectors

Gold-plated brass, edge-mount SMA connectors for printed circuit board (PCB) mounting. Three versions are available:

- CON-SMA-EDGE - SMA Female (RS 125-8190)
- CON-SMA-EDGE-S - Small Footprint SMA Female (RS 125-8191)
- CON-SMA-EDGE-SRP - Small Footprint SMA Female (RS 125-8192)

Straight jack, SMA female connector
Beryllium copper, gold-plated contacts
Teflon insulator
Thread: 1/4-36UNS-2A
Suitable for 1.2 to 1.6mm thickness PCB
Maximum frequency: 18GHz
Impedance: 50Ω

RF Solutions SMA Connectors

Specifications

Attribute	Value
Coaxial Connector Type	SMA Connector
Gender	Female
Termination Method	Solder
Body Orientation	Straight
Bulkhead	No
Polarity	Reverse
Series	CON
Mating Type	Threaded
