RF Solutions CON Series, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body

RS Stock No.:: 125-8190
Mfr. Part No.:: CON-SMA-EDGE
Manufacturer:: RF Solutions

RF Solutions CON Series, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body

62 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

141 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR10.92

Units	Per Unit
1 - 4	MYR10.92
5 +	MYR9.82

RS Stock No.:: 125-8190
Mfr. Part No.:: CON-SMA-EDGE
Manufacturer:: RF Solutions

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

PCB Edge Mount SMA Connectors

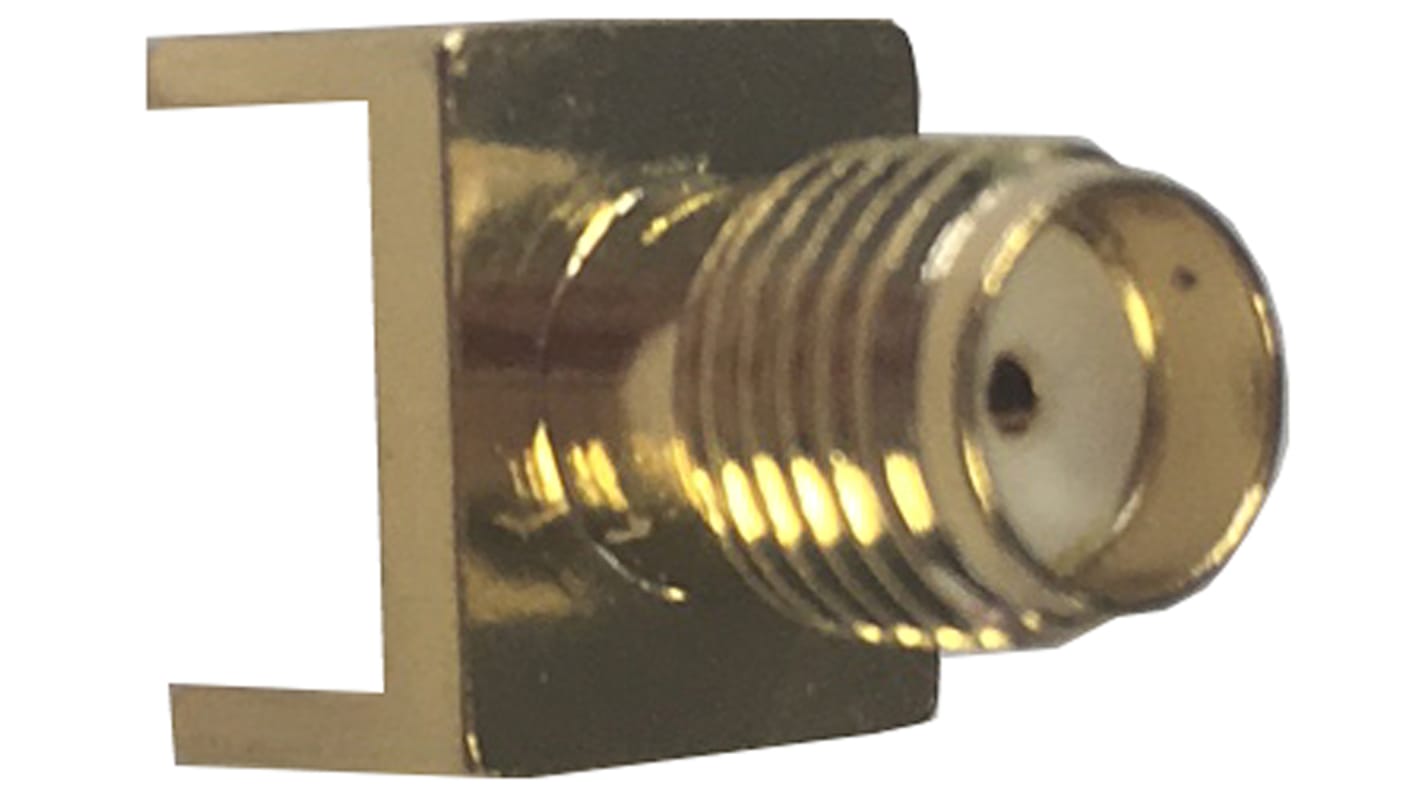

Gold-plated brass, edge-mount SMA connectors for printed circuit board (PCB) mounting. Three versions are available:

- CON-SMA-EDGE - SMA Female (RS 125-8190)
- CON-SMA-EDGE-S - Small Footprint SMA Female (RS 125-8191)
- CON-SMA-EDGE-SRP - Small Footprint SMA Female (RS 125-8192)

Straight jack, SMA female connector
Beryllium copper, gold-plated contacts
Teflon insulator
Thread: 1/4-36UNS-2A
Suitable for 1.2 to 1.6mm thickness PCB
Maximum frequency: 18GHz
Impedance: 50Ω

RF Solutions SMA Connectors

Specifications

Attribute	Value
Coaxial Connector Type	SMA Connector
Gender	Female
Mounting Type	PCB Mount
Impedance	50Ω
Termination Method	Solder
Body Orientation	Straight
Bulkhead	No
Operating Frequency	18GHz
Body Plating	Gold
Polarity	Normal
Series	CON
Contact Material	Beryllium Copper
Contact Plating	Gold
Mating Type	Quick Connect
