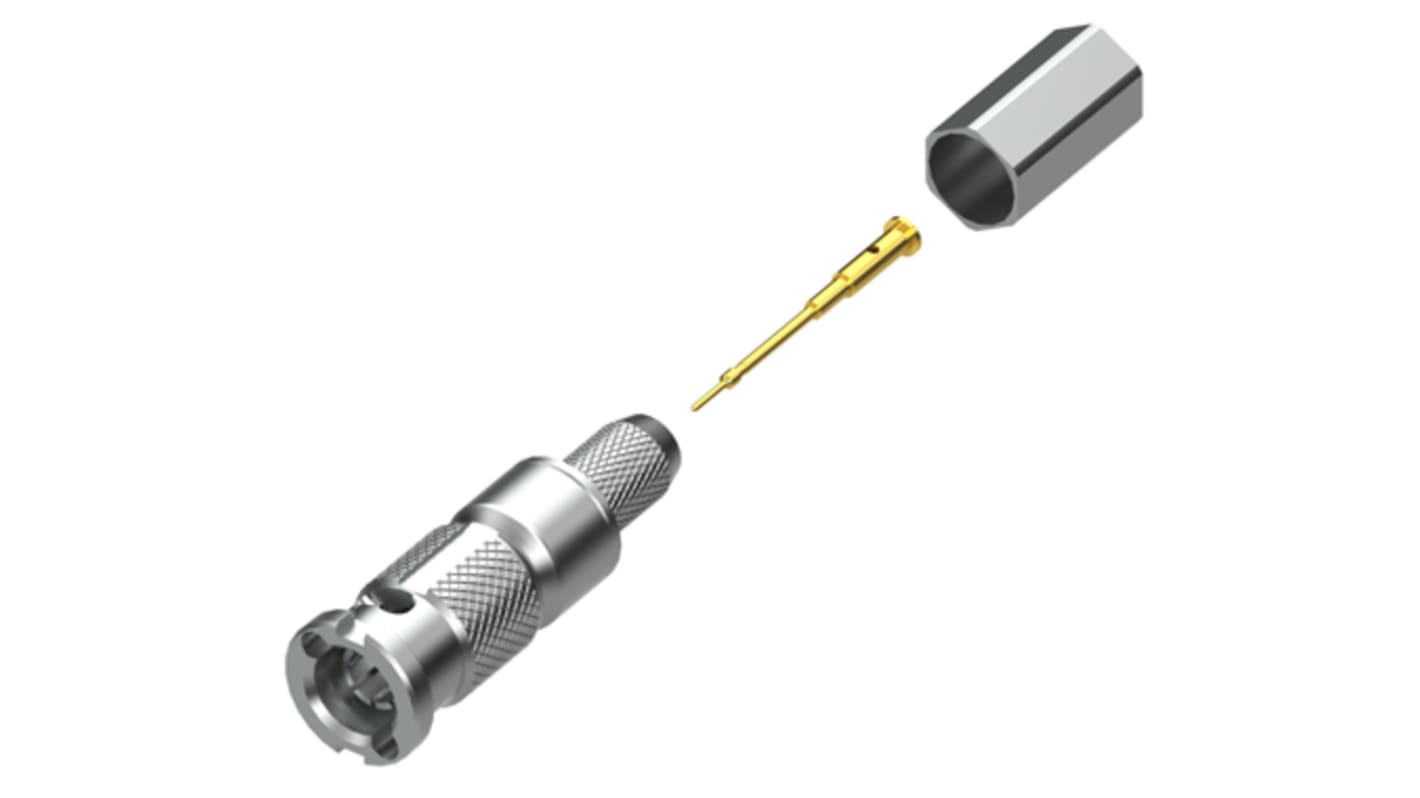

Samtec HD-BNC Series, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 123-6860
- Mfr. Part No.:
- HDBNC-P-C-GN-ST-CA8
- Manufacturer:
- Samtec
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR93.57
| Units | Per Unit |
| 1 - 9 | MYR93.57 |
| 10 - 99 | MYR91.61 |
| 100 - 249 | MYR88.89 |
| 250 - 499 | MYR86.70 |
| 500 + | MYR84.80 |
- RS Stock No.:
- 123-6860
- Mfr. Part No.:
- HDBNC-P-C-GN-ST-CA8
- Manufacturer:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details
Samtec 75 Ω BNC Cable Mount Plugs
From Samtech, a series of 75 Ω high density cable mount plugs. The BNC connectors feature a simple bayonet coupling only requiring a quarter turn to connect and disconnect. The simple to use coupling mechanism makes BNC connectors one of the commonly used connectors in the market. Suitable cable types would include RG6, Belden 1694A and Belden 1855A.
Features and Benefits
True 75 3G-SDI performance
Simple bayonet coupling
Simple bayonet coupling
Applications
Instrumentation
Security
Telecom
Broadcast
Security
Telecom
Broadcast
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Samtec BNC Range
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 75Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Size | Standard |
| Bulkhead | No |
| Body Plating | Gold |
| Series | HD-BNC |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
