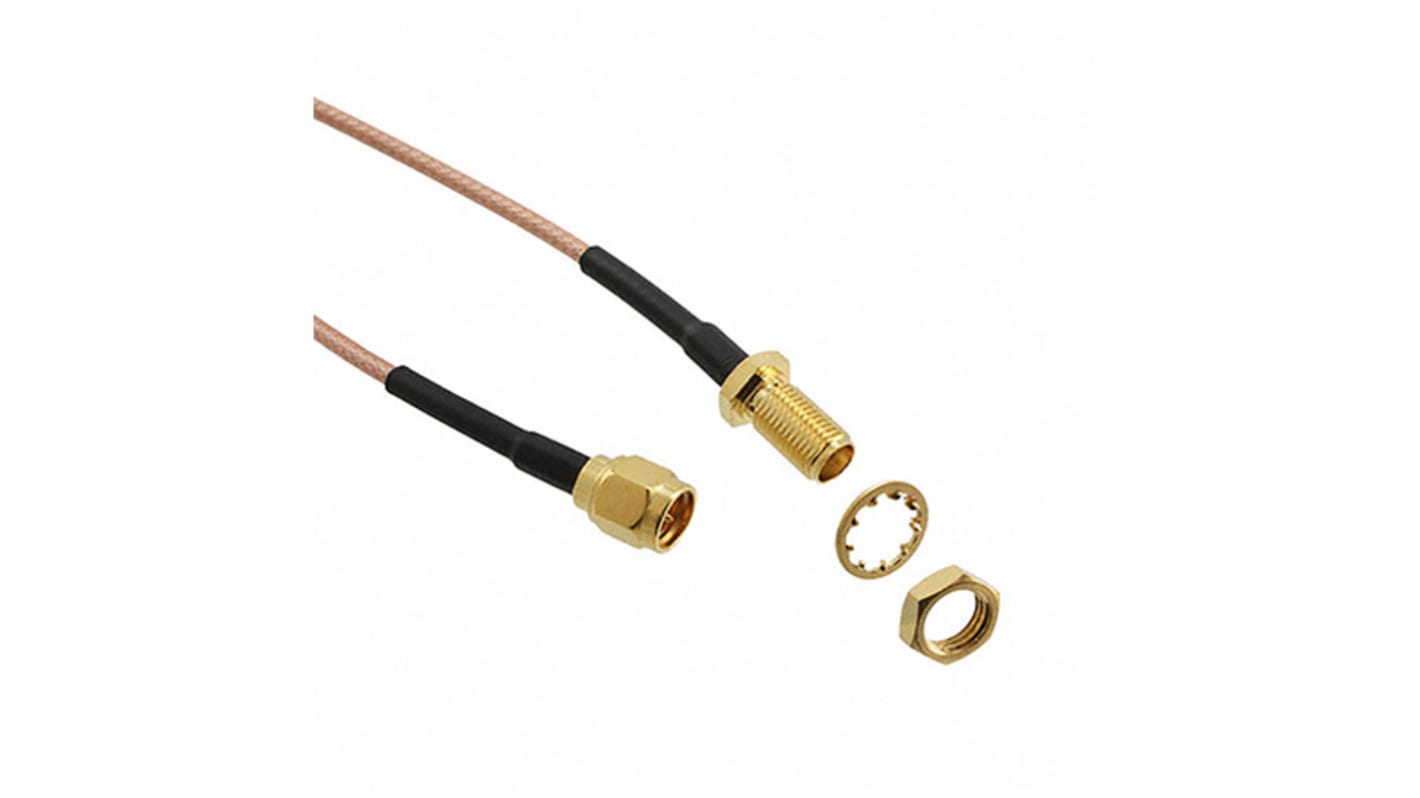

Cinch Connectors RG-316 Coaxial Cable 50 Ω

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

SMA Bulkhead Connectors

Cinch Connectivity range of professional grade bulkhead SMA connectors have a stainless steel body and gold plated contact pin. The SMA bulkhead connectors are available in a variety of configurations to suit any application. All models are highly reliable and excellent quality.

Features & Benefits

Max Frequency – 12 GHz
Impedance - 50 Ohm
Operating Temperature - 65°C to + 165°C

Cinch Connectivity SMA Coaxial Connectors

Specifications
Attribute Value
Length 610mm
Terminated/Unterminated Terminated
Connector A Male SMA
Connector B Female SMA
Coaxial Type RG-316
Characteristic Impedance 50 Ω
95 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 49.48
units
Per unit
1 +
MYR49.48
