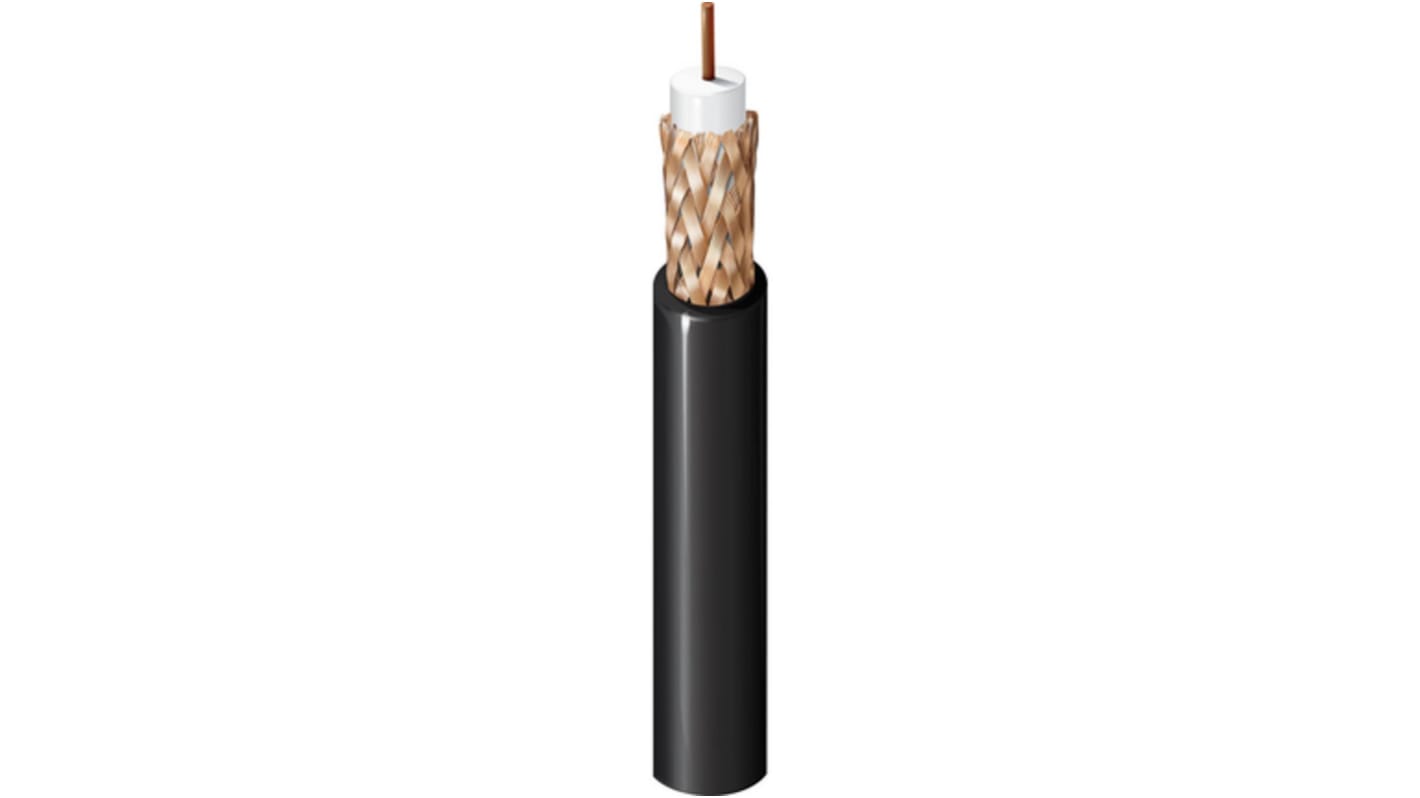

Belden Black RG59B/U Coaxial Cable 75 Ω 6.15mm OD Polyvinyl Chloride PVC Sheath 500m

  • RS Stock No. 521-8329
  • Mfr. Part No. MRG5900.00500
  • Manufacturer Belden
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NL
Product Details

RG59B/U

1/0.6mm copper-plated steel conductor, solid polyethylene insulation, plain copper braid and sheathed in PVC.

Equivalent to Alpha 9059B
Connector / Cable group F

Specifications
Attribute Value
Terminated/Unterminated Unterminated
Connector A Unterminated
Connector B Unterminated
Coaxial Type RG59B/U
Characteristic Impedance 75 Ω
Outer Diameter 6.15mm
Sheath Colour Black
Conductor Strand Type Solid
Attenuation 23 dB/100m @ 400MHz, 31.8 dB/100m @ 700MHz, 36.4 dB/100m @ 900MHz, 39.4 dB/100m @ 1GHz
Reel Length 500m
7 In Global stock for delivery within 4 - 6 working days
Price 1 Reel of 500 Metre(s)
MYR 1,695.37
Reel(s)
Per Reel
Per Metre*
1 - 5
MYR1,695.37
MYR3.391
6 +
MYR1,528.06
MYR3.056
*price indicative
