Belden 433945 Series SDI Coaxial Cable, 100m, RG6 Coaxial, Unterminated
- RS Stock No.:
- 510-2094
- Mfr. Part No.:
- 433945.00100
- Manufacturer:
- Belden
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 100 Metre(s)
MYR1,832.04
| Reel(s) | Per Reel | Per Metre* |
| 1 + | MYR1,832.04 | MYR18.32 |
| *price indicative | ||
- RS Stock No.:
- 510-2094
- Mfr. Part No.:
- 433945.00100
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

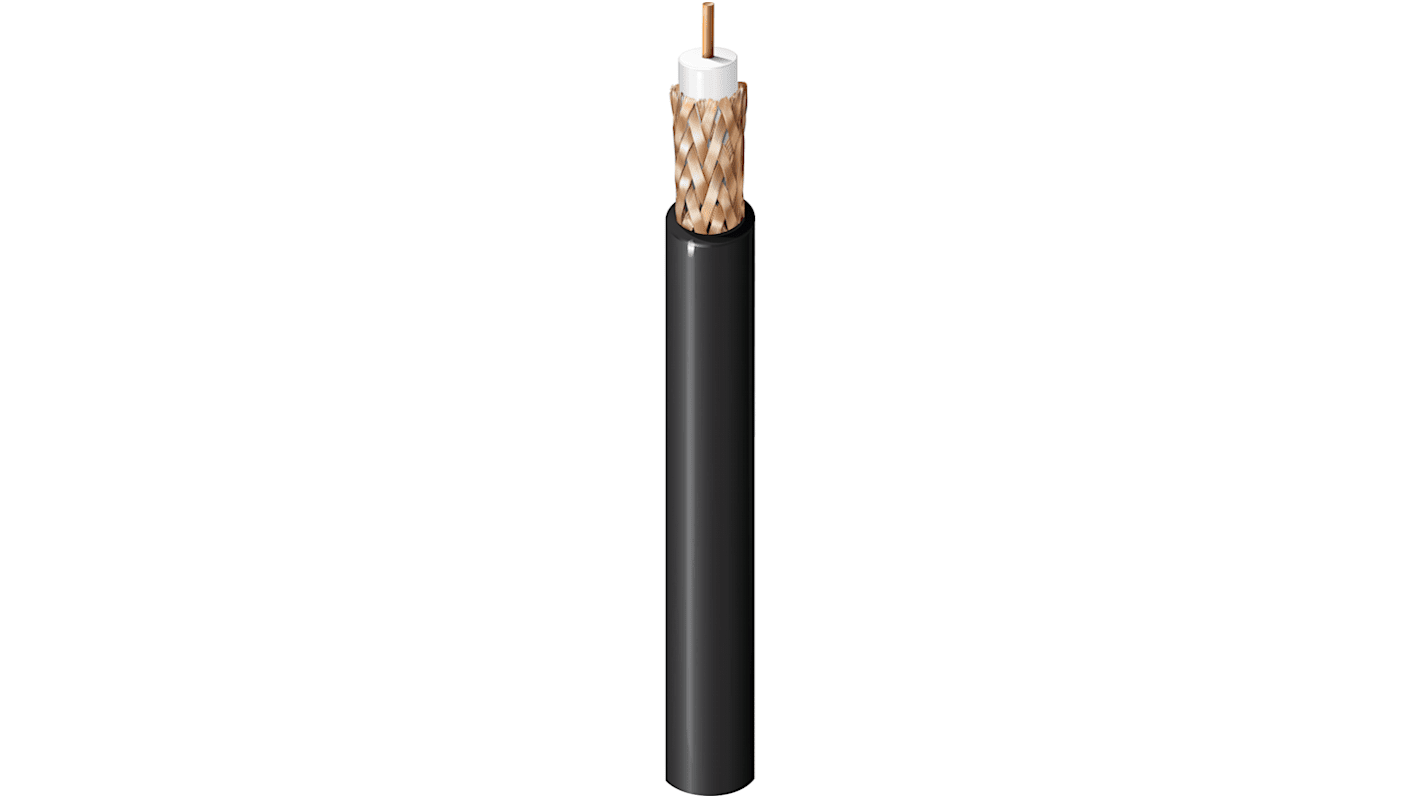

Belden SDI Coaxial Cable, 52kg/km Bulk Cable Weight, LSZH Outer Jacket - 433945 Series - 433945.00100
Looking for a trusty messenger to carry analogue signals to your surveillance devices? Go for this SDI coaxial cable from Belden. Its copper conductor material gives you a reliable connection, while braided shielding blocks out EMI to keep transmissions crystal clear. Thanks to foam polyethylene insulation, you can rest assured the cable's safe to handle without risking electric shocks. As it carries audio and video signals, this is a versatile workmate for complete coverage in security systems.
Features & Benefits
• 100m length means there's enough for lots of jobs
• LSZH jacket doesn't emit toxic fumes in a fire, ensuring user and environmental safety
• Withstands up to 30N of pull tension, making it strong enough for tough conditions
• LSZH jacket doesn't emit toxic fumes in a fire, ensuring user and environmental safety
• Withstands up to 30N of pull tension, making it strong enough for tough conditions
Applications
• Packaging facilities
• Shopping centres
• Office buildings
• Shopping centres
• Office buildings
Does this cable come with connectors?
This is an unterminated cable, so it's easy to cut and you can connect it according to the needs of your system.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG6 |
| Outer Diameter | 6.75mm |
| CPR Certification | Eca |
| Characteristic Impedance | 75 Ω |
| Attenuation | 2.1 dB/100m @ 10 MHz |
| Length | 100m |
| Sheath Colour | Grey |
| Voltage Rating | 300 V |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Conductor Strand Type | Solid |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Number of Strands | 1 |
| Operating Temperature Range | -30 → +70 °C |
| Size of Strands | 18 AWG |
| Conductor Material | Bare Copper |
| Capacitance | 53.5pF/m |
| Core Strands | 1/1.02 |
| Standards Met | Euroclass Eca |
| Shielding | Bare Copper Braid |
| Maximum Operating Temperature | +70°C |
| Series | 433945 |
| Minimum Operating Temperature | -30°C |
| Insulation Material | Foam PE |
| Velocity ratio | 83% |
