Belden 3092A Series SDI Coaxial Cable, 152.4m, RG6/U Coaxial, Unterminated
- RS Stock No.:
- 382-6962
- Mfr. Part No.:
- 3092A X7E500
- Manufacturer:
- Belden
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 152 Metre(s)
MYR5,606.85
| Reel(s) | Per Reel | Per Metre* |
| 1 + | MYR5,606.85 | MYR36.887 |
| *price indicative | ||
- RS Stock No.:
- 382-6962
- Mfr. Part No.:
- 3092A X7E500
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

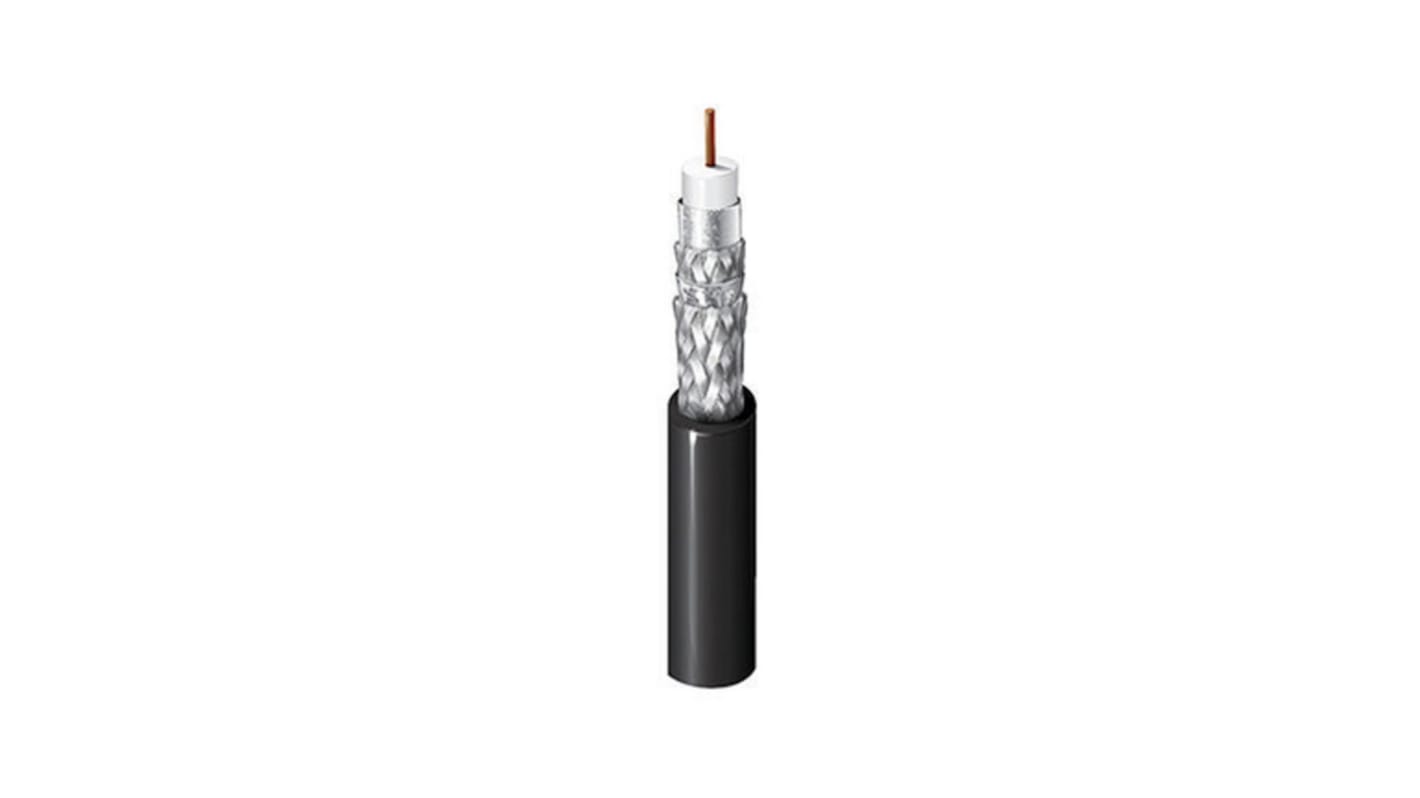

Belden Coaxial Cable, RG6 Type, 152.4m Length - 3092A Series - 3092A X7E500
Achieve effective links between industrial devices with this RG6/U coaxial cable from Belden. It's a control bus component designed for use with ControlNet applications. The polyethylene foam insulation withstands vibrations and chemical damage to keep the core protected even in demanding conditions. Aluminium wire braid shielding helps prevent EMI, keeping your signals strong. As a velocity ratio of 0.83 establishes fast transmission speeds, you can be sure of reliable communication between equipment.
Features & Benefits
• PVC cable jacket is resistant to chemicals and abrasion for use in harsh environments
• Solid copper conductor is highly conductive for fast and reliable signal transfer
• Solid copper conductor is highly conductive for fast and reliable signal transfer
Applications
• PLCs
• I/O chassis
• Computers
• Robotic applications
• Human-machine interfaces
• I/O chassis
• Computers
• Robotic applications
• Human-machine interfaces
What types of coaxial cables are there?
The two main types of coaxial cables have either 75Ω or 50Ω impedance. The first, like this one from Belden, is used for video signals, while a 50Ω coaxial cable is more suitable for data and wireless operations.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG6/U |
| Outer Diameter | 7.57mm |
| CPR Certification | Eca |
| Characteristic Impedance | 75 Ω |
| Attenuation | 1.97 dB/100ft @ 100MHz, 2.82 dB/100ft @ 200MHz, 3.48 dB/100ft @ 300MHz, 4.04 dB/100ft @ 400MHz |
| Length | 152.4m |
| Sheath Colour | Blue |
| Voltage Rating | 300 V |
| Conductor Strand Type | Solid |
| Size of Strands | 18 AWG |
| Core Strands | 1/1.02 |
| Shielding | Aluminium Wire Braid |
| Operating Temperature Range | -30 → +75 °C |
| Conductor Material | Bare Copper Clad Steel |
| Standards Met | Euroclass Eca |
| Maximum Operating Temperature | +75°C |
| Capacitance | 53.136pF/m |
| Series | 3092A |
| Velocity ratio | 83% |
| Minimum Operating Temperature | -30°C |
| Number of Strands | 1 |
| Sheath Material | Polyvinyl Chloride PVC |
| Insulation Material | Foam PE |
