- RS Stock No.:
- 260-5512
- Mfr. Part No.:
- EZ141AL.TP.3M
- Manufacturer:
- Times Microwave
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price 1 Reel of 3 Metre(s)
MYR1,030.28
Reel(s) | Per Reel | Per Metre* |
1 + | MYR1,030.28 | MYR343.427 |
*price indicative |
- RS Stock No.:
- 260-5512
- Mfr. Part No.:
- EZ141AL.TP.3M
- Manufacturer:
- Times Microwave
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

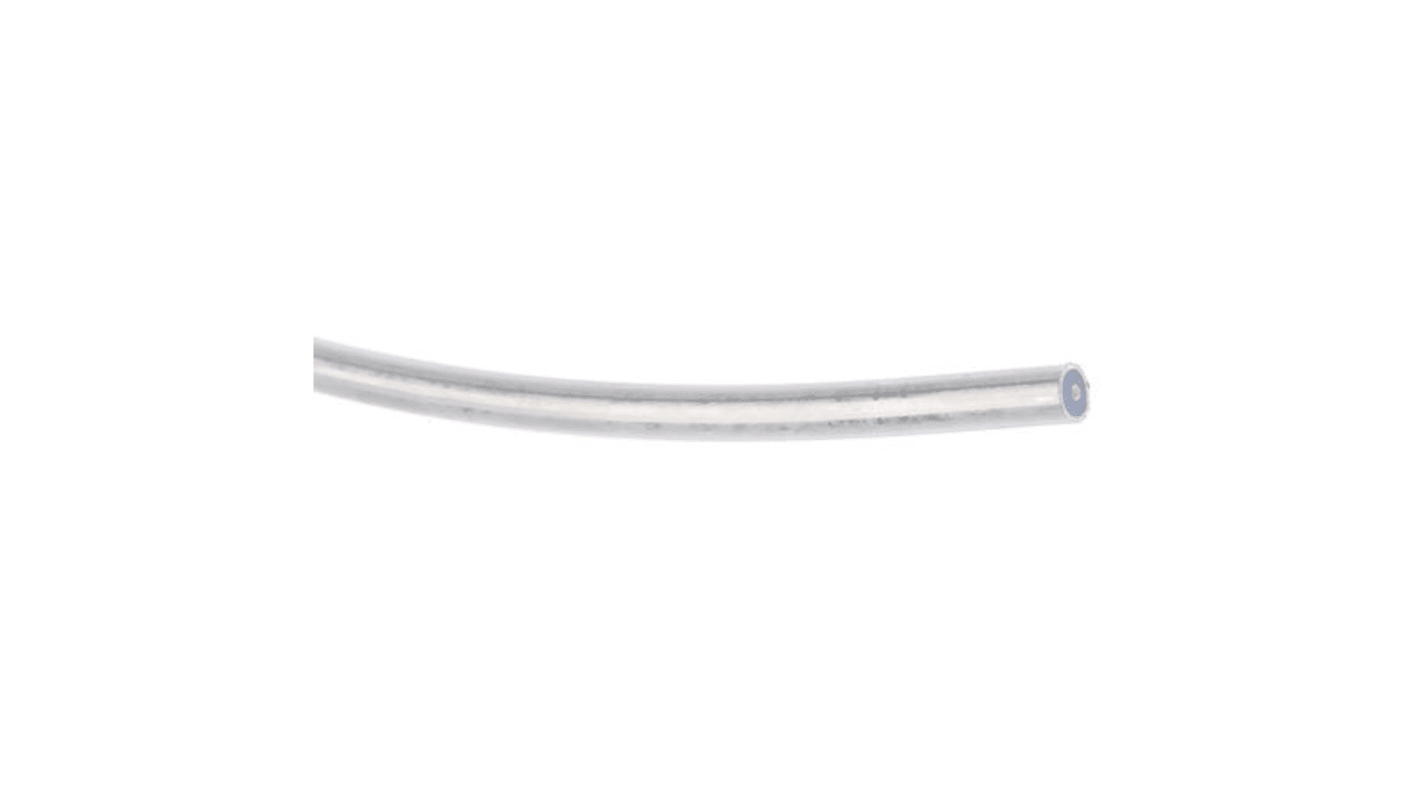

Coaxial Cable RG402, 405
Cable for microwave applications made of silver-coated, copped plated steel strand, with a
PTFE dielectric. The shielding can be made of copper or aluminium (AL-TP). With aluminium, the cable is easier to shape and lighter in weight (over 40% lighter).
PTFE dielectric. The shielding can be made of copper or aluminium (AL-TP). With aluminium, the cable is easier to shape and lighter in weight (over 40% lighter).
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG402 |
Outer Diameter | 3.58mm |
Characteristic Impedance | 50 Ω |
Attenuation | 2.18dB/100m@18GHz, 2.1dB/100m@17GHz, 2.26dB/100m@19GHz, 2.34dB/100m@20GHz |
Length | 3m |
Conductor Strand Type | Solid |
Number of Strands | 1 |
Maximum Operating Temperature | +125°C |
Size of Strands | 0.92 mm |
Conductor Material | Silver Plated Copper Clad Steel |
Capacitance | 98.1pF/m |
Core Strands | 1/0.9 |
Operating Temperature Range | -40 → +125 °C |
Minimum Operating Temperature | -40°C |
Velocity ratio | 69.5% |
Insulation Material | PTFE |
Sheath Material | Aluminium |
