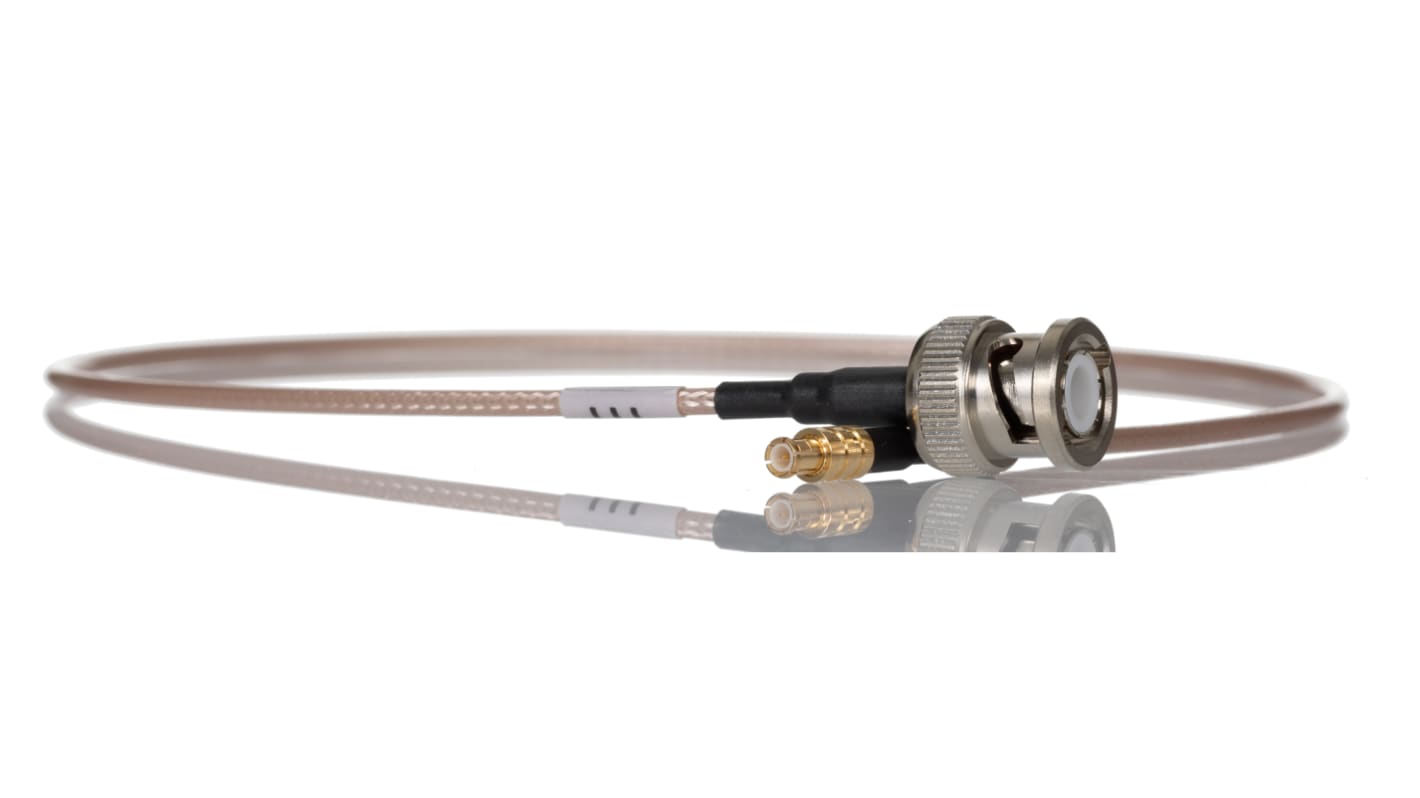

Samtec RF316 Series BNC to MCX Coaxial Cable, 500mm, RF Coaxial, Terminated
- RS Stock No.:
- 208-9144
- Mfr. Part No.:
- RF316-04SP3-02SP1-0500
- Manufacturer:
- Samtec
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR93.08
| Units | Per Unit |
| 1 - 9 | MYR93.08 |
| 10 - 24 | MYR90.29 |
| 25 - 49 | MYR87.57 |
| 50 + | MYR84.94 |
- RS Stock No.:
- 208-9144
- Mfr. Part No.:
- RF316-04SP3-02SP1-0500
- Manufacturer:
- Samtec
Legislation and Compliance
Product Details
Samtec RF316 Series Coaxial Cable, 1.25dB Attenuation, 96.432pF/m Capacitance - RF316-04SP3-02SP1-0500
This Samtec coaxial cable boasts high-quality materials including silver plated copper, BNC and MCX connectors, and a high temperature range of -50°C to +165°C. With a 50 ohm characteristic impedance, this cable provides reliable signal transmission in various applications.
Features & Benefits
• Silver plated copper conductor ensures excellent signal conductivity
• BNC and MCX connectors offer versatile connectivity options
• 50 ohm impedance for consistent signal transmission
• High temperature range of -50°C to +165°C for reliable performance in extreme conditions
• FEP sheath provides protection and durability
• Silver plated copper shielding minimises signal interference
• PTFE insulation ensures signal integrity
• BNC and MCX connectors offer versatile connectivity options
• 50 ohm impedance for consistent signal transmission
• High temperature range of -50°C to +165°C for reliable performance in extreme conditions
• FEP sheath provides protection and durability
• Silver plated copper shielding minimises signal interference
• PTFE insulation ensures signal integrity
Applications
• Suitable for RF signal transmission in various settings
• Can be used for high temperature environments requiring reliable signal transmission
• Can be used for high temperature environments requiring reliable signal transmission
Can it withstand high temperatures?
It has an operating temperature range of -50°C to +165°C, making it suitable for extreme conditions.
Will it provide reliable signal transmission?
Yes, the 50 ohm impedance and high-quality materials ensure consistent performance.
Is this cable suitable for RF applications?
Yes, it is designed for RF signal transmission in various industries.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Terminated |
| Connector 1 | BNC |
| Coaxial Type | RF |
| Connector 2 | MCX |
| Outer Diameter | 2.54mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 1.25 dB |
| Length | 500mm |
| Sheath Colour | Amber |
| Minimum Operating Temperature | -50°C |
| Conductor Material | Silver Plated Copper |
| Insulation Material | PTFE |
| Shielding | Silver Plated Copper Clad Steel |
| Capacitance | 96.432pF/m |
| Maximum Operating Temperature | +165°C |
| Series | RF316 |
| Operating Temperature Range | -50 → +165 °C |
| Sheath Material | FEP |
