Belden 4K Series Coaxial Cable, 304.8m, RG11/U Coaxial, Unterminated
- RS Stock No.:
- 187-6114
- Mfr. Part No.:
- 4731ANH 0101000
- Manufacturer:
- Belden
Temporarily out of stock - back order for despatch 06/08/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR88.826
| Units | Per Unit | Per Reel* |
| 305 + | MYR88.826 | MYR27,091.93 |
| *price indicative | ||
- RS Stock No.:
- 187-6114
- Mfr. Part No.:
- 4731ANH 0101000
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

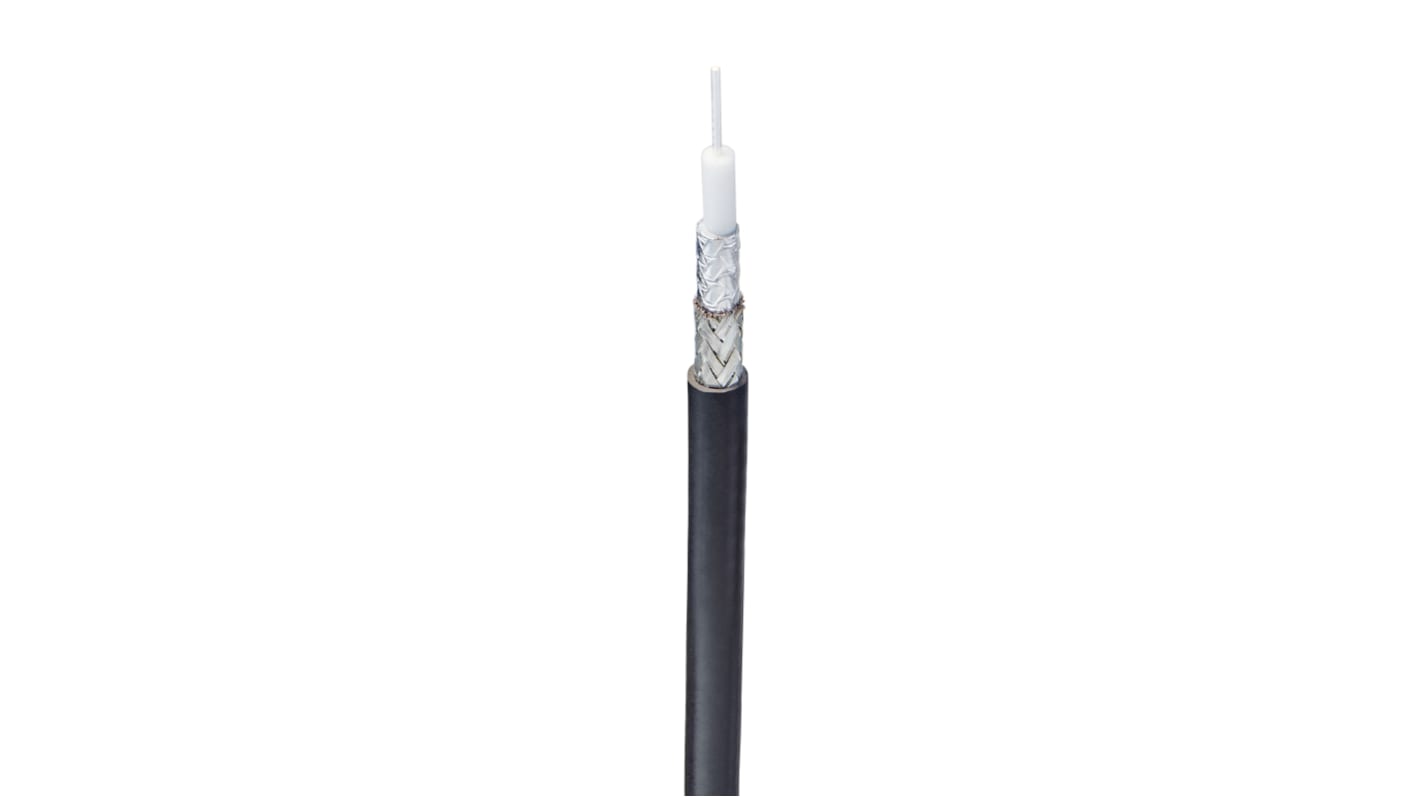

12 GHz Coax, 4K UHD Precision Video Cable, RG-11U Coax, 14 AWG solid .064" silver-plated copper conductor, gas-injected foam HDPE insulation, Duofoil® bonded to core + tinned copper braid shield (95% coverage) + bonded to jacket, LSZH jacket.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG11/U |
| Outer Diameter | 10.16mm |
| CPR Certification | Dca |
| Characteristic Impedance | 75 Ω |
| Attenuation | 0.54 dB/100 m |
| Length | 304.8m |
| Sheath Colour | Black |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Conductor Strand Type | Solid |
| Series | 4K |
| Operating Temperature Range | -30 → +75 °C |
| Minimum Operating Temperature | -30°C |
| Size of Strands | 14 AWG |
| Conductor Material | Silver Plated Copper |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Insulation Material | Foam HDPE |
| Shielding | Tinned Copper Braid |
| Capacitance | 50.85pF/m |
| Maximum Operating Temperature | +75°C |
| Velocity ratio | 0.85 |
