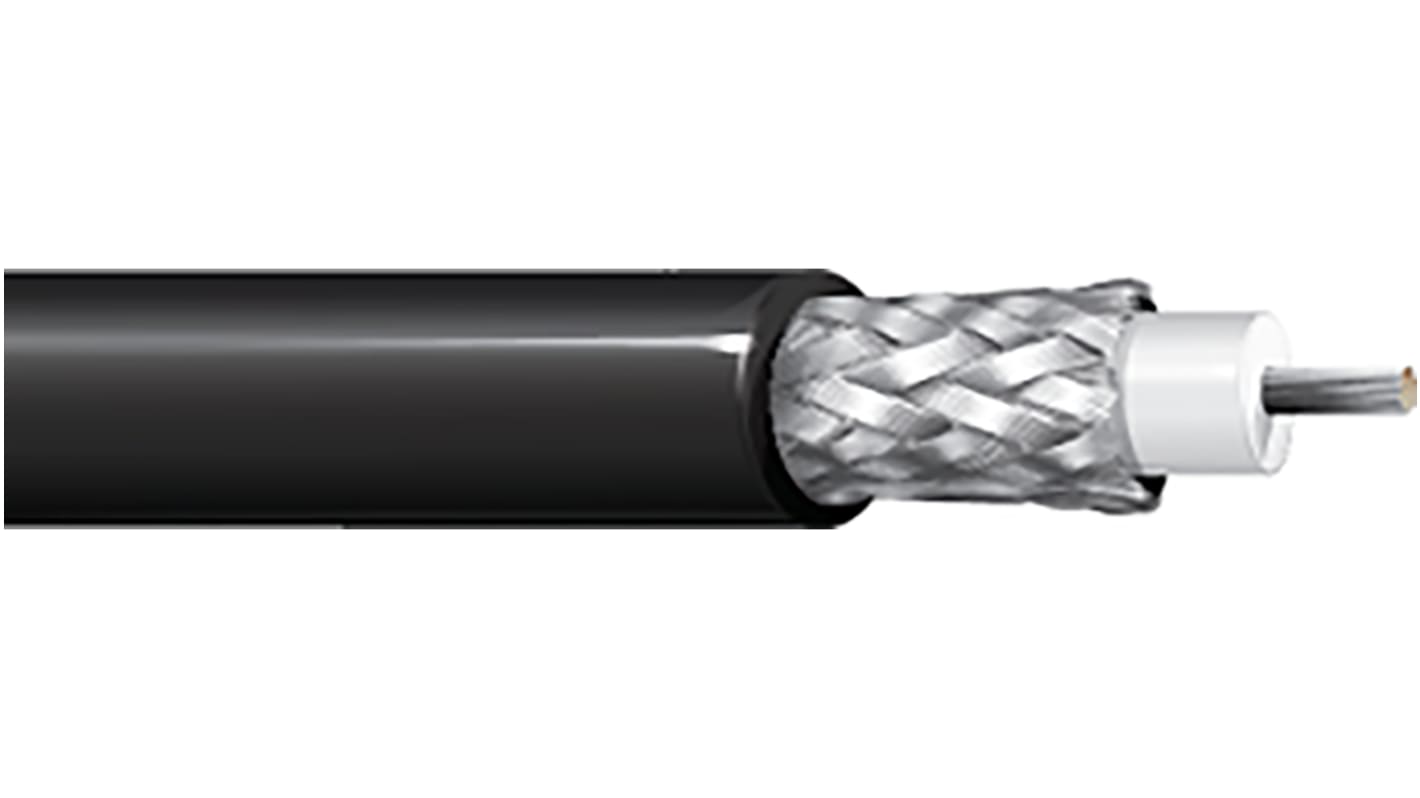

Belden 8219 Series Coaxial Cable, 304.8m, RG58A/U Coaxial, Unterminated
- RS Stock No.:
- 187-6112
- Mfr. Part No.:
- 8219 0101000
- Manufacturer:
- Belden
Temporarily out of stock - back order for despatch 08/08/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR21.821
| Units | Per Unit | Per Reel* |
| 305 + | MYR21.821 | MYR6,655.405 |
| *price indicative | ||
- RS Stock No.:
- 187-6112
- Mfr. Part No.:
- 8219 0101000
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Belden Series 8219 Coaxial Cable, 0.043dB/100m Attenuation, 86.94pF/m Capacitance - 8219 0101000
This coaxial cable by Belden, with an impedance of 53.5 Ω, is designed to provide reliable connectivity in various applications. With high-quality materials, this cable ensures optimal performance and durability.
Features & Benefits
• Low attenuation design for minimal signal loss
• High capacitance for efficient data transmission
• Flame retardant properties ensure safety in all environments
• Tinned copper conductor for enhanced conductivity
• Stranded core construction for flexibility and durability
• FPE insulation for reliable protection against external factors
• High velocity ratio for fast data transfer
• PVC sheath for additional insulation and protection
• High capacitance for efficient data transmission
• Flame retardant properties ensure safety in all environments
• Tinned copper conductor for enhanced conductivity
• Stranded core construction for flexibility and durability
• FPE insulation for reliable protection against external factors
• High velocity ratio for fast data transfer
• PVC sheath for additional insulation and protection
Applications
• Suitable for outdoor, aerial use
• Ideal for high-frequency data transmission applications
• Ideal for high-frequency data transmission applications
Can it be used outdoors?
Yes, it is suitable for outdoor and aerial installations.
Will it provide fast data transfer speeds?
Yes, the high velocity ratio ensures efficient data transmission.
Is it safe to use in hazardous locations?
No, it is not recommended for use in hazardous environments.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG58A/U |
| Outer Diameter | 4.9mm |
| CPR Certification | Fca |
| Characteristic Impedance | 53.5 Ω |
| Attenuation | 0.043 dB/100 m |
| Length | 304.8m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Fire Behaviour | Flame Retardant |
| Core Strands | 19/0.28 |
| Sheath Material | Polyvinyl Chloride PVC |
| Capacitance | 86.94pF/m |
| Shielding | Tinned Copper |
| Insulation Material | FPE |
| Velocity ratio | 0.73 |
| Conductor Material | Tinned Copper |
| Size of Strands | 20 AWG |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80 °C |
| Number of Strands | 19 |
| Series | 8219 |
