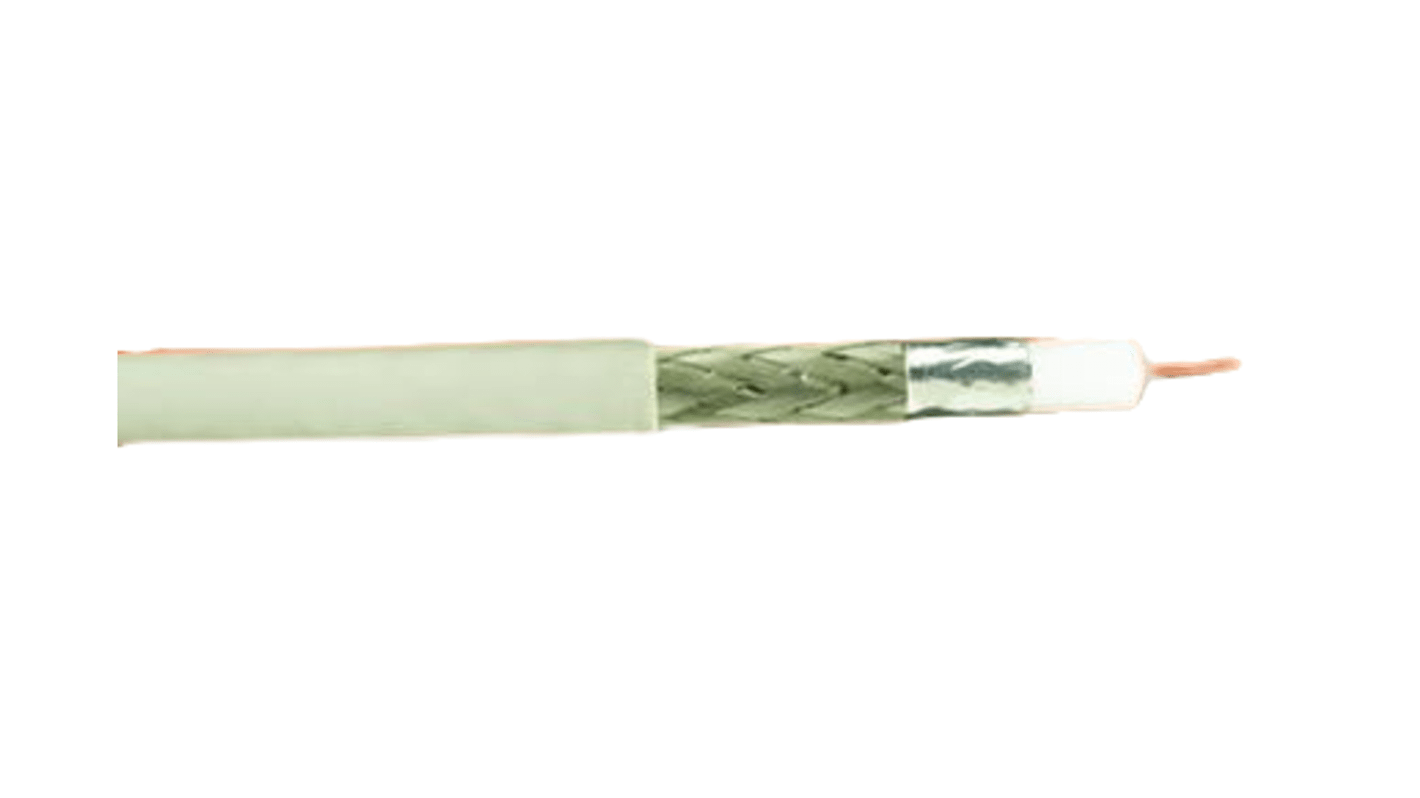

RG 213/U coaxial cable
The Alpha Wire RG 213/U MIL-C 17D approved coaxial cable has been precisely designed to broadcast video transmission at the highest quality whilst achieving low capacitance, high velocities of propagation and tight tolerances for maximum signal integrity.
3.09 mm bare copper core
Polypropylene dielectric
Bare copper braid covered with a 10.46 mm black PVC sheath
Polypropylene dielectric
Bare copper braid covered with a 10.46 mm black PVC sheath
Approvals
MIL-C 17D
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG213/U |
Outer Diameter | 10.29mm |
Characteristic Impedance | 50 Ω |
Attenuation | 0.27 dB/100ft @ 1MHz, 0.55 dB/100ft @ 10MHz |
Length | 30m |
Sheath Colour | Black |
Conductor Strand Type | Stranded |
Capacitance | 101.024pF/m |
Conductor Material | Bare Copper |
Size of Strands | 0.762 mm |
Series | MEC COAXIAL |
Core Strands | 7/0.03 |
Number of Strands | 7 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +80°C |
Sheath Material | Polyvinyl Chloride PVC |
Insulation Material | PE |
Velocity ratio | 66% |
Operating Temperature Range | -40 → +80 °C |
