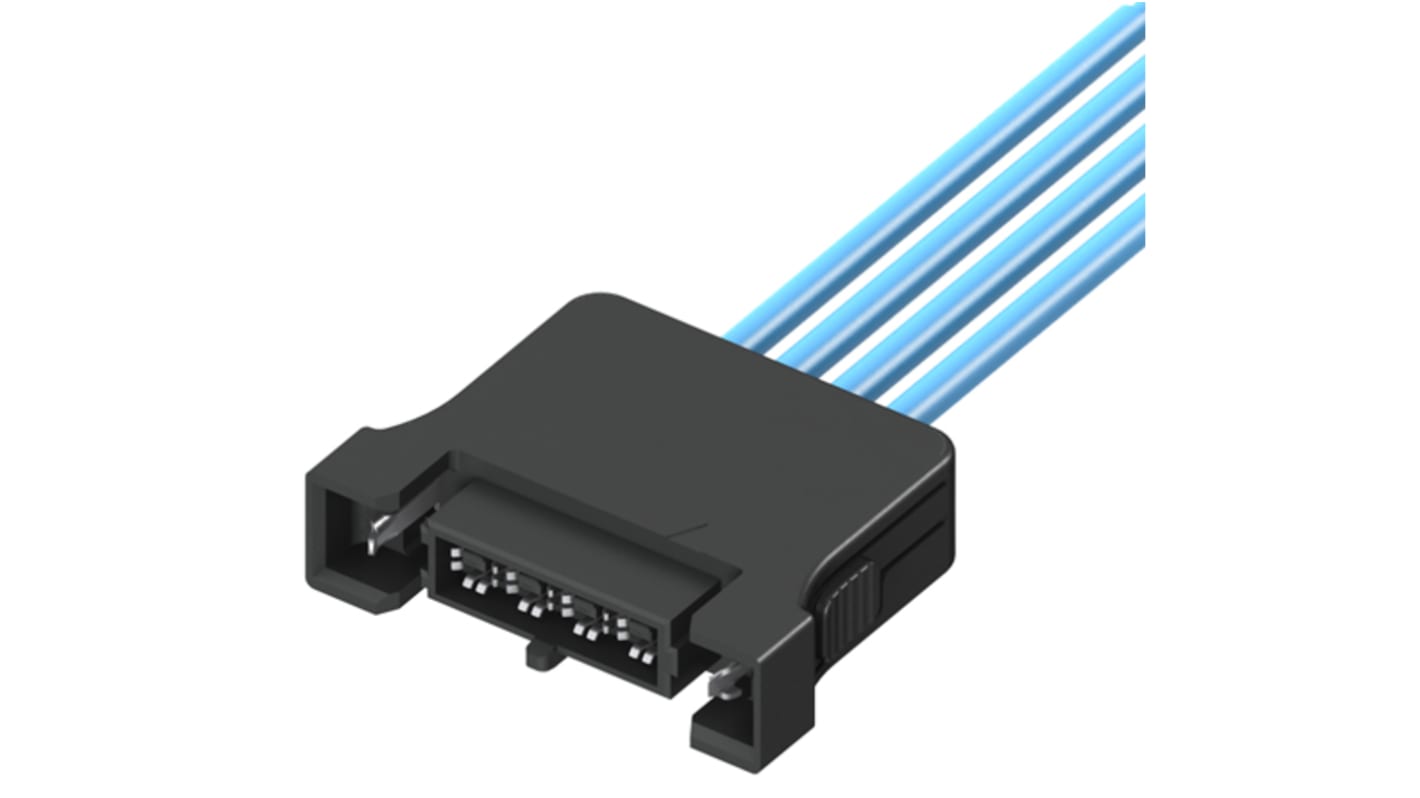

Samtec IJ5C Series Male IsoRate to Male IsoRate Coaxial Cable, 100mm, CTB-2650F-1 Coaxial, Terminated
- RS Stock No.:
- 123-6950
- Mfr. Part No.:
- IJ5C-08-0100-S-D-NUS-1
- Manufacturer:
- Samtec
Temporarily out of stock - back order for despatch 03/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR359.40
| Units | Per Unit |
| 1 - 9 | MYR359.40 |
| 10 - 49 | MYR348.63 |
| 50 - 99 | MYR337.85 |
| 100 - 249 | MYR330.65 |
| 250 + | MYR323.45 |
- RS Stock No.:
- 123-6950
- Mfr. Part No.:
- IJ5C-08-0100-S-D-NUS-1
- Manufacturer:
- Samtec
Legislation and Compliance
Product Details
Samtec IJ5C5 50 Ω Cable Assemblies
From Samtec, a series of high isolation 50 Ω RF cable assemblies. The double ended wire to board cable assemblies utilise a 4.0 mm pitch IJ5C connector housed in black shielded thermoplastic housings. The connectors feature a positive latching system for secure connections. The cables are made with high performance 26 AWG shielded cable with a FEP outer jacket. Cable assemblies are available in 100 mm and 300 mm lengths in 1, 2, 4, 6 and 8 positions.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Samtec Range
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Terminated |
| Connector 1 | IsoRate |
| Coaxial Type | CTB-2650F-1 |
| Connector 2 | IsoRate |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Outer Diameter | 1.80mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 3 dB |
| Length | 100mm |
| Sheath Colour | Blue |
| Current Rating | 2.5 A |
| Standards Met | cULus Recognised |
| Maximum Operating Temperature | +90°C |
| Operating Temperature Range | -40 → +90 °C |
| Minimum Operating Temperature | -40°C |
| Conductor Material | Silver Plated Copper |
| Shielding | Silver Plated Copper |
| Insulation Material | Foam FEP |
| Series | IJ5C |
