Alpha Wire Coaxial Cable, 100m, Micro Coax Coaxial, Unterminated
- RS Stock No.:
- 122-2319
- Mfr. Part No.:
- 9442 WH033
- Manufacturer:
- Alpha Wire
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 100 Metre(s)
MYR1,530.55
| Reel(s) | Per Reel | Per Metre* |
| 1 + | MYR1,530.55 | MYR15.306 |
| *price indicative | ||
- RS Stock No.:
- 122-2319
- Mfr. Part No.:
- 9442 WH033
- Manufacturer:
- Alpha Wire
Technical data sheets
Legislation and Compliance
Product Details

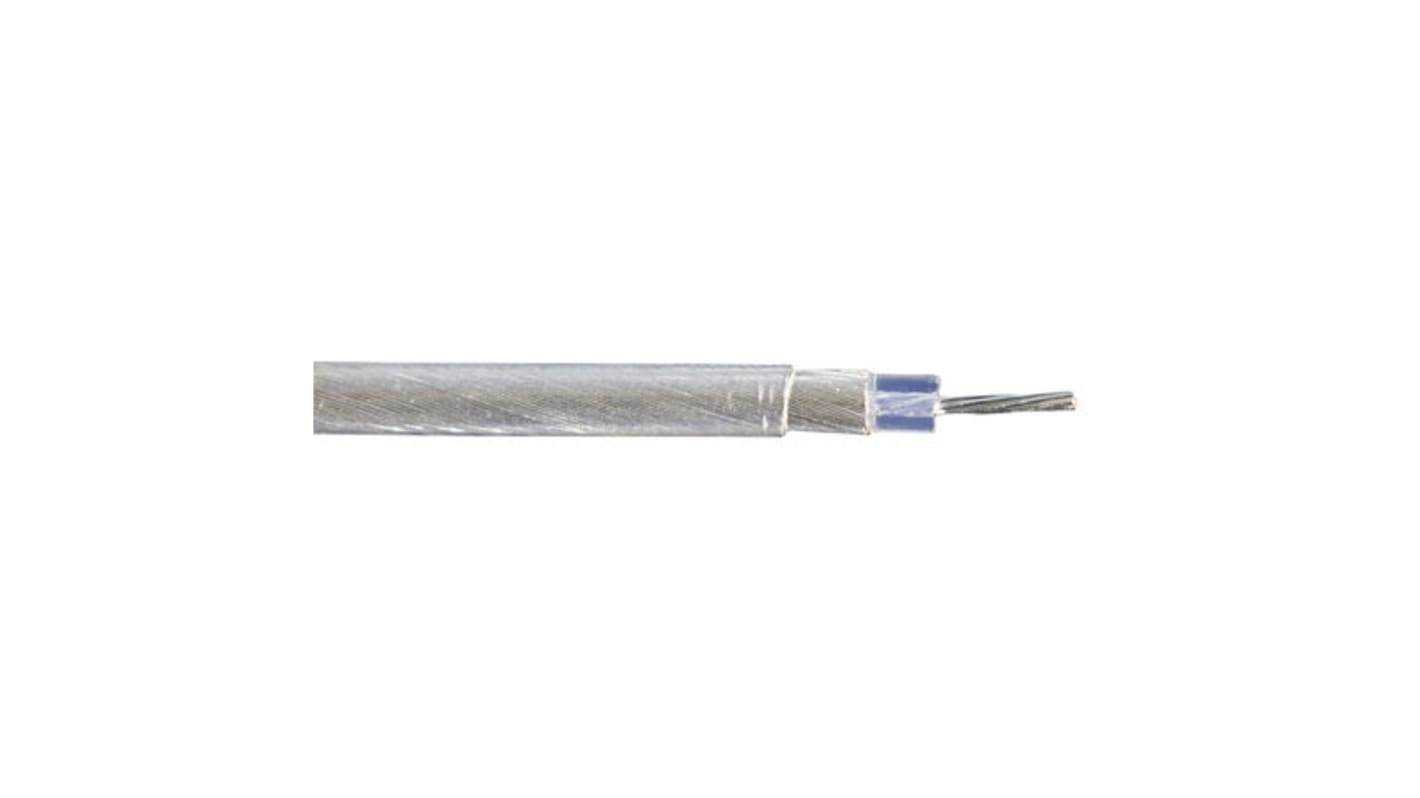

Alpha Wire Micro Coax 50Ohm Coaxial Cable
Micro coaxial cable is an ideal space saving solution. Application routing becomes so much easier in areas such as medical probes, endoscopy systems, oximetry systems and industrial inspection.
Features and Benefits
• Ideal for areas with limited space
• High strength silver plated, tinned or copper alloys
• Rated to + 200°C
• PFA dielectric and jacket
• Jacket provides stable properties for outstanding signal integrity low capacitance and consistent controlled impedance
• High strength silver plated, tinned or copper alloys
• Rated to + 200°C
• PFA dielectric and jacket
• Jacket provides stable properties for outstanding signal integrity low capacitance and consistent controlled impedance
Standards
UL AWM 1745
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | Micro Coax |
| Outer Diameter | 0.3mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 0.7 dB/m @ 10 MHz |
| Length | 100m |
| Sheath Colour | White |
| Conductor Strand Type | Stranded |
| Sheath Material | Perfluoroalkoxy (PFA) |
| Core Strands | 7/0.025 |
| Number of Strands | 7 |
| Capacitance | 110.2pF/m |
| Shielding | Tinned Copper Spiral |
| Insulation Material | PFA |
| Velocity ratio | 70% |
| Conductor Material | Silvered Copper |
| Size of Strands | 0.025 mm |
| Minimum Operating Temperature | -70°C |
| Maximum Operating Temperature | +150°C |
| Standards Met | CE EU Directive 2011/65/EU, CSA, REACH Regulation EC 1907/2006, UL |
| Operating Temperature Range | -70 → +150 °C |
