RS PRO Male BNC to Male BNC Coaxial Cable, 500mm, RG59 Coaxial, Terminated
- RS Stock No.:
- 122-2147
- Manufacturer:
- RS PRO
41 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
322 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR37.41
| Units | Per Unit |
| 1 - 9 | MYR37.41 |
| 10 - 19 | MYR36.65 |
| 20 - 49 | MYR35.52 |
| 50 - 249 | MYR34.68 |
| 250 + | MYR28.55 |
- RS Stock No.:
- 122-2147
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

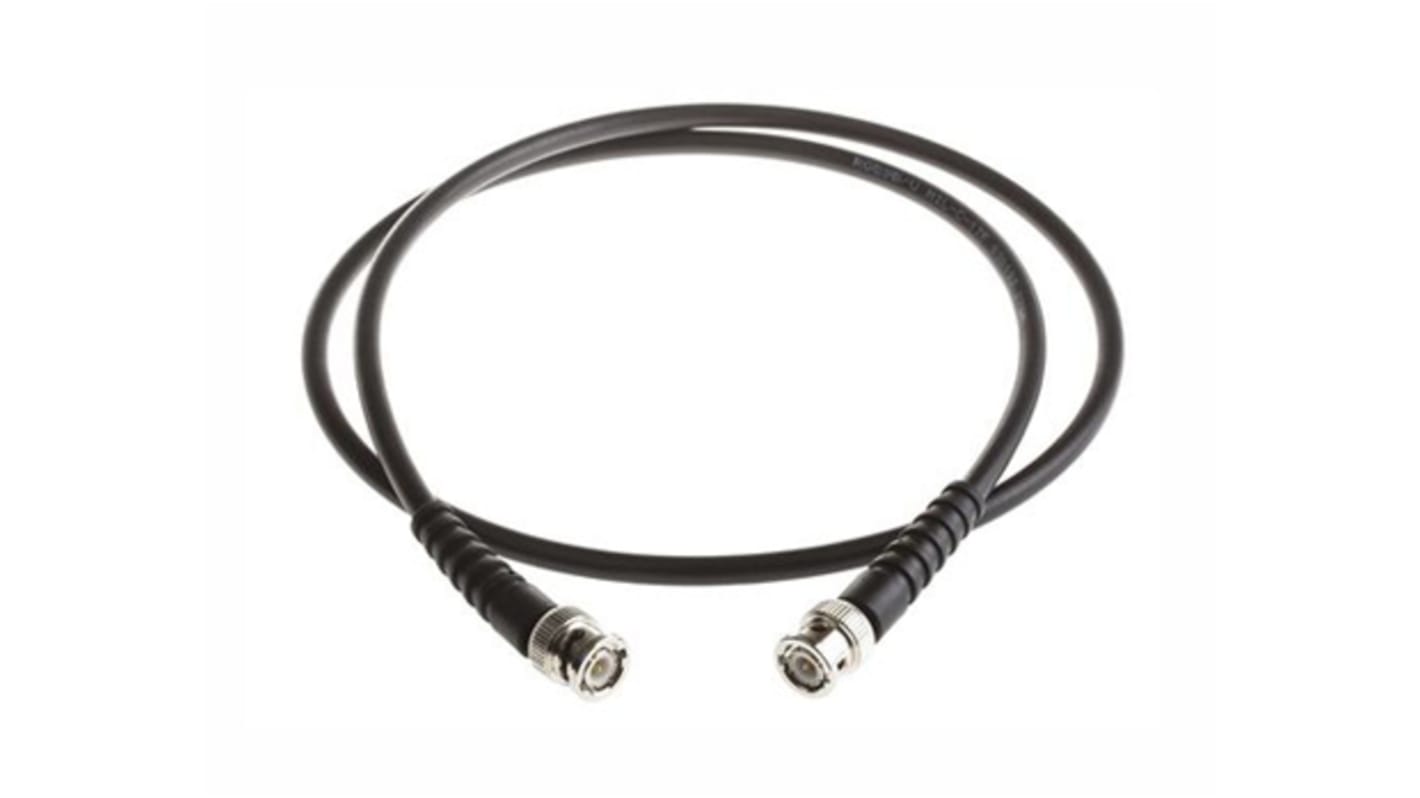

RS PRO Male BNC to Male BNC RG59 Coaxial Cable, 75 Ω
This 75 Ω coaxial cable from RS PRO is ideal for transmitting strong, clear in low-power video applications. It's commonly used in households to connect televisions, as well as in commercial applications such as CCTV and cable/satellite receiver systems.
The cable is shielded to protect it from electromagnetic interference (EMI), ensuring an uninterrupted signal. It's also protected against mechanical damage thanks to its durable heat shrink tubing, which is resistant to corrosion and abrasion. The tubing also provides good electrical insulation, so it keeps you and your equipment safe from electric shocks.
To ensure a secure connection, the cable is terminated at each end with standard BNC (Bayonet Neill-Concelman) straight plugs. These bayonet-type connectors are quick and easy to connect and disconnect, requiring only a quarter turn to attach.
The cable is shielded to protect it from electromagnetic interference (EMI), ensuring an uninterrupted signal. It's also protected against mechanical damage thanks to its durable heat shrink tubing, which is resistant to corrosion and abrasion. The tubing also provides good electrical insulation, so it keeps you and your equipment safe from electric shocks.
To ensure a secure connection, the cable is terminated at each end with standard BNC (Bayonet Neill-Concelman) straight plugs. These bayonet-type connectors are quick and easy to connect and disconnect, requiring only a quarter turn to attach.
Features and Benefits
• Characteristic impedance of 75 Ω
• RG59 (Radio Guide) coaxial type
• Connector A is a male BNC connector
• Connector B is a male BNC connector
• BNC connector type
• Length of 500 mm
• Terminated
• RG59 (Radio Guide) coaxial type
• Connector A is a male BNC connector
• Connector B is a male BNC connector
• BNC connector type
• Length of 500 mm
• Terminated
Specifications
Attribute | Value |
|---|---|
| Connector 1 | BNC |
| Terminated/Unterminated | Terminated |
| Coaxial Type | RG59 |
| Connector 2 | BNC |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Outer Diameter | 6.15mm |
| Characteristic Impedance | 75 Ω |
| Attenuation | 0.43 dB/m @ 50 MHz |
| Length | 500mm |
| Sheath Colour | Black |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80 ℃ |
| Maximum Operating Temperature | +80°C |
| Velocity ratio | 0.66 |
| Insulation Material | PE |
| Sheath Material | PVC |
| Conductor Material | Copper |
