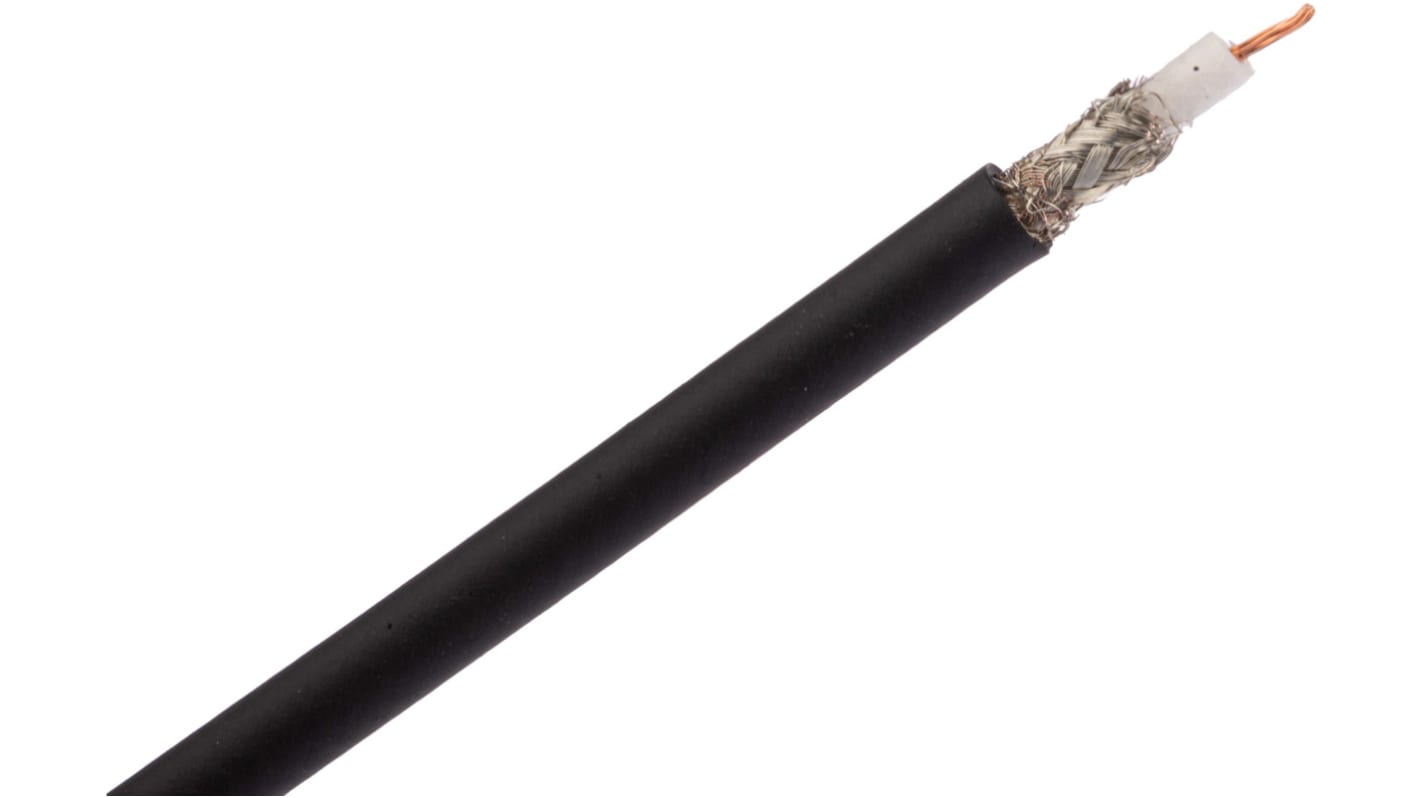

Belden Black Unterminated to Unterminated RG59/U Coaxial Cable, 75 Ω 6.15mm OD 305m

  • RS Stock No. 413-295
  • Mfr. Part No. 1505F B591000
  • Manufacturer Belden
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

1505F AES/EBU Digital Audio Coax RG-59/U Type Cable

Designed to perform in the most demanding SD\HD applications
Ideal for use in patch bays, mobile studio trucks and remote outdoor field applications
Bare copper compacted, stranded centre conductor optimises flexibility

Specifications
Attribute Value
Terminated/Unterminated Unterminated
Connector A Unterminated
Connector B Unterminated
Coaxial Type RG59/U
Characteristic Impedance 75 Ω
Outer Diameter 6.15mm
Sheath Colour Black
Conductor Strand Type Stranded
Attenuation 13.3 dB/100ft @ 1500MHz, 15.7 dB/100ft @ 2GHz, 16.9 dB/100ft @ 2250MHz, 20.3 dB/100ft @ 3GHz
Reel Length 305m
49 In Global stock for delivery within 4 - 6 working days
Price 1 Reel of 305 Metre(s)
MYR 4,352.01
Reel(s)
Per Reel
Per Metre*
1 +
MYR4,352.01
MYR14.269
*price indicative
