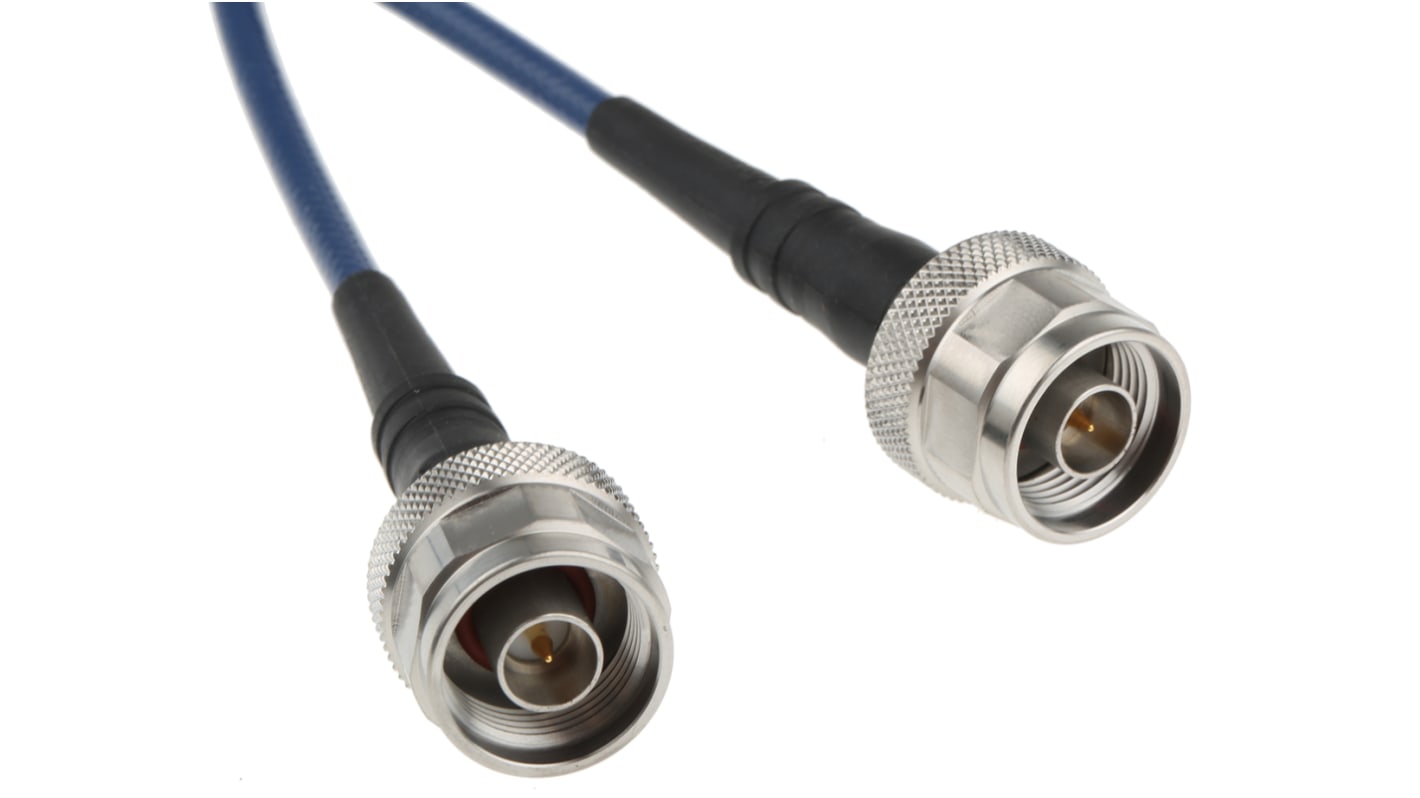

Huber+Suhner Male N Type to Male N Type Coaxial Cable, 914mm, Terminated
- RS Stock No.:
- 111-967
- Mfr. Part No.:
- ST-18/NM/NM/36
- Manufacturer:
- Huber+Suhner
18 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,096.42
| Units | Per Unit |
| 1 - 9 | MYR1,096.42 |
| 10 - 24 | MYR1,063.52 |
| 25 + | MYR1,031.62 |
- RS Stock No.:
- 111-967
- Mfr. Part No.:
- ST-18/NM/NM/36
- Manufacturer:
- Huber+Suhner
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
N plug to N plug Test Lead
Sucotest 18
SUCOTEST 18 assemblies are especially designed for applications that require repeated connection/disconnection procedures and where measurement cable wear is an issue.,Typical applications include: Test labs, Test procedures in components and assembly shops and automatic test equipment
Precise and constant measurement results
Unique handling due to newly designed N Nut
Short taper sleeve and cable that can be positioned without spring back
Low overall measurement cost
Unique handling due to newly designed N Nut
Short taper sleeve and cable that can be positioned without spring back
Low overall measurement cost
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Terminated |
| Connector 1 | N Type |
| Connector 2 | N Type |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Outer Diameter | 4.6mm |
| Characteristic Impedance | 50 Ω |
| Length | 914mm |
| Sheath Colour | Blue |
| Operating Temperature Range | -55 → +105 °C |
| Maximum Operating Temperature | +105°C |
| Insulation Material | FEP |
| Minimum Operating Temperature | -55°C |
