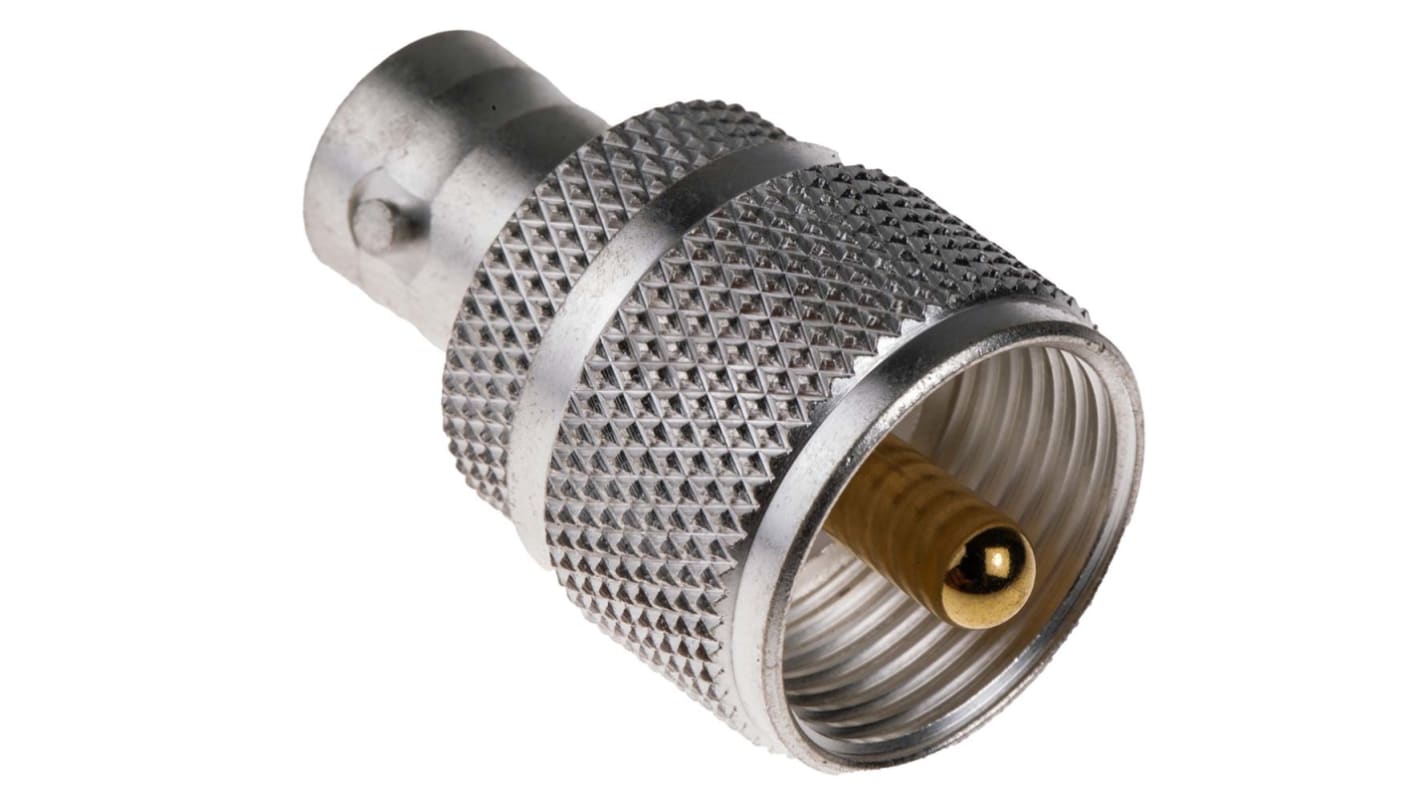

RS PRO Straight 50Ω RF Adapter UHF Plug to BNC Socket 300MHz
- RS Stock No.:
- 790-2818
- Manufacturer:
- RS PRO
54 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
247 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR76.64
| Units | Per Unit |
| 1 - 9 | MYR76.64 |
| 10 - 49 | MYR75.03 |
| 50 - 99 | MYR72.78 |
| 100 - 499 | MYR70.99 |
| 500 + | MYR58.42 |
- RS Stock No.:
- 790-2818
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS BNC/UHF RF Coaxial Adapters
A range of BNC/UHF 50 Ohm RF coaxial adapters with brass bodies, teflon insulators and gold plated centre contacts.
Stock number 790-2802 is a BNC plug to UHF jack adapter and has a nickel plated brass body and stock number 790-2818 is a UHF plug to BNC jack adapter and has a silver plated brass body.
Stock number 790-2802 is a BNC plug to UHF jack adapter and has a nickel plated brass body and stock number 790-2818 is a UHF plug to BNC jack adapter and has a silver plated brass body.
Features and benefits
- Impedance of 50 ohms
- Operating frequency of 200 MHz
- Straight shaped body
- Brass bodied with gold plated contacts and PTFE insulators
- UHF Plug to BNC Socket
Applications
Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;
- Test and measurement
- Communication systems
- GPS equipment
- Antennas
- Wi-fi equipment
- Aerospace
- Broadcast
- Audio and video
What is impedance?
Impedance is an electric current’s opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Specifications
Attribute | Value |
|---|---|
| Adapter Type | UHF Plug to BNC Socket |
| Adapter Type A | UHF |
| Adapter Type B | BNC |
| Gender A | Male |
| Gender B | Female |
| Impedance | 50Ω |
| Body Orientation | Straight |
| Operating Frequency | 300MHz |
| Contact Plating | Gold |
| Length | 30.5mm |
| Body Plating | Silver |
| Contact Material | Brass |
