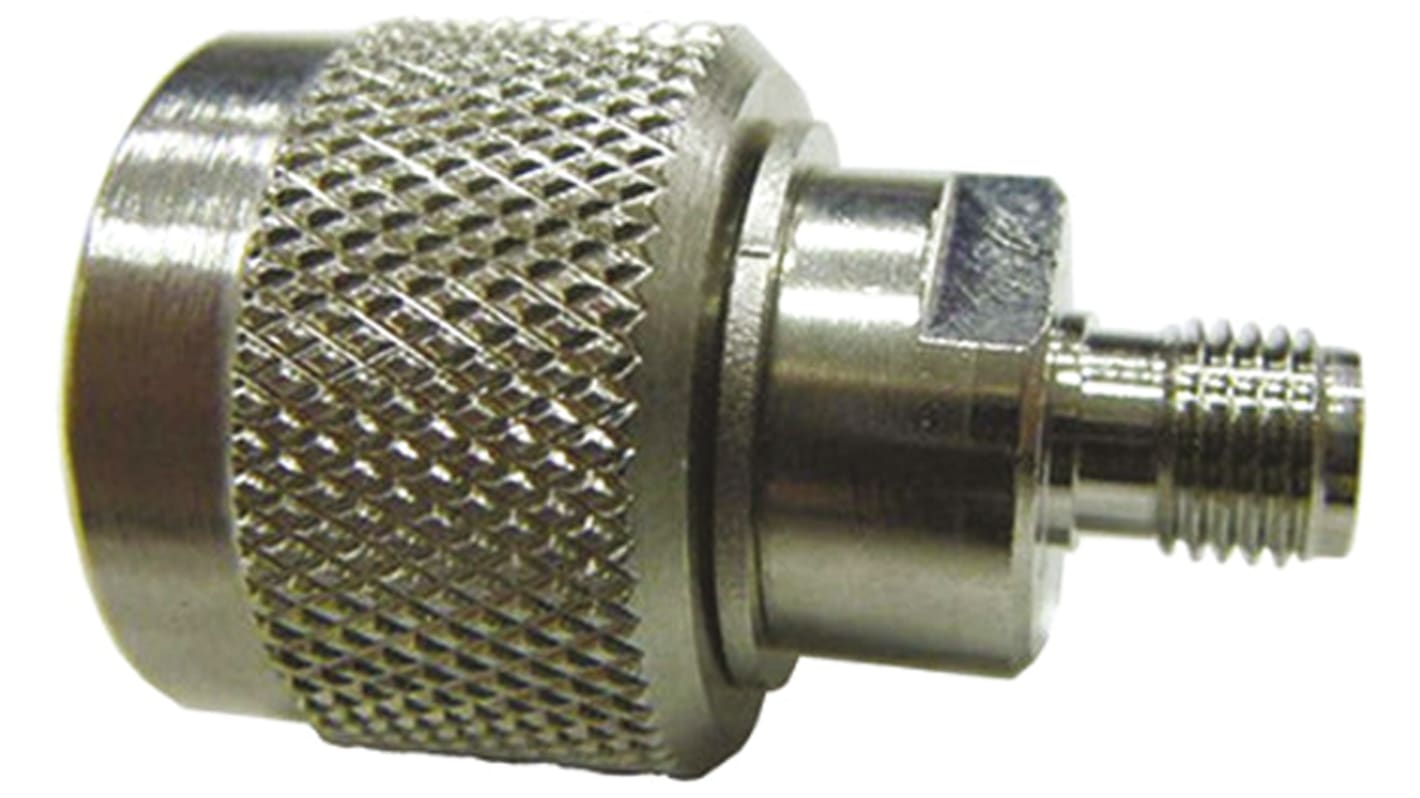

Straight 50Ω RF Adapter N Plug to SMA Socket 11GHz

  • RS Stock No. 758-1616
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

N Series Plugs and Adaptor Connectors

N series coaxial connectors designed for use from DC to 1 - 11 GHz (item specific), medium size with a threaded coupling. These N series connectors feature a low broadband VSWR which is ideal for use in aerospace , broadcast , audio and video applications as well as many microwave components such as filters, couplers, amplifiers and attenuators. These N series connectors are also impedance matched to 50Ω cables and the threaded coupling provides reliable mating in applications where vibration and shock resistance are design considerations.

Features and benefits

Nominal impedance 50Ω
Low broadband VSWR
Vibration proof coupling

Applications

Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;

  • Test and measurement

  • Communication systems

  • GPS equipment

  • Antennas

  • Wi-fi equipment

  • aerospace

  • Broadcast

  • Audio and video

What is impedance?

Impedance is an electric current’s opposition being measured when the voltage has been applied.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Note

For suitable cable refer too: 665-5886 (RG58), 521-5392 (RG142), 665-5836 (RG223) and 235-5453 (RG400). For suitable crimp tool see 683-1623 .

Standards

MIL-STD-348A

Specifications
Attribute Value
Adapter Type N Plug to SMA Socket
Adapter Type A N
Adapter Type B SMA
Gender A Male
Gender B Female
Impedance 50Ω
Body Orientation Straight
Operating Frequency 11GHz
Contact Plating Gold
Length 30.5mm
Body Plating Nickel
Contact Material Brass
Stock check temporarily unavailable - call for stock availability
Price Each
MYR 54.69
units
Per unit
1 - 14
MYR54.69
15 - 49
MYR53.08
50 - 99
MYR52.24
100 - 249
MYR51.45
250 +
MYR50.59
