Product Details

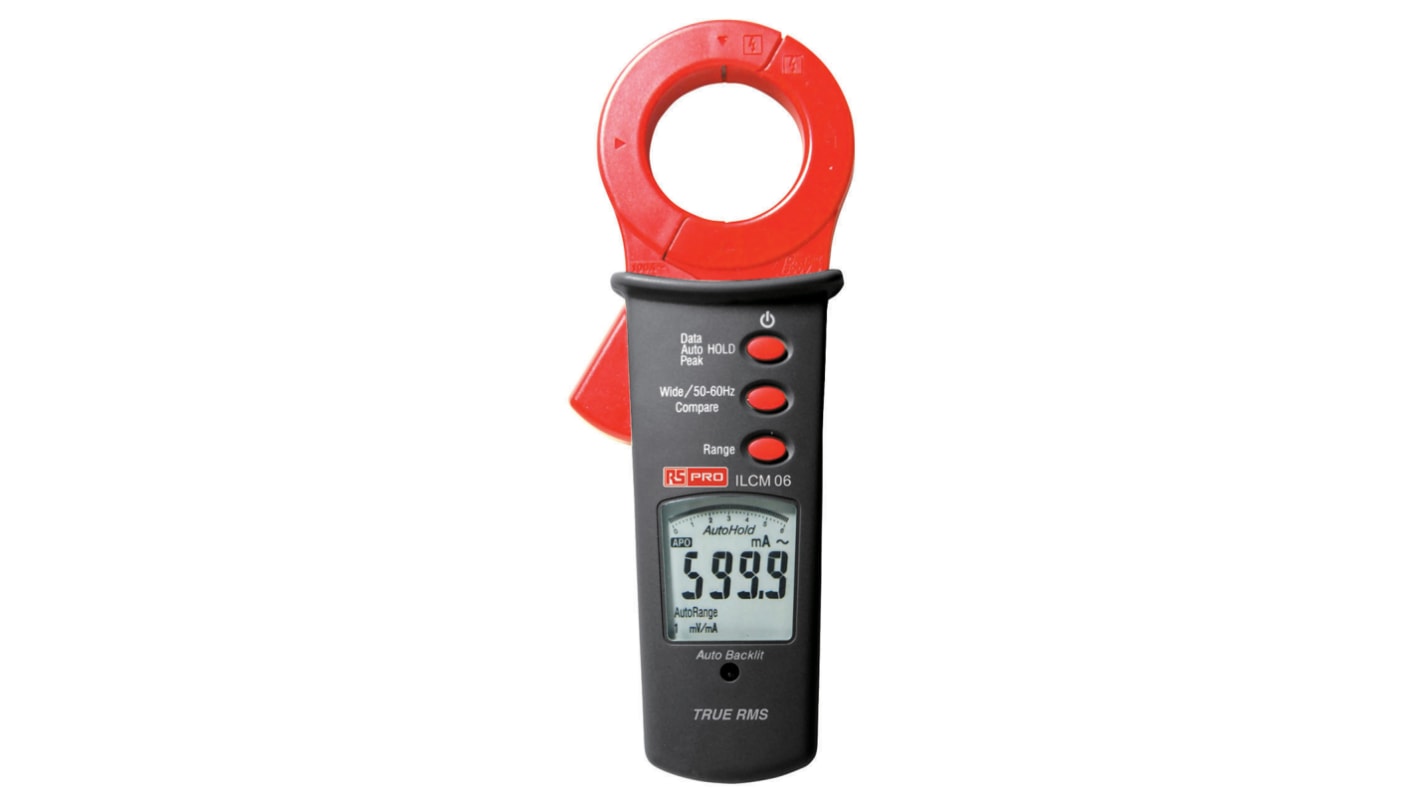

RS PRO Leakage Current Clamp Meter
The RS PRO ILCM 06R leakage current clamp meter is a great value leakage current clamp designed for safe, non-intrusive AC measurement up to 100A AC. It offers five ranges, with high-resolution 10μA on the 40mA range. The features include fast bar graph display of up to 30 times/second and a large jaw clamp. It includes carrying case, alkaline battery (installed), and a users manual.
Features and Benefits
True RMS
6000 count large-scale digital display
Analog bar graph
AC 0.001 mA resolution
Auto ranging
Auto hold
Data hold
Peak hold
Comparator
Low pass filter with high stability
Analogue output
Auto power off (disable)
Up to 40 mm dia. (750MCM) conductor size
4 feet drop proof
Deluxe carrying case
Hand guard and Streamline designed
Convenient battery door
Operating temperature ranges between 0°C and 50°C
6000 count large-scale digital display
Analog bar graph
AC 0.001 mA resolution
Auto ranging
Auto hold
Data hold
Peak hold
Comparator
Low pass filter with high stability
Analogue output
Auto power off (disable)
Up to 40 mm dia. (750MCM) conductor size
4 feet drop proof
Deluxe carrying case
Hand guard and Streamline designed
Convenient battery door
Operating temperature ranges between 0°C and 50°C
Applications
Petrochemical
Oil and gas
Food and beverage
Pharmaceutical
Oil and gas
Food and beverage
Pharmaceutical
Certifications
IEC 61010-1
CAT III 300V safety rated
CAT III 300V safety rated
Specifications
Attribute | Value |
---|---|
Absolute Maximum AC Current Measurement | 100A ac |
Model Number | ILCM06R |
AC Current Measurement Resolution | 1µA |
Clamp Meter Type | Leakage Clamp Meter |
Best AC Current Accuracy | ±(1% rdg + 8dgts) |
Jaw Capacity Busbars | 40mm |
True RMS | Yes |
Functions Measured | AC Current |
Maximum Operating Temperature | +50°C |
Safety Category | CAT III 300 V |
Dimensions | 78 x 42 x 203mm |
Battery Type | 1.5 V AAA, Alkaline |
Safety Category Level | CAT III |
Weight | 300 (with Battery)g |
Safety Category Voltage | 300V |
Power Source | Battery |
Battery Life | 60 h |
Maximum Conductor Size | 40 (Dia.)mm |
Minimum Operating Temperature | 0°C |
Length | 78mm |
Width | 42mm |
Height | 203mm |
