RS PRO ICM136R Clamp Meter, Max Current 600A ac, 600A dc CAT II 1000 V, CAT III 600 V

  • RS Stock No. 123-3222
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

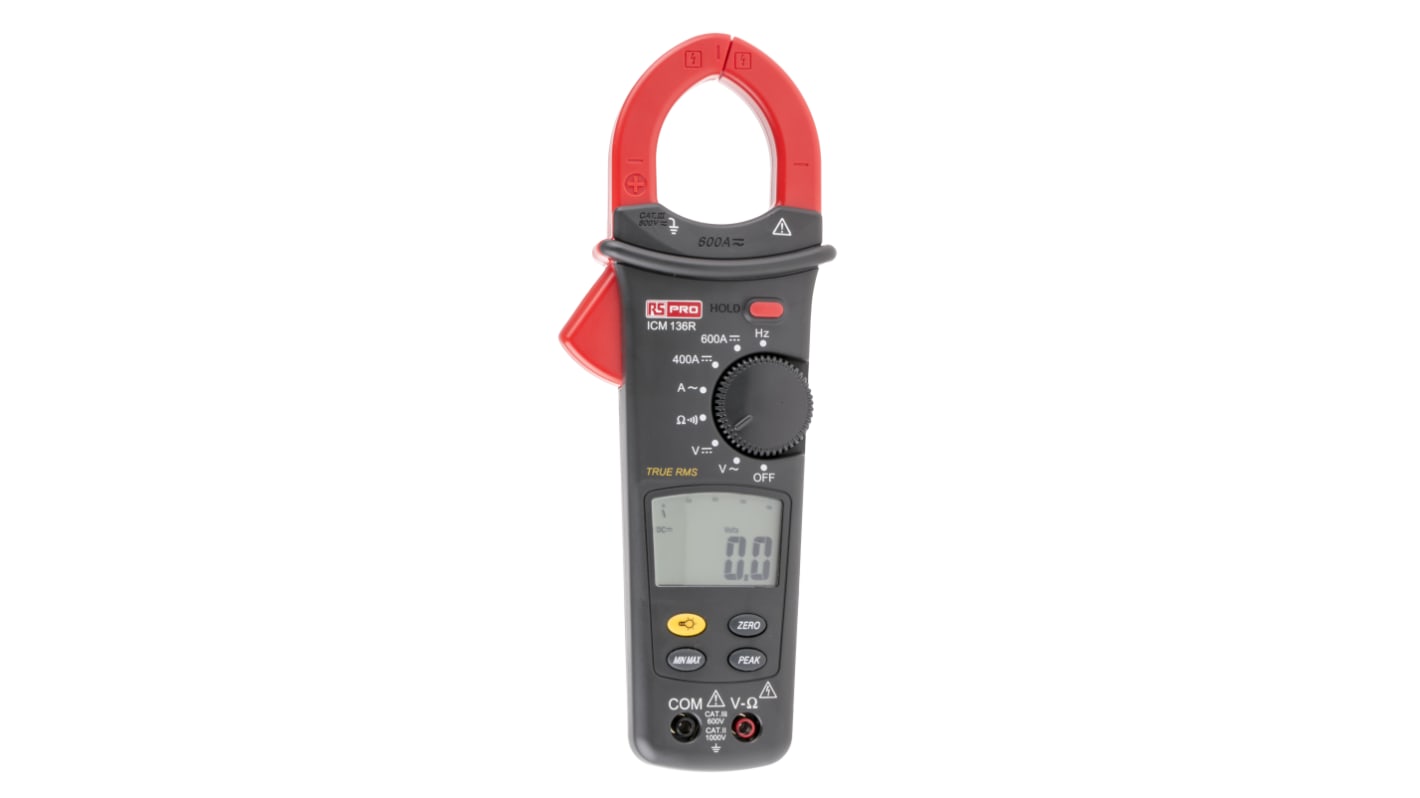

RS Pro ICM136R True RMS Clampmeter

From the trusted RS PRO brand, this ICM 136R clamp meter has true RMS reading to ensure accurate current measurement. It utilises Hall Effect technology and features nickel steel alloy jaws for precise measurement of ac and dc current up to 600 A.

Battery-powered for maximum portability, and with a large backlit screen, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.

It is also supplied in a carry case to keep the clampmeter safe and secure during transit.

Features and Benefits

• Backlit 4000 Count LCD display with analogue bar graph
• True RMS Reading on ac mode
• 600 A ac/dc current measurement
• 600 V ac/dc voltage measurement
• Resistance measurement with continuity beeper
• Display hold & peak hold (10 ms)
• Maximum Conduct Size of 35 mm diameter
• Maximum Busbar Size: 40 ' 15 mm
• DCA zeroing key
• Min/max function
• Frequency counter
• Auto power off

Applications

This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC and DC Current. This has the advantage of allowing electricians to take a reading from a wire without touching it, which is both more convenient and safer than other methods.

True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.

This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Standards

EN61010 CAT. III 600 V

Supplied with

Test leads, battery, carry case and instructions

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 600A ac
Absolute Maximum DC Current Measurement 600A dc
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 400Ω
Model Number ICM136R
AC Current Measurement Resolution 100mA
DC Current Measurement Resolution 100mA
Best DC Current Accuracy ±(1.9% rdg + 5dgts)
Clamp Meter Type Multifunction Clamp
Best AC Current Accuracy ±(1.9% rdg + 5dgts)
Best AC Voltage Accuracy ±(1% rdg + 5dgts)
Best DC Voltage Accuracy ±(0.7% rdg + 2dgts)
AC Voltage Measurement Resolution 100mV
Maximum Conductor Size 35 (Dia.)mm
Battery Life 300 h
Power Source Battery
Jaw Capacity Busbars 35mm
Weight 380g
Safety Category Level CAT II, CAT III
Width 51mm
Length 78mm
Resistance Measurement Resolution 100mΩ
Dimensions 78 x 51 x 235mm
DC Voltage Measurement Resolution 100mV
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
True RMS Yes
Minimum Operating Temperature 0°C
Height 235mm
Safety Category CAT II 1000 V, CAT III 600 V
Best Resistance Measurement Accuracy ±1% + 3 Digits
Display Type LCD
Maximum Operating Temperature +50°C
Battery Type IEC 6F22, NEDA 1604, 9V
Safety Category Voltage 600 V, 1000 V
