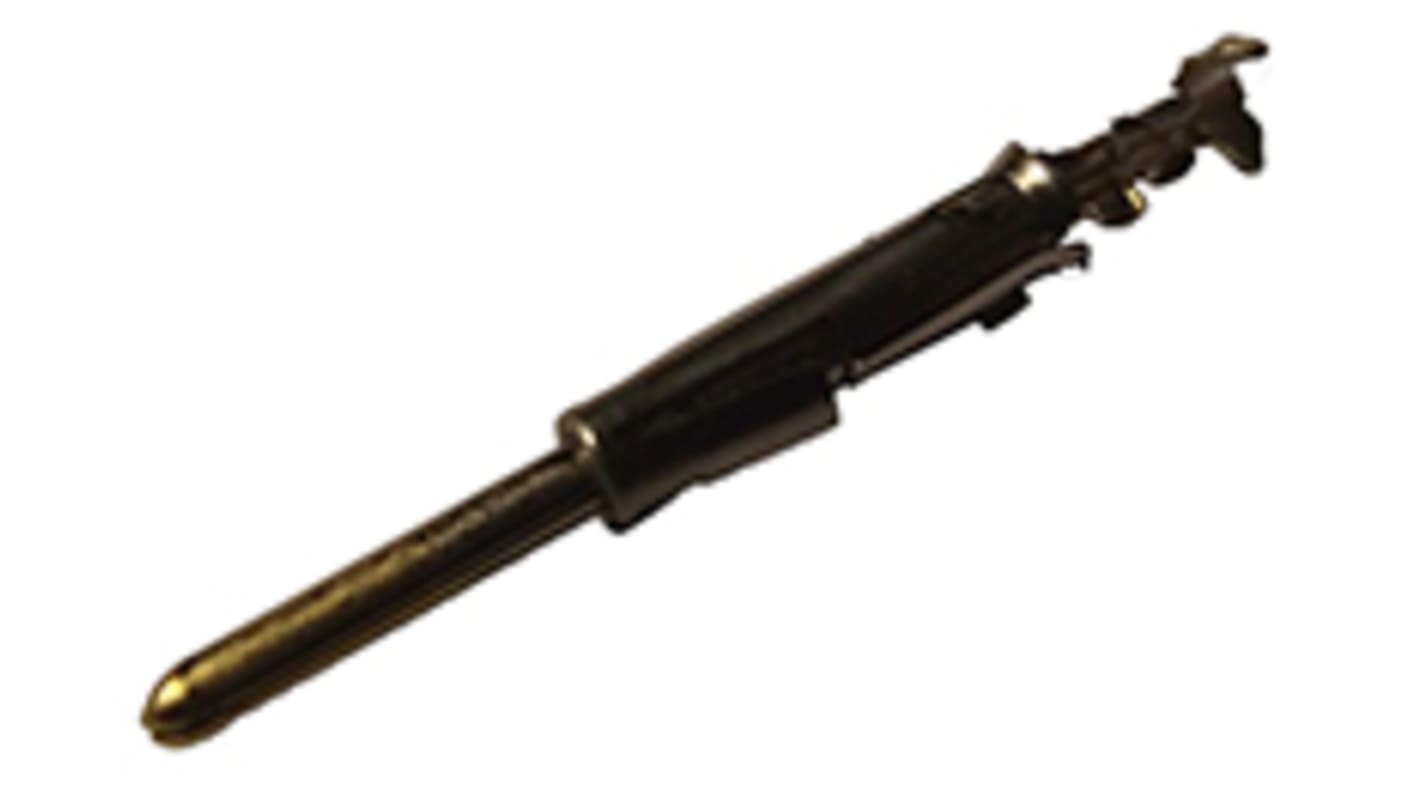

Souriau SM Series, size 16 13A Male Crimp Circular Connector Contact, Wire size 24 AWG

  • RS Stock No. 912-0623
  • Mfr. Part No. SM24M1S31
  • Manufacturer Souriau
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Trim Trio Stamped and Formed Contacts

A comprehensive range of crimp contacts suitable for any connector from the Trim Trio range of connectors, encompassing MSM-MSG -MB rectangular connectors, SMS Qikmate connectors, UTO - UTS - UTL - UTG and UTP - MBG series circular connectors. Featuring a copper alloy contact body and stainless steel outer spring.

Two piece construction with dual purpose spring which serves for contact retention and protects the body against damage
Suitable for high volume installation

Note

For wire only crimp contact.For use with Souriau SHANDLES crimp hand tool and a selection of crimp die sets including S16SCM20, S16SCML11, S16SCML1

Souriau UTS

Specifications
Attribute Value
Gender Male
Contact Size 16
Wire Size 24 AWG
Termination Method Crimp
Series SM
For Use With MBG Series Connector, Msx Series Connector, SMS Series Connector, SMSIP Series Connector, UTG Series Connector, UTL Series Connector, UTO Series Connector, UTP Series Connector, UTS Series Connector, UTV Series Connector
Current Rating 13A
Contact Plating Gold over Nickel
Voltage Rating 750 V ac
Contact Material Copper Alloy
Maximum Contact Resistance 6mΩ
Mounting Type Cable Mount
5 In Global stock for delivery within 4 - 6 working days
Price 1 Reel of 3000
MYR 3,603.05
Reel(s)
Per Reel
Per unit*
1 - 4
MYR3,603.05
MYR1.201
5 +
MYR3,409.04
MYR1.136
*price indicative
