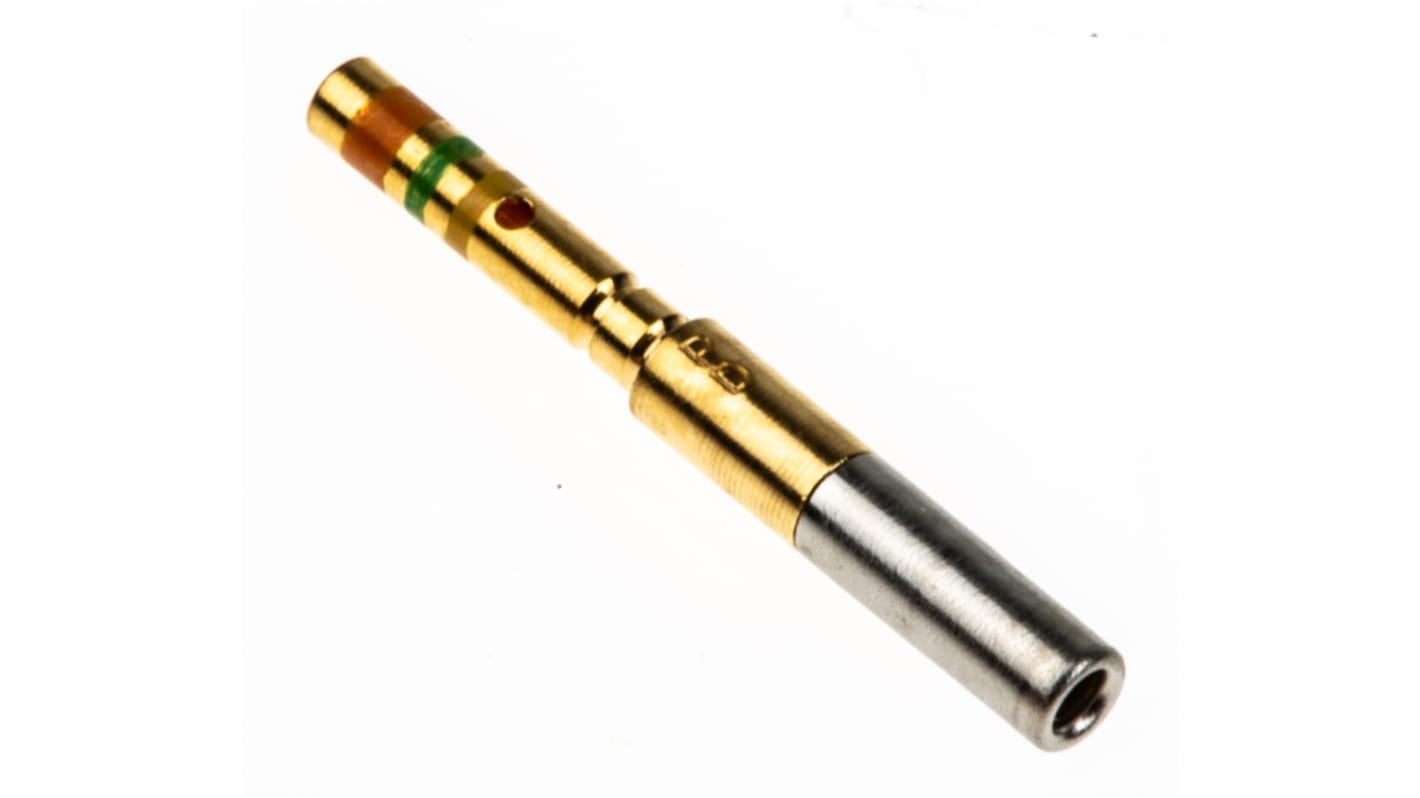

Amphenol Socapex M39029 Series, size 22D 5A Female Crimp Contact for use with D38999 Circular Connector

  • RS Stock No. 762-0689
  • Mfr. Part No. M39029/57-354
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

LJT Series MIL-DTL-38999 series I,II Crimp Contacts

A range of MIL-DTL-38999 series I and II crimp contacts suitable for use with the LJT range of mil spec connectors and other connector types that adhere to MIL-DTL-38999 specifications.

Note

For associated connectors see: 205-3359 , 205-3270 , 205-3488 , 715-9815 , 205 -3422 , 715-9761 , 715-9869 and associated ranges.

LJT Series professional connectors (HE 308)

Robust subminiature connectors designed to meet professional equipment I/O interconnection requirements.
LJT connectors ensure safe electrical and mechanical use, in accordance with the MIL-C 38999 Series I (HE 308) standard.
Bayonet snap-lock latch.
Scoop-proof male contact mechanical protection.
The standard rear threading allows cable connectors or cable glands to be fitted, and ensures earthing continuity with the cable braid.
Contacts must be crimped with pliers
M 22520//1-01 (for sizes 20 and 16) or M 22520//2-01 (sizes 20 and 22D), fitted with the corresponding positioners.

Specifications
Attribute Value
Gender Female
Contact Size 22D
Termination Method Crimp
Series M39029
For Use With D38999 Circular Connector
Current Rating 5A
Contact Plating Gold over Nickel
Minimum Operating Temperature -65°C
Maximum Operating Temperature +125°C
Mounting Type Cable Mount
25 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 25)
MYR 1.84
units
Per unit
Per Pack*
25 - 100
MYR1.84
MYR46.00
125 - 600
MYR1.805
MYR45.125
625 - 1225
MYR1.773
MYR44.325
1250 - 2475
MYR1.737
MYR43.425
2500 +
MYR1.699
MYR42.475
*price indicative
