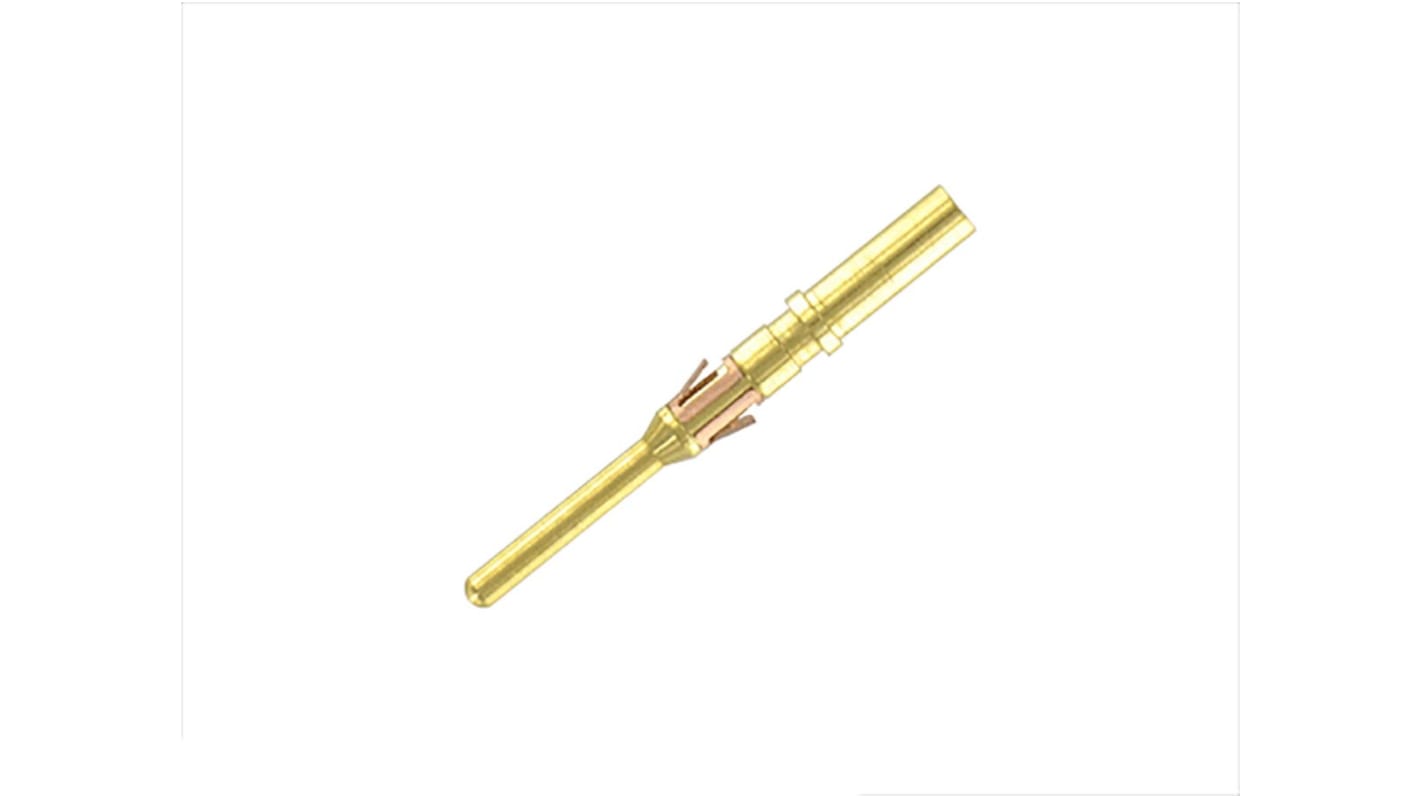

Souriau TRIM TRIO RM Series, size 16 13A Male Crimp Contact for use with Trim Trio Connectors

  • RS Stock No. 687-6364
  • Mfr. Part No. RM28M1K
  • Manufacturer Souriau
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Machined Contacts and Tooling

Suitable for UTO Series (size 16) and UTOW Series (size 20)

Solid machined or stamped crimp and solder pins and sockets
Support crimp tool and positioner

Note

TRIM TRIO® RC/RM machined contact size 16 can be used in any contact position in any connector from the TRIM TRIO® interconnection system: UTP, UTS, UTG, UTO, MBG, MS-M, MSG / MB, SMS, UTV, as well as in VGE1 and 838 connectors

Souriau UTS

Specifications
Attribute Value
Gender Male
Contact Size 16
Wire Size 30 → 28 AWG
Termination Method Crimp
Series TRIM TRIO RM
For Use With Trim Trio Connectors
Contact Type Signal
Current Rating 13A
Length 26.2mm
Contact Plating Gold over Nickel
Contact Material Copper Alloy
Maximum Contact Resistance 3mΩ
Mounting Type Cable Mount
460 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 3.65
units
Per unit
Per Pack*
10 - 40
MYR3.65
MYR36.50
50 - 240
MYR3.536
MYR35.36
250 - 490
MYR3.418
MYR34.18
500 - 990
MYR3.295
MYR32.95
1000 +
MYR3.169
MYR31.69
*price indicative
