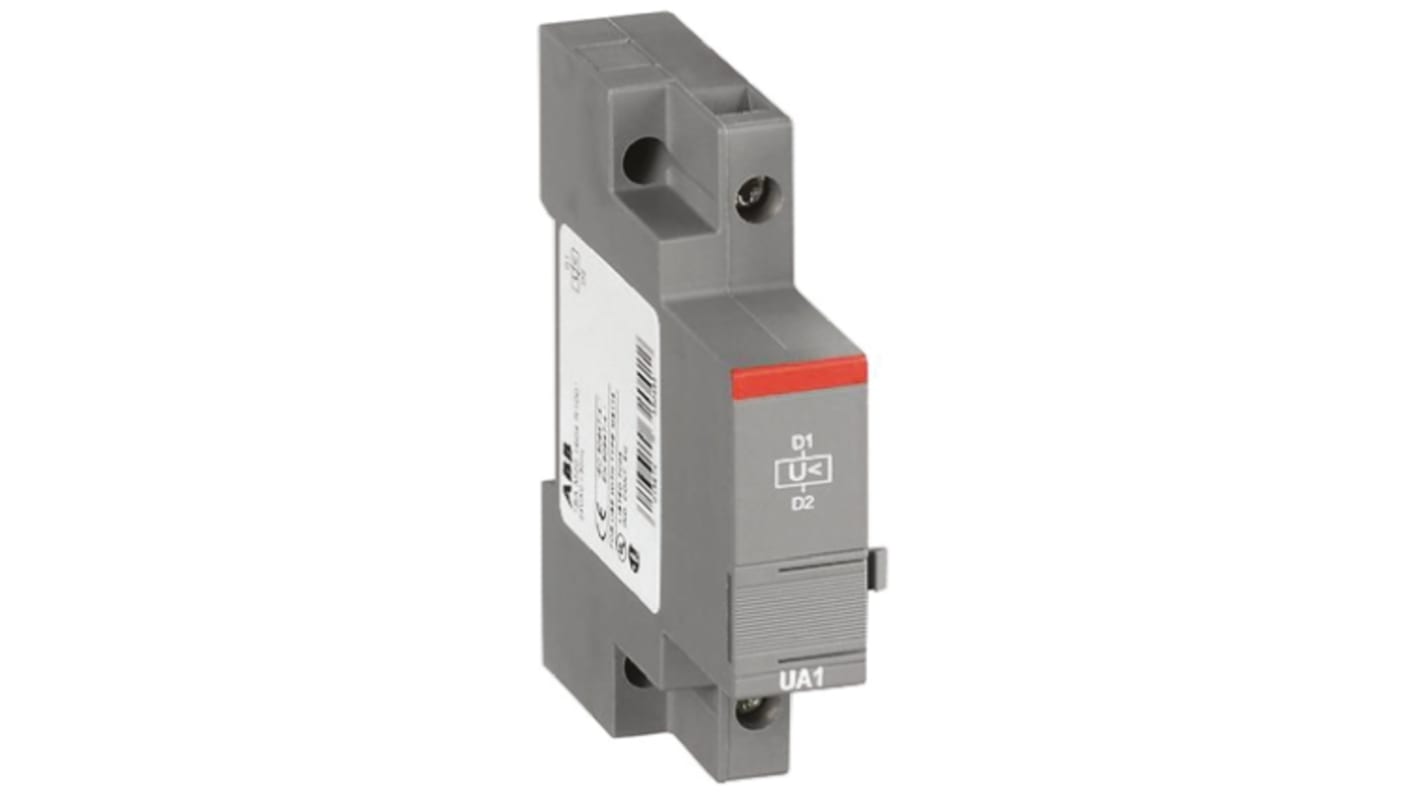

230 V, 240 V Undervoltage Release Circuit Trip for use with MS116 Series

  • RS Stock No. 465-0738
  • Mfr. Part No. UA1-230
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

MS 116 - Motor circuit breaker

Economic, fuseless contactor for drives → 7.5 kW
Thermal and electromagnetic resolution
Lockable, usable as a separator (to IEC/EN 60947-1)
Short-circuit proof → 50 kA
With phase loss sensitivity
Temperature compensated
Modern twist-grip movements for a clear switching position display
Low storage costs, only 11 current ranges → 16 A
Width 45 mm

Accessories:

HKF1 - auxiliary switch, for front installation
HK1 - auxiliary switch, for installation on right side
SK1 - signal contact for general tripped messages, installation on right side
IB116 - insulating material housing IP65
QES 4/3N - insulating material housing IP55
SMO 4 - bus terminal for N or PE, for QES 4/3 N housing
UA1-230- undervoltage trigger, installation on left side

Approvals

  UL, CSA, ship approvals

//media.rs-online.com/t_line/LF445029-02.gif
Specifications
Attribute Value
Current Rating 16 A
Series MS116
For Use With MS116 Series
Type Undervoltage Release
Rated Control Voltage 230 V, 240 V
2 Within 4 working day(s) (Global stock)
4 Within 4 working day(s) (Global stock)
Price Each
MYR 171.78
units
Per unit
1 - 4
MYR171.78
5 - 9
MYR168.39
10 +
MYR166.65
