SEGGER Flasher Portable PLUS, Development Kit for FLASH microcontrollers
- RS Stock No.:
- 136-7686
- Mfr. Part No.:
- 5.16.02
- Manufacturer:
- SEGGER
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR8,628.78
| Units | Per Unit |
| 1 - 4 | MYR8,628.78 |
| 5 + | MYR8,456.22 |
- RS Stock No.:
- 136-7686
- Mfr. Part No.:
- 5.16.02
- Manufacturer:
- SEGGER
Technical data sheets
Legislation and Compliance
Product Details
Flasher Portable PLUS Programmer
Flasher Portable PLUS has been designed to fill the need for a portable, battery-operated production-grade Flash memory programmer used for in-field firmware updates. Initial setup/preparation for stand-alone mode operation is done via the J-Flash software. It supports storage of multiple configurations/image files, so one unit can be used for different targets. The Flasher Portable PLUS represents a significant upgrade to its predecessor, the Flasher Portable.
Supported Processors
• ARM 7/9/11
• ARM Cortex-A5/A7/A8/A9/A12/A15/A17
• ARM Cortex-M0/M0+/M1/M3/M4/M7
• ARM Cortex-R4/R5
• Freescale e200z0 (PowerPC)
• Renesas RX610/RX621/RX62G/RX62N/RX62T/RX630/RX631/RX63N/RX63T
Features
• Stand-alone in-circuit-programmer
• Powered by 680mAh rechargeable Li-Ion battery or USB
• Up to 10 hours programming with one battery charge
• Stores up to eight configurations/data files
• 1.8in LCD panel for display of programming status
• Pushbutton selects between stored images/configurations
• 128MB memory for configuration and data file storage
• Supports internal and external Flash devices
• Data files can be updated via mass storage or via J-Flash
• Host interface: USB 2.0
• Target interfaces: 20-pin JTAG/SWD/FINE/SPD
• Programming speed typically between 30KB/sec and 1MB/sec
• Max programming speed depends on target hardware and max programming speed of the Flash memory
• Authorized Flashing limits number of programming cycles and protects against non-authorized access
• Dimensions: 126 x 70 x 28mm
• Free software updates, 1 year of support

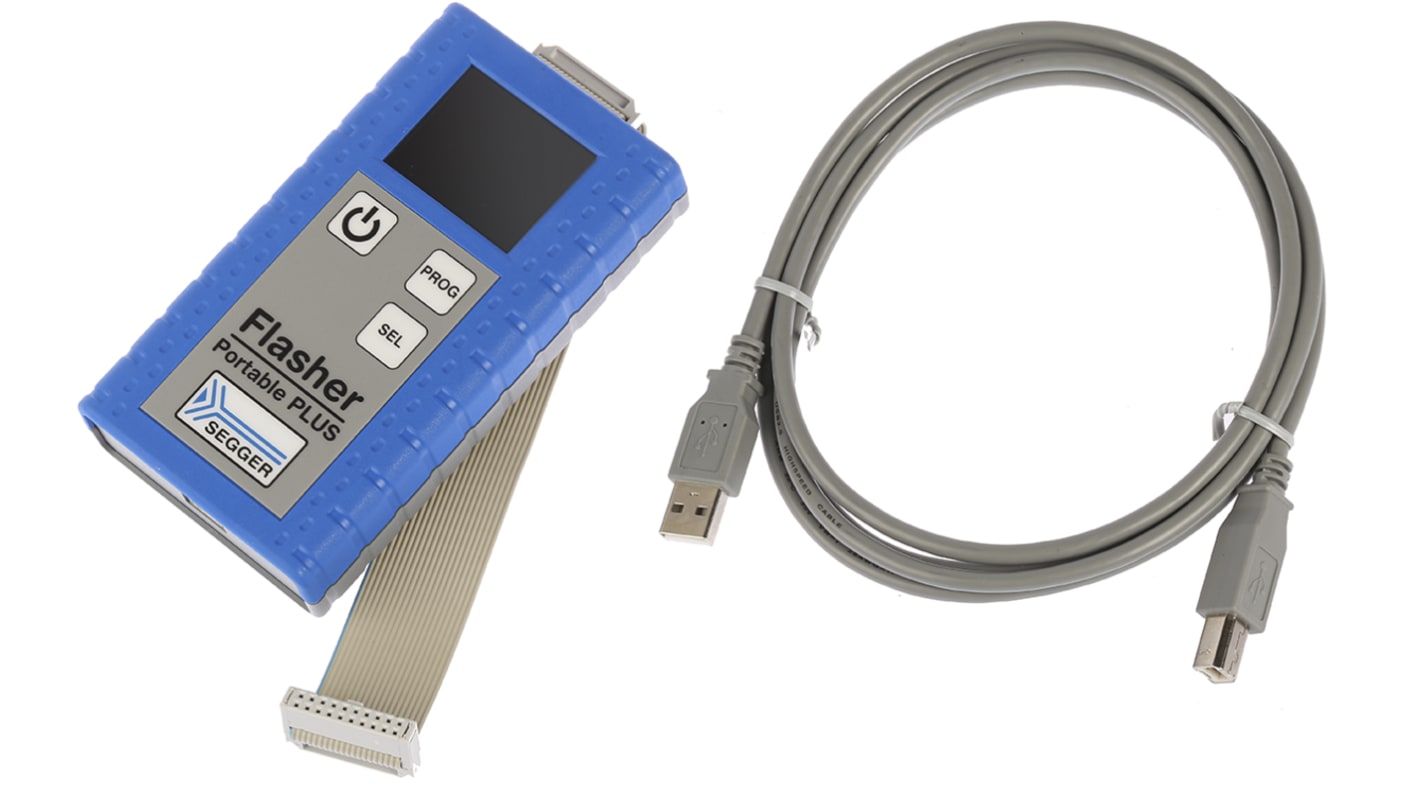

Supplied with
20-pin 0.1in target ribbon cable, USB cable
Specifications
Attribute | Value |
|---|---|
| Accessory Type | Development Kit |
| For Use With | FLASH microcontrollers |
| Programmer Name | Flasher Portable PLUS |
