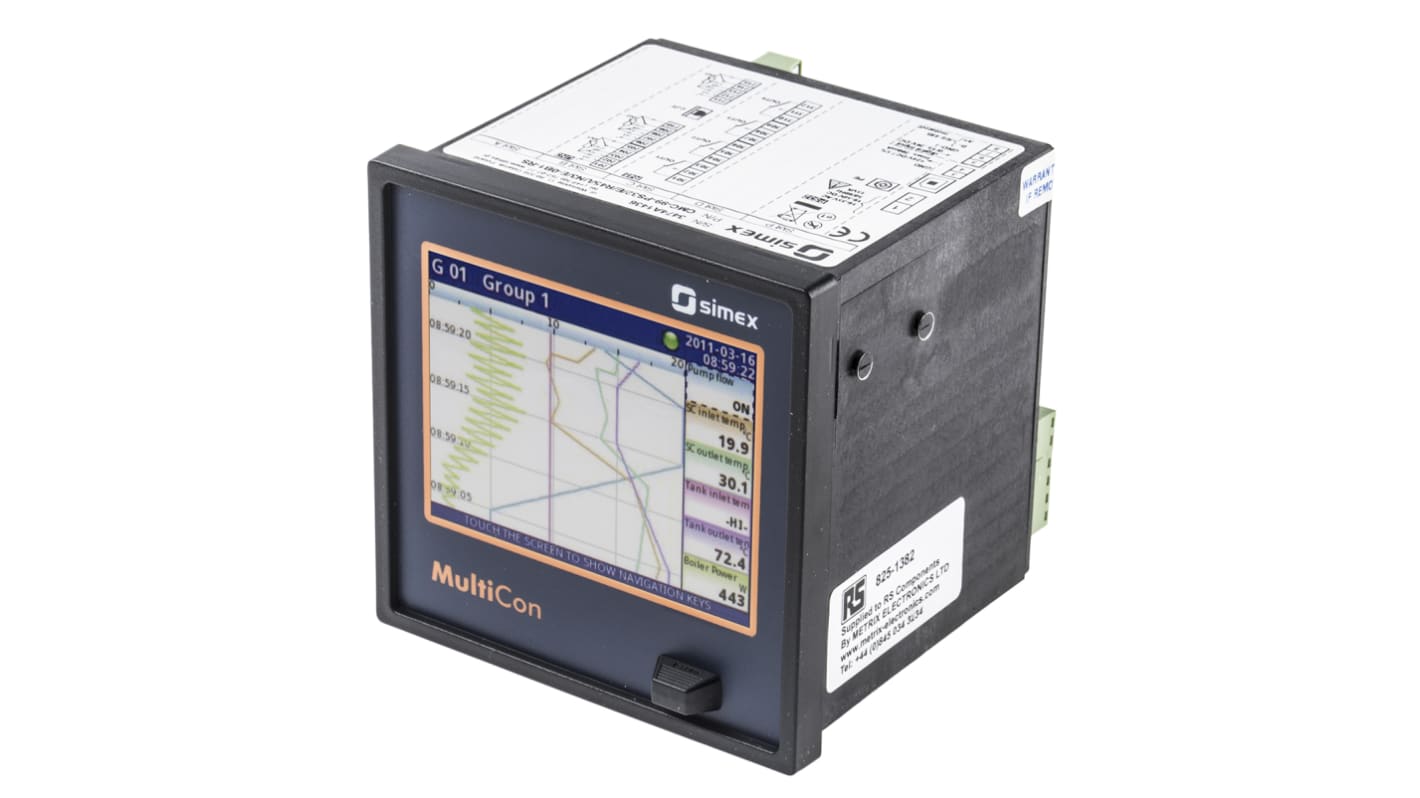

Simex SX-CMC99-04F0, 4 Channel, Multichannel Controller Chart Recorder

  • RS Stock No. 825-1382
  • Mfr. Part No. SX-CMC99-04F0-RS
  • Manufacturer Simex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

SX-CMC99 - MultiCon Data Recorder

The CMC-99 Indicator/Controller/Recorder is equipped with a 3.5" LCD touchscreen, 3 physical measurement input and 1 digital input. Casing depth is only 102 mm.
The MultiCon CMC-99 is a powerful and versatile compact-multichannel-controller with a capability to record data if the recording function is requested and activated. Thanks to that, it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive.

• Measurement Inputs: 3 analogue “universal” inputs for current or voltage or RTD or thermocouple or resistance – fully isolated
• Digital Inputs: 1 digital
• Outputs: 4 relay 5A/250V SPDT
• Display: 3.5 in graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen
• Communication interface standard: RS-485 (Modbus RTU), 1 x USB Host
• Available data recording speed: from, 0.1 s to 24 h with resolution 0.1 s
• Internal memory capacity: 1.5 GB
• Operating temperature: 0°C ÷ +50°C
• Storage temperature -10°C ÷ +70°C
• Case dimensions 96 x 96 x 100 mm
• Protection class: version with front USB: IP 40
• Panel cut-out dimensions: 90.5 x 90.5 mm
• Installation depth: 102 mm
• Installation Panel Thickness: 5 mm max
• Frontal USB Port allows for connection of keyboard and mouse for preference

Simex

Specifications
Attribute Value
Chart Type Multichannel Controller
Parameter Measured Current, Resistance, Temperature, Voltage
Maximum Current Measurement 20mA
Maximum Voltage Measurement 10V
Recorder Input Type RTD, Thermocouple
Number of Inputs 4
Number of Outputs 4
IP Rating IP40
Width 100mm
Length 96mm
Maximum Operating Voltage 35 V ac, 50 V ac/dc
Dimensions 96 x 96 x 100mm
Height 96mm
Model Number p SX-CMC99-04F0
Minimum Operating Voltage 16 V ac, 19 V ac/dc
3 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 6,661.23
units
Per unit
1 +
MYR6,661.23
